Seat - Second Row

SEAT - SECOND ROW

Exploded View

Second Row, 60 Percent E-Z Entry Backrest (Part 1):

Second Row, 60 Percent E-Z Entry Backrest (Part 2):

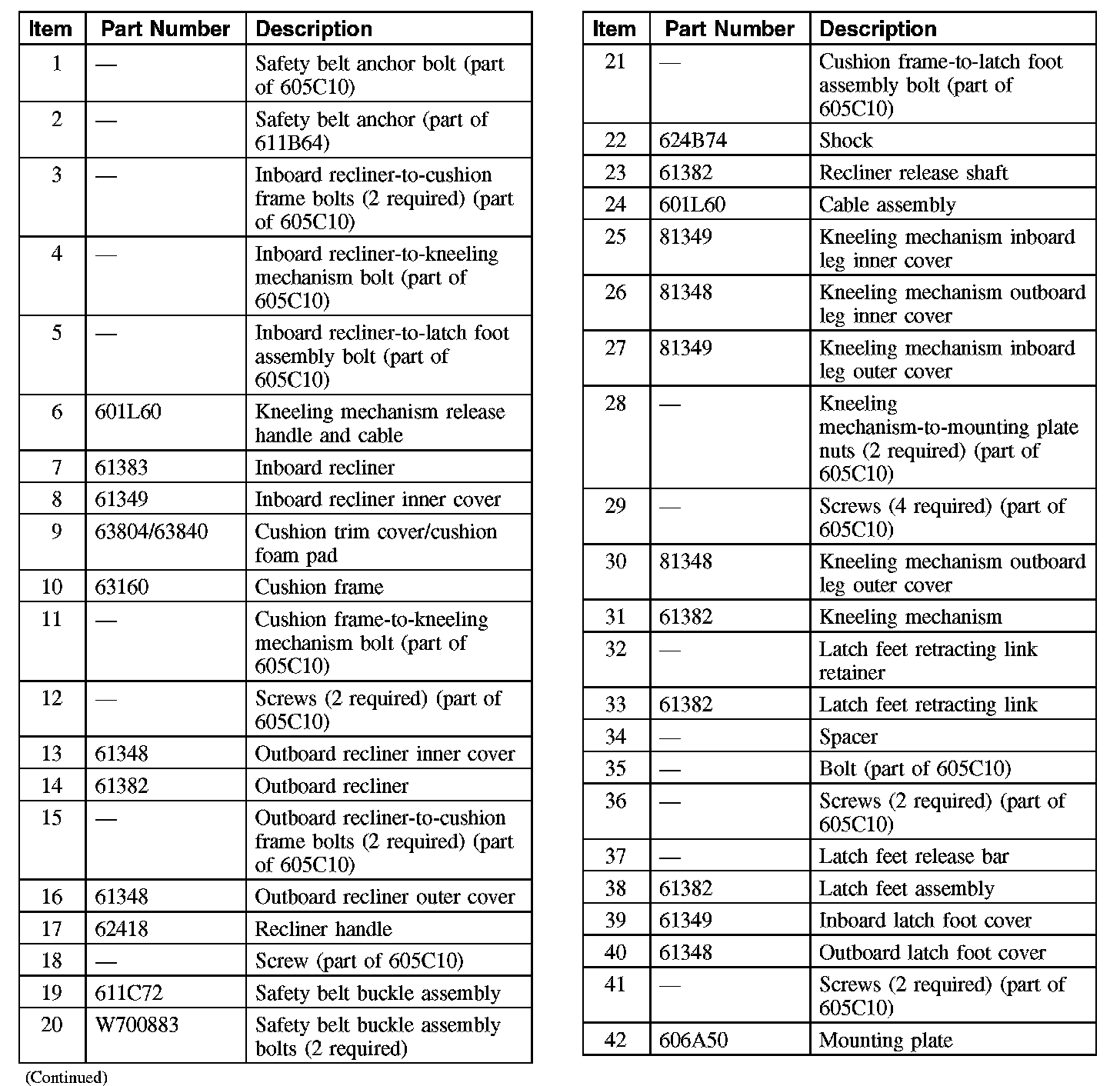

Second Row, 60 Percent, E-Z Entry Cushion (Part 1):

Second Row, 60 Percent, E-Z Entry Cushion (Part 2):

Second Row, 40 Percent E-Z Entry Backrest:

Second Row, 40 Percent, E-Z Entry Cushion (Part 1):

Second Row, 40 Percent, E-Z Entry Cushion (Part 2):

Second Row, Bucket, Backrest:

Second Row, Bucket, Cushion (Part 1):

Second Row, Bucket, Cushion (Part 2):

Second Row, 60 Percent Bench, Backrest:

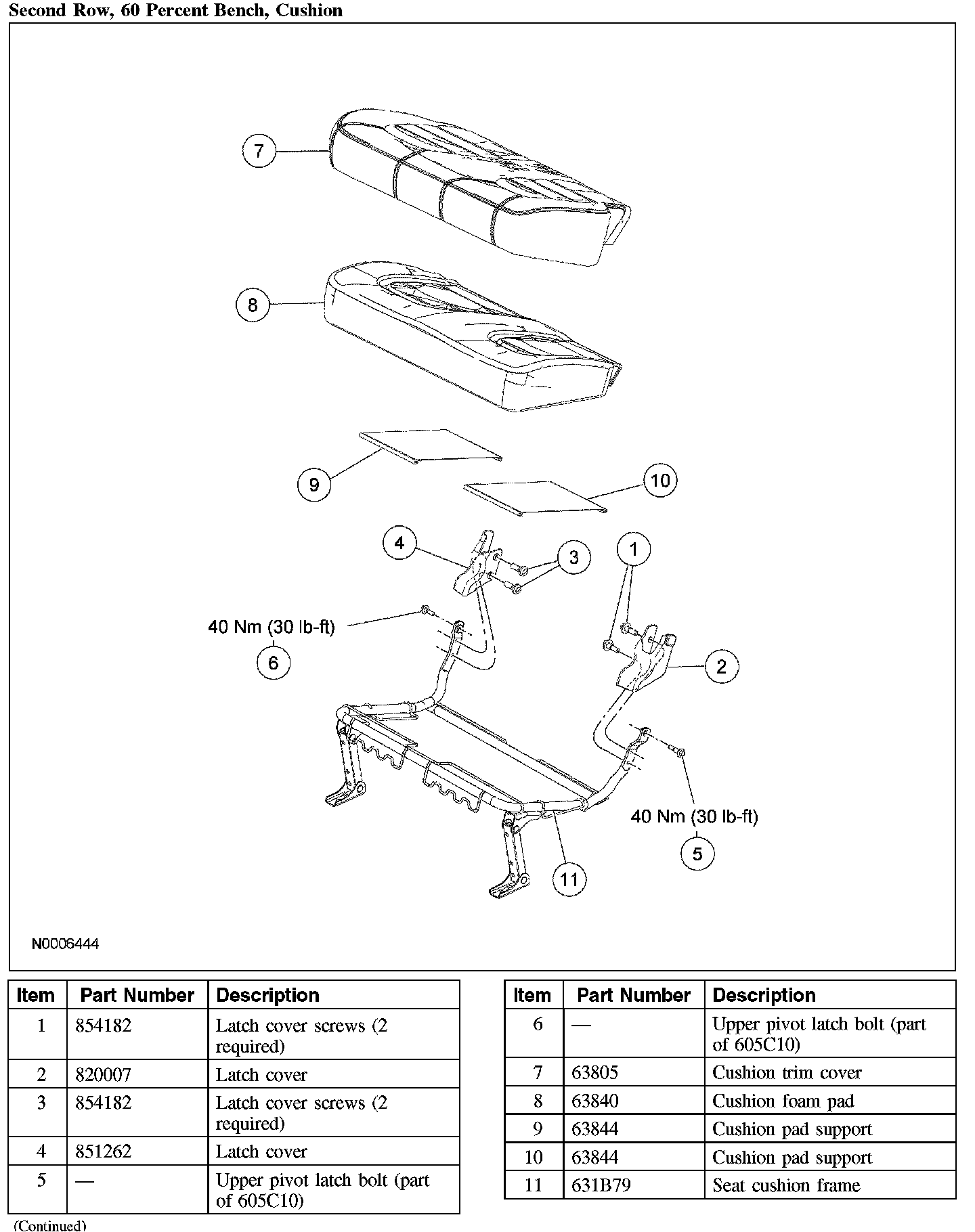

Second Row, 60 Percent Bench, Cushion:

Second Row, 40 Percent Bench, Backrest:

Second Row, 40 Percent Bench, Cushion:

Material

Material:

40 Percent Seat:

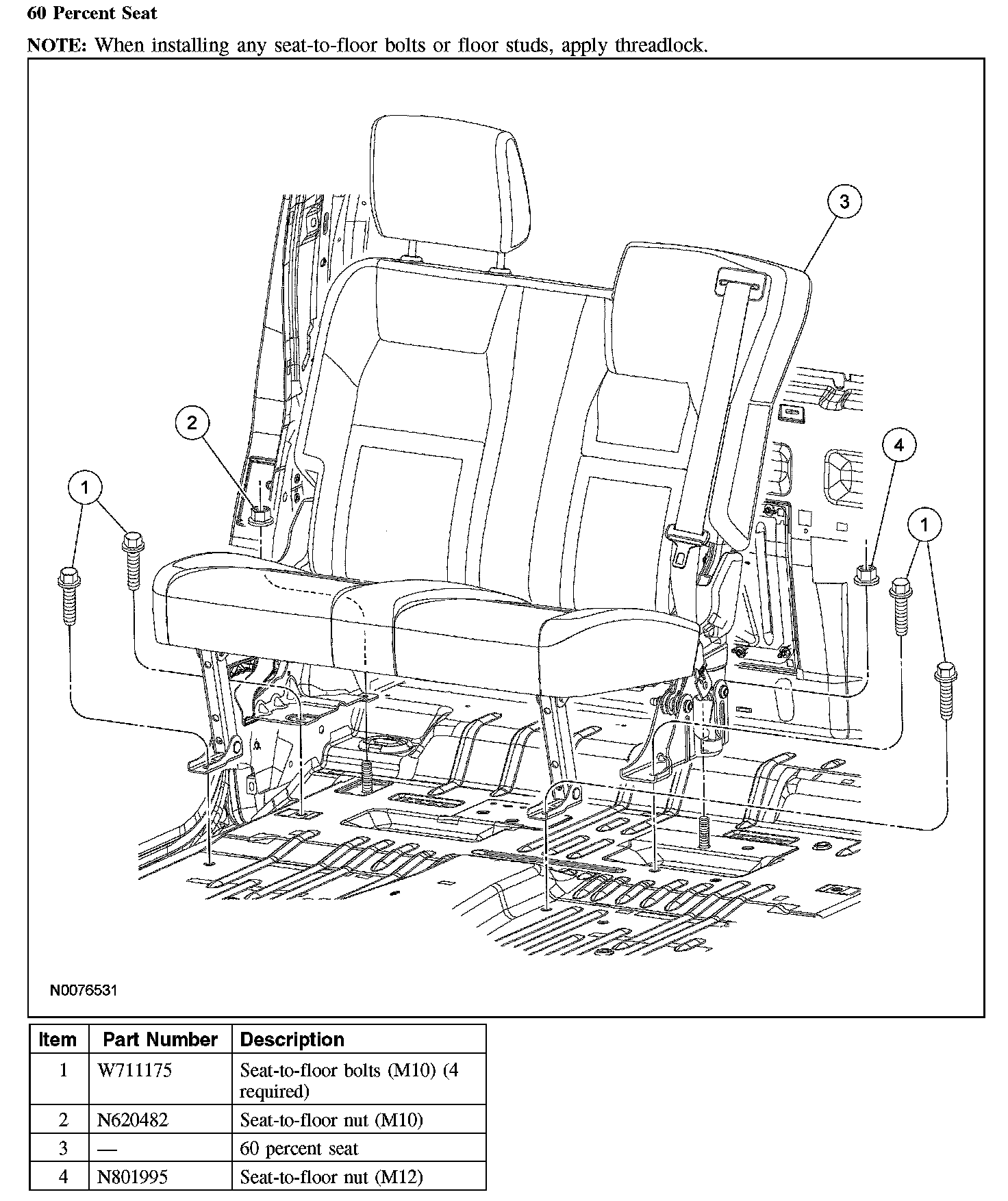

60 Percent Seat:

Removal

NOTE:
- When removing the 60 percent seat, the 40 percent seat must be removed first to gain access to the 60 percent seat-to-floor fasteners.
- Late build vehicle 60 percent seats will have an upper latch that clasps around a striker on the cab back wall. This has to be released before the seat can be removed.

40 and 60 percent seats
1. Remove the 40 percent seat front seat-to-floor retainers.
2. With the 40 percent seat in the normal sitting position, lift the seat cushion up for access to the 40 percent seat rear retainers.
3. Remove the rear retainers and 40 percent seat from the vehicle.

60 percent seat
4. Remove the 60 percent seat front seat-to-floor retainers.
5. With the 60 percent seat in the normal sitting position, lift the seat cushion up for access to the 60 percent seat rear retainers.
- Pull the safety belt buckles through the 60 percent seat cushion opening.

6. Remove the 60 percent seat-to-floor rear retainers.
- For early build vehicles, remove the 60 percent seat from the vehicle.

7. For late build vehicles, turn the release handle, releasing the outboard and upper latches and fold the backrest forward.
- Remove the 60 percent seat from the vehicle.







Installation

60 percent seat
1. Position the 60 percent seat in the vehicle.
2. Tighten the retainers in the following sequence.
1 Tighten to 40 Nm (30 lb-ft).
2 Tighten to 55 Nm (41 lb-ft).
3 Apply threadlock and tighten to 40 Nm (30 lb-ft)
4 Apply threadlock and tighten to 40 Nm (30 lb-ft)
5 Apply threadlock and tighten to 40 Nm (30 lb-ft)
6 Apply threadlock and tighten to 40 Nm (30 lb-ft)







3. Position the safety belt buckles through the 60 percent seat cushion opening.
4. Position the backrest upright and make sure the outboard and upper latches lock the backrest in the upright position.

40 and 60 percent seats
5. Position the 40 percent seat in the vehicle.
6. Tighten the retainers in the following sequence.
1 Apply threadlock and tighten to 40 Nm (30 lb-ft)
2 Apply threadlock and tighten to 55 Nm (41 lb-ft).
3 Tighten to 40 Nm (30 lb-ft).
4 Apply threadlock and tighten to 40 Nm (30 lb-ft)
5 Apply threadlock and tighten to 40 Nm (30 lb-ft)
6 Apply threadlock and tighten to 40 Nm (30 lb-ft)







All seats
7. Make sure the safety belt and buckles are accessible to the occupants after installation.
