Hydraulic Timing Chain Tensioner - LH

Hydraulic Timing Chain Tensioner - LH








Removal and Installation

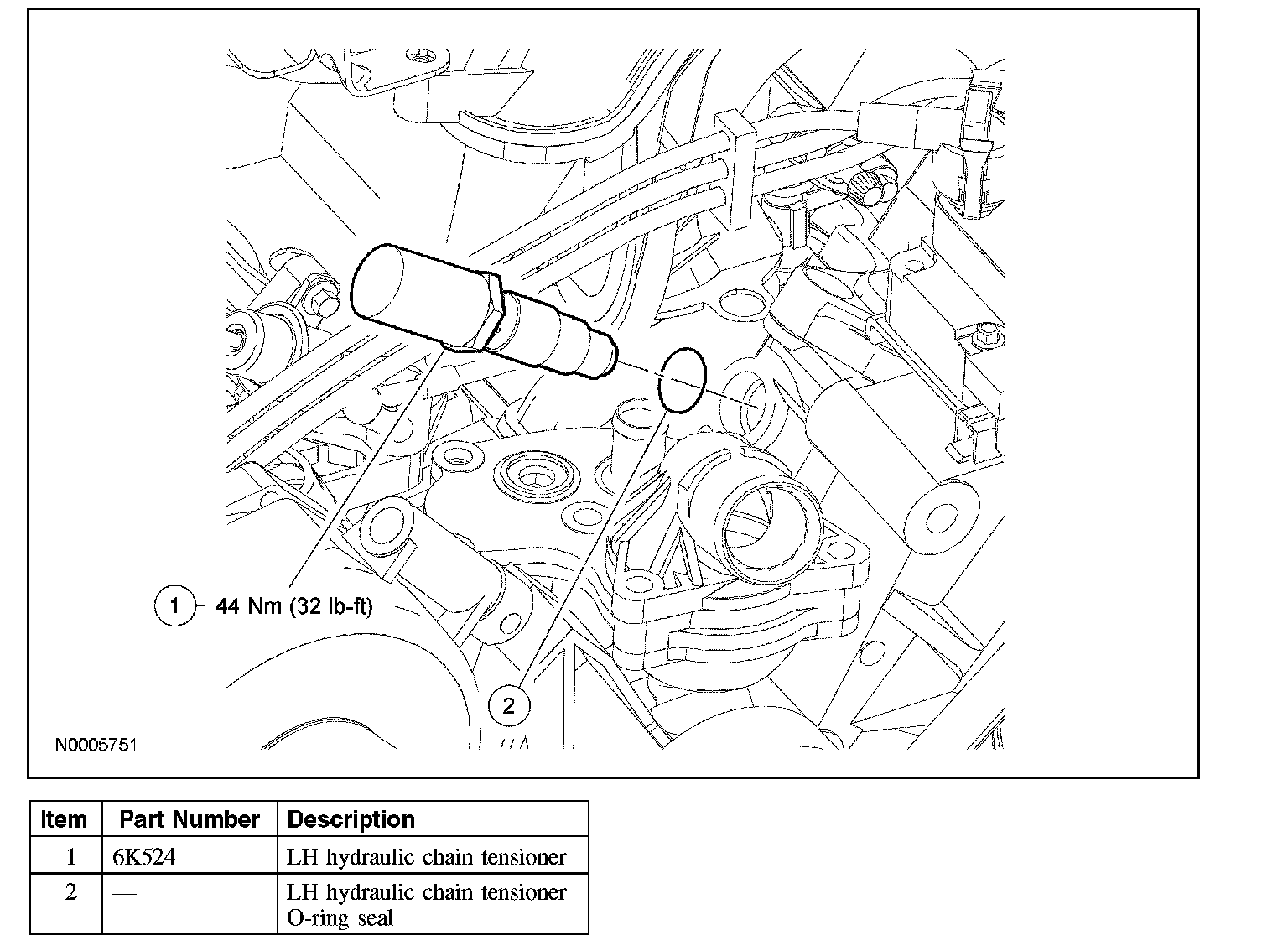

1. Remove the hydraulic chain tensioner.
^ To install, tighten to 44 Nm (32 lb-ft).

2. NOTE: Lubricate the new O-ring seal with clean engine oil.

Remove and discard the O-ring seal.
3. To install, reverse the removal procedure.
