Home >> Ford >> 2008 >> Explorer Sport Trac 4WD V6-4.0L >> Repair and Diagnosis >> Lighting and Horns >> Ambient Light Sensor >> Diagrams

Ambient Light Sensor: Diagrams

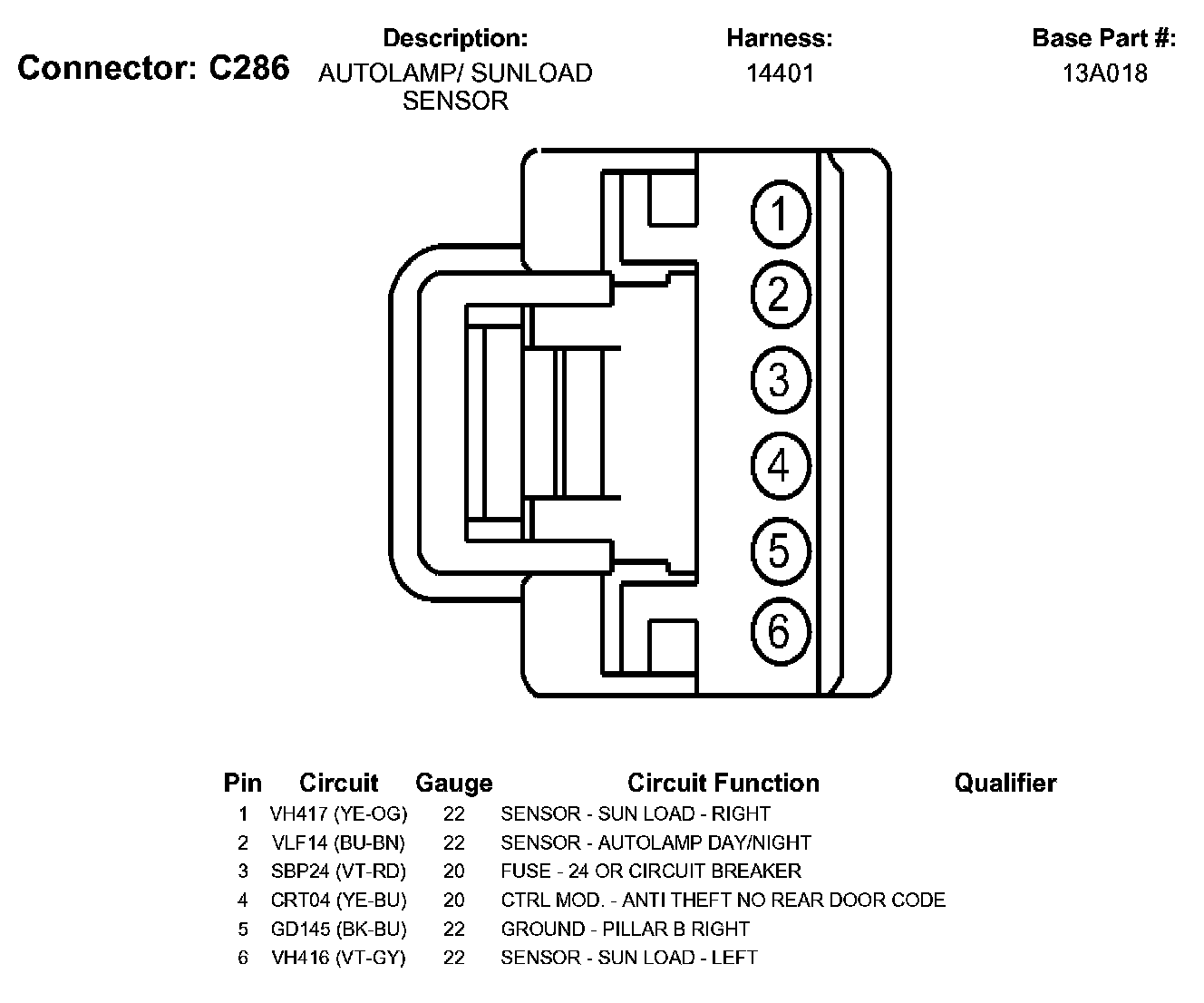

C286:
