Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2008
>>
Explorer Sport Trac 4WD V6-4.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Diagnostic Parameters Identification (PID) Chart
>>
6R60 - Automatic Transaxle/Transmission
6R60 - Automatic Transaxle/Transmission
Diagnostic Parameters Identification (PID) Chart

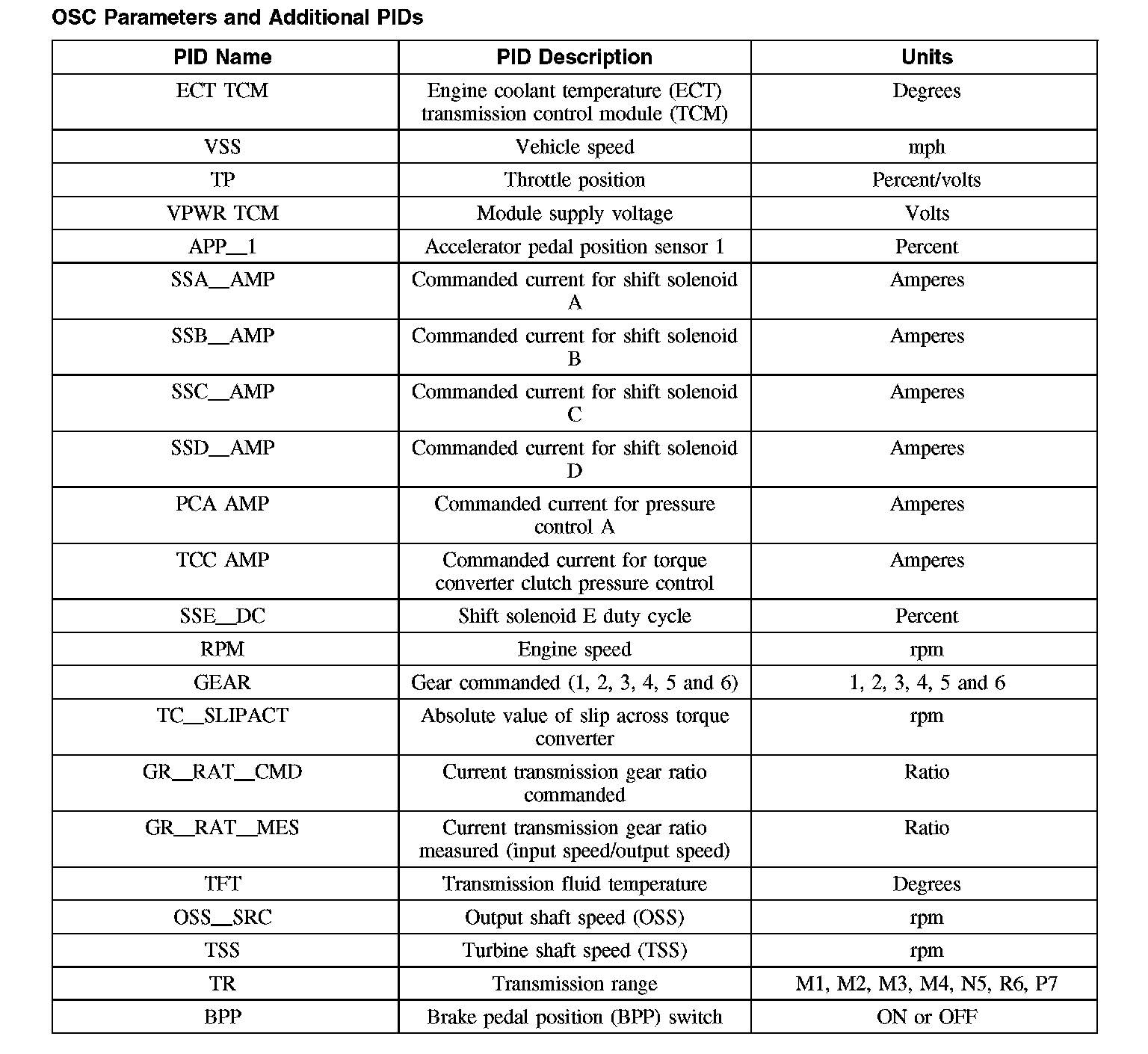

OSC Parameters and Additional PIDs (Part 1):

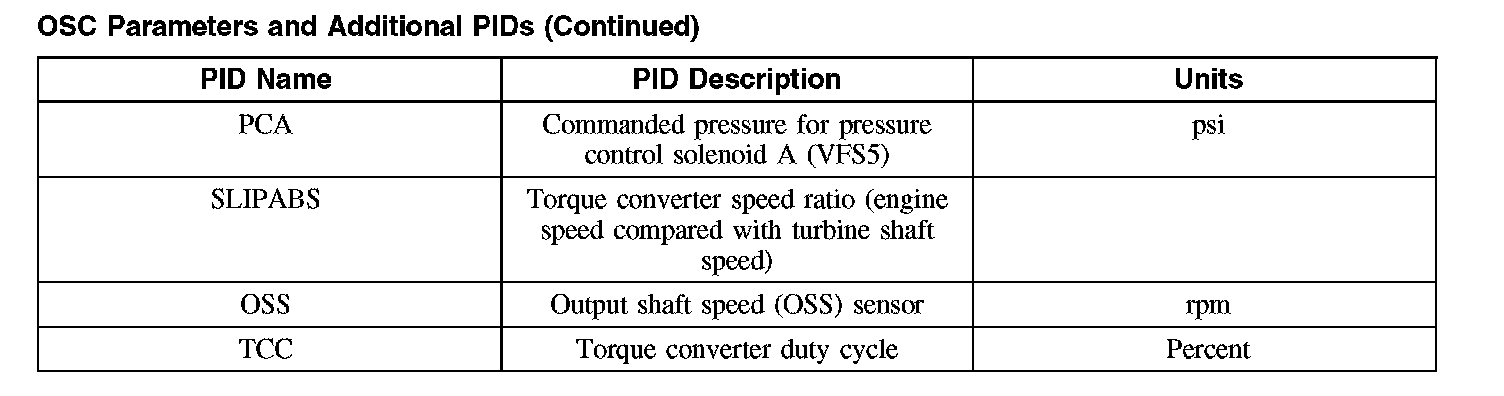

OSC Parameters and Additional PIDs (Part 2):
