Four-Wheel Drive Systems - 1 Speed Torque-on-Demand
Four-Wheel Drive Systems - 1 Speed Torque-on-Demand
Symptom Chart - Four Wheel Drive (4WD)

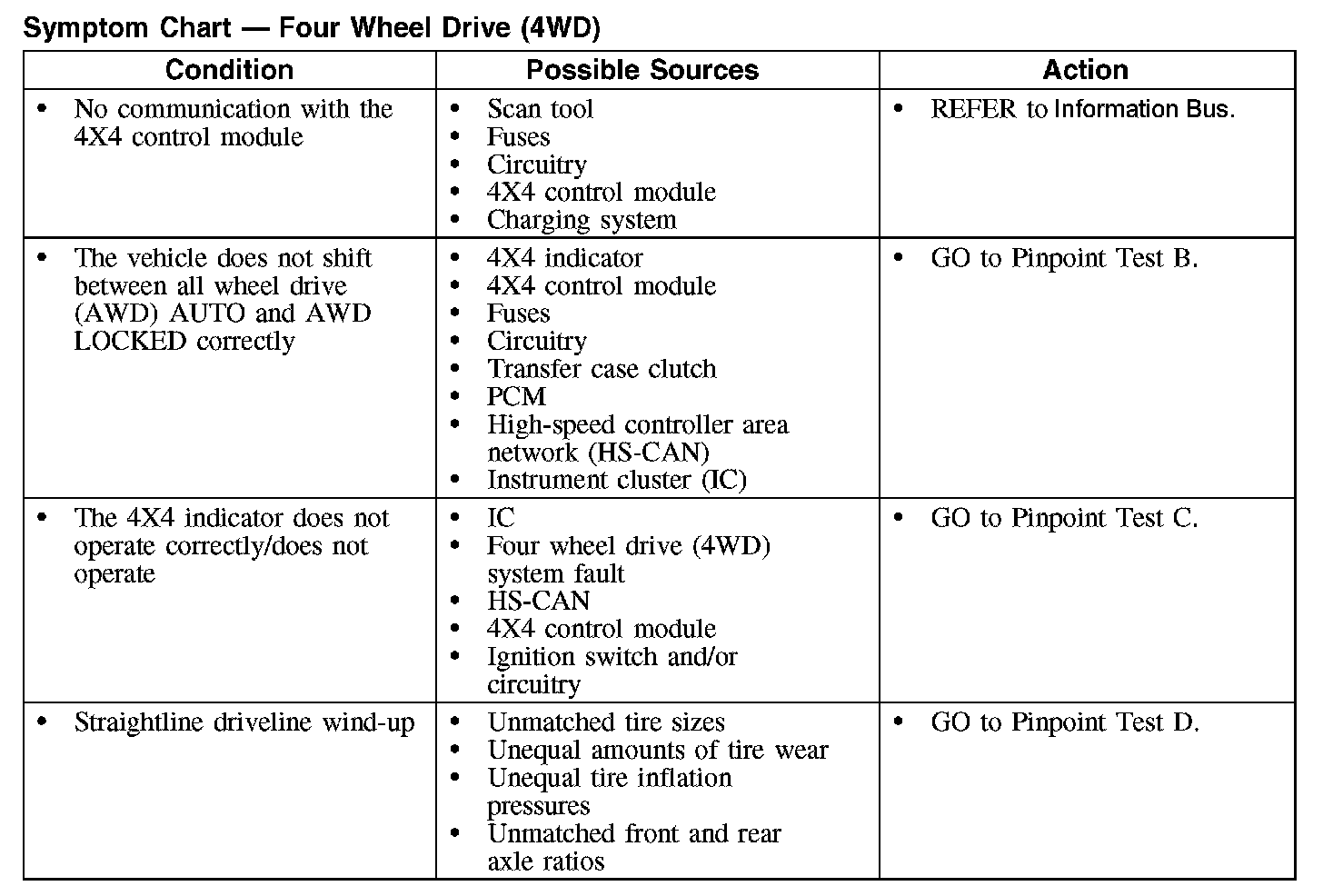

Symptom Chart - Four Wheel Drive (4WD) (Part 1):

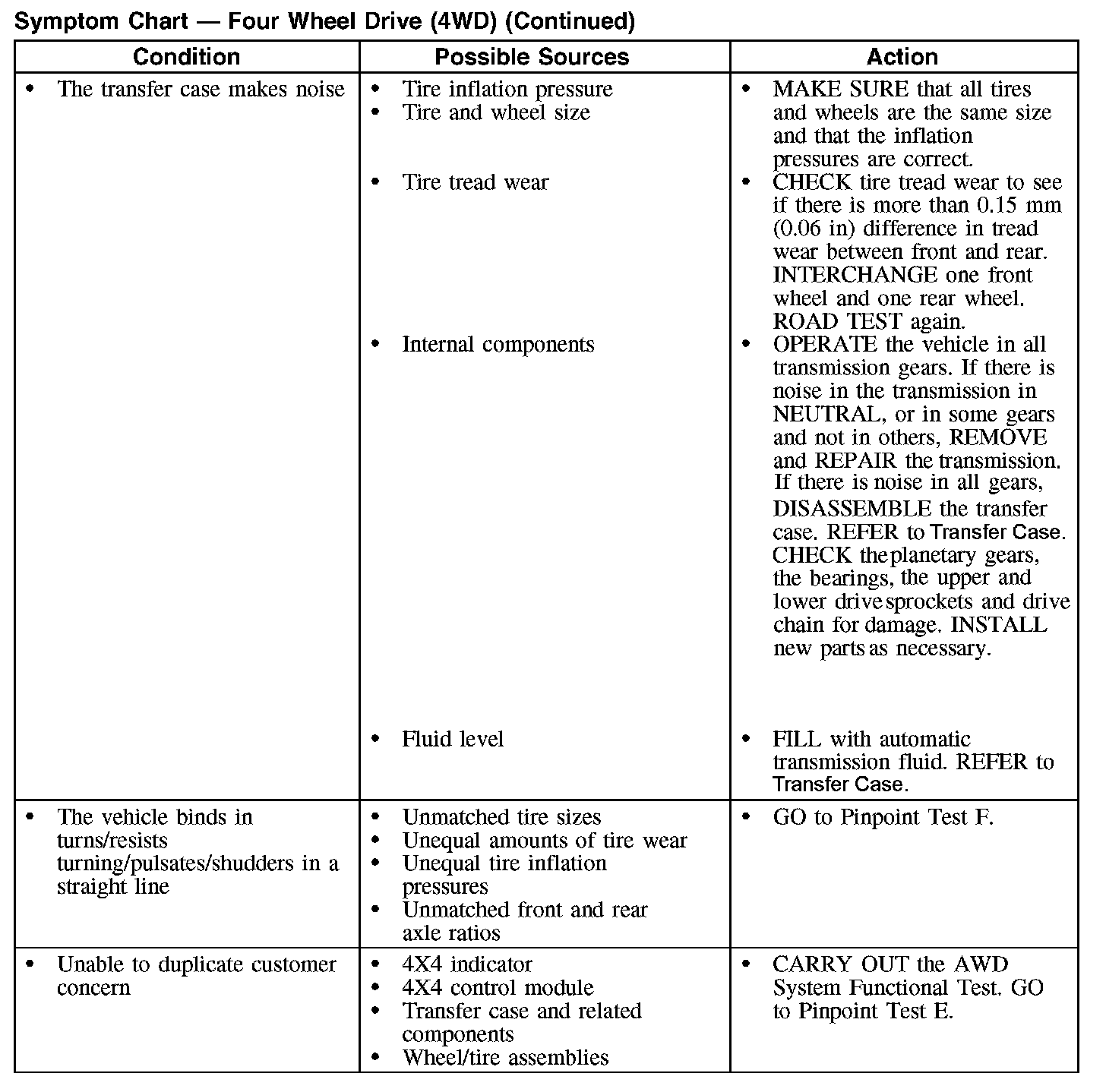

Symptom Chart - Four Wheel Drive (4WD) (Part 2):
