WINDOW GLASS - REAR, POWER

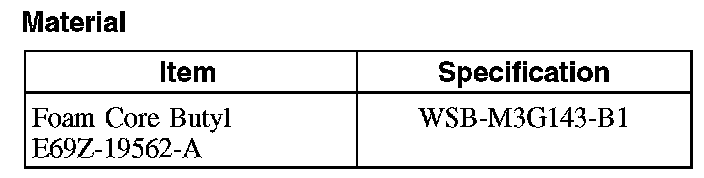

Material

Material:

Removal

NOTE:
- The rear window regulator motor must be initialized when repairs are performed on any part of the power rear window system including when: the power rear window motor is removed from the window regulator drum housing, a new power rear motor is installed, a new power rear window regulator is installed, a new power rear window glass module is installed, and any operation in which grease or lubricants are applied to the power rear window system.
- If the rear window glass is being removed to repair a dust/water leak, remove and reinstall the existing rear window glass.

1. Remove the rear window glass regulator.
2. Remove both C-pillar upper trim panels.

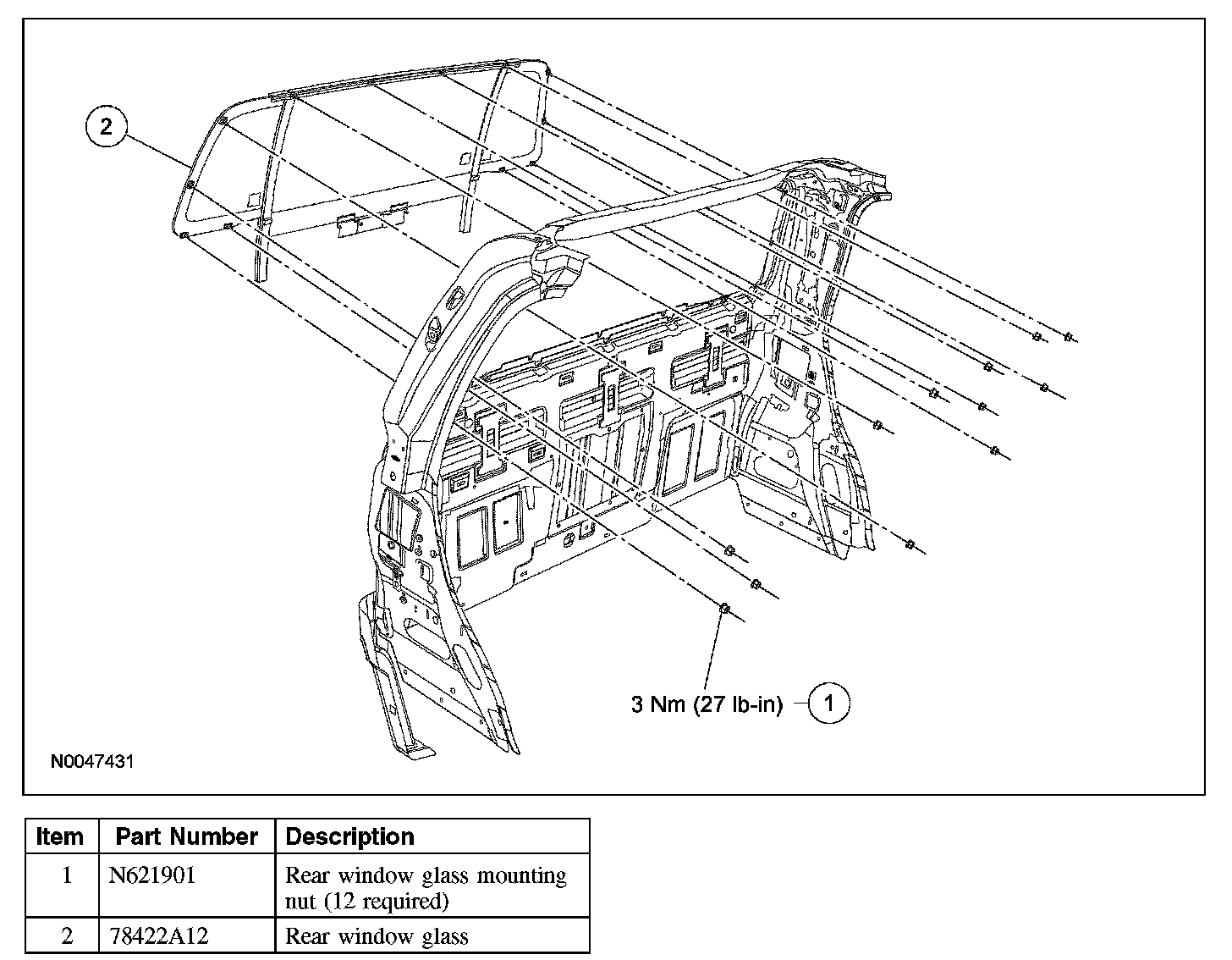

3. Remove the 12 rear window glass mounting nuts.

4. CAUTION: Use only a plastic windshield setting tool to slide under the seal to separate the foam core butyl from the glass. Once the glass starts to separate from the body, constant hand pressure will break the seal and the glass can be removed. Failure to use a plastic windshield setting tool can damage the body or the glass frame.

Remove the rear window glass.

Installation

1. NOTE: Remove as much as possible of the foam core butyl from the body and rear window glass prior to installation.

Install the rear window glass.
- Apply foam core butyl to the window. Overlap the foam core butyl by 25 mm (0.984 in) at the bottom middle of the rear window glass.
- Carefully install the rear window glass into the body opening.

2. Install the 12 rear window glass mounting nuts.
- Tighten to 3 Nm (27 lb-in).
- Test the rear window glass for water leaks.

3. Install both C-pillar upper trim panels.
4. Install the rear window glass regulator.
- Initialize the rear window regulator motor. For additional information, refer to Window Motor Initialization - Rear. Testing and Inspection
