Entertainment System Control Panel: Service and Repair

REAR ENTERTAINMENT MODULE (RETM)

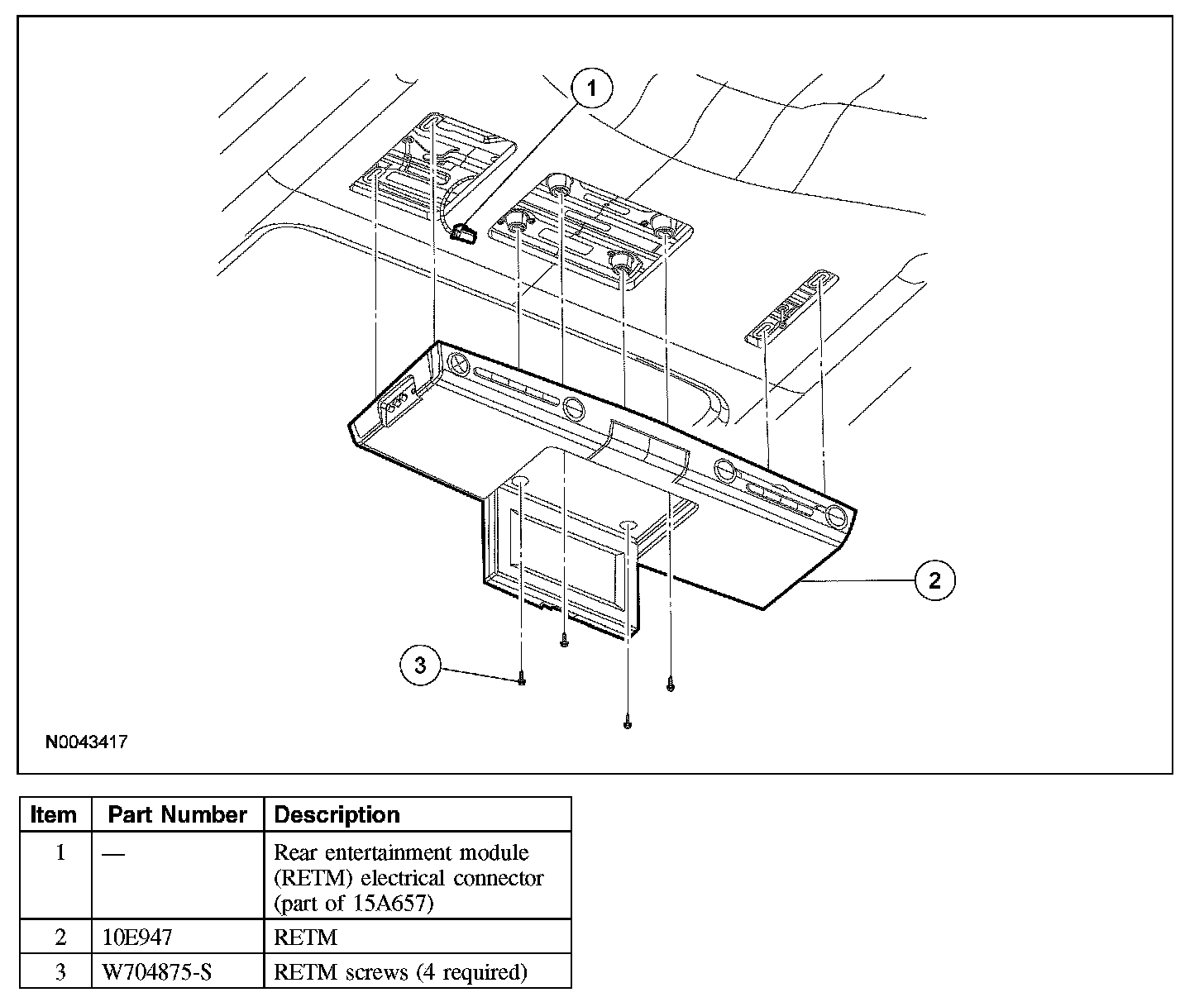

Removal and Installation

NOTE: Programmable module installation (PMI) only needs to be carried out if the DVD player is being replaced.

1. Upload the DVD player configuration to the scan tool.

2. NOTE: Open the display to access the screws.

Remove the 4 screws.

3. Remove the rear entertainment module (RETM).
- Pull down on the sides of the RETM to disengage the clips from the bracket.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
