Front

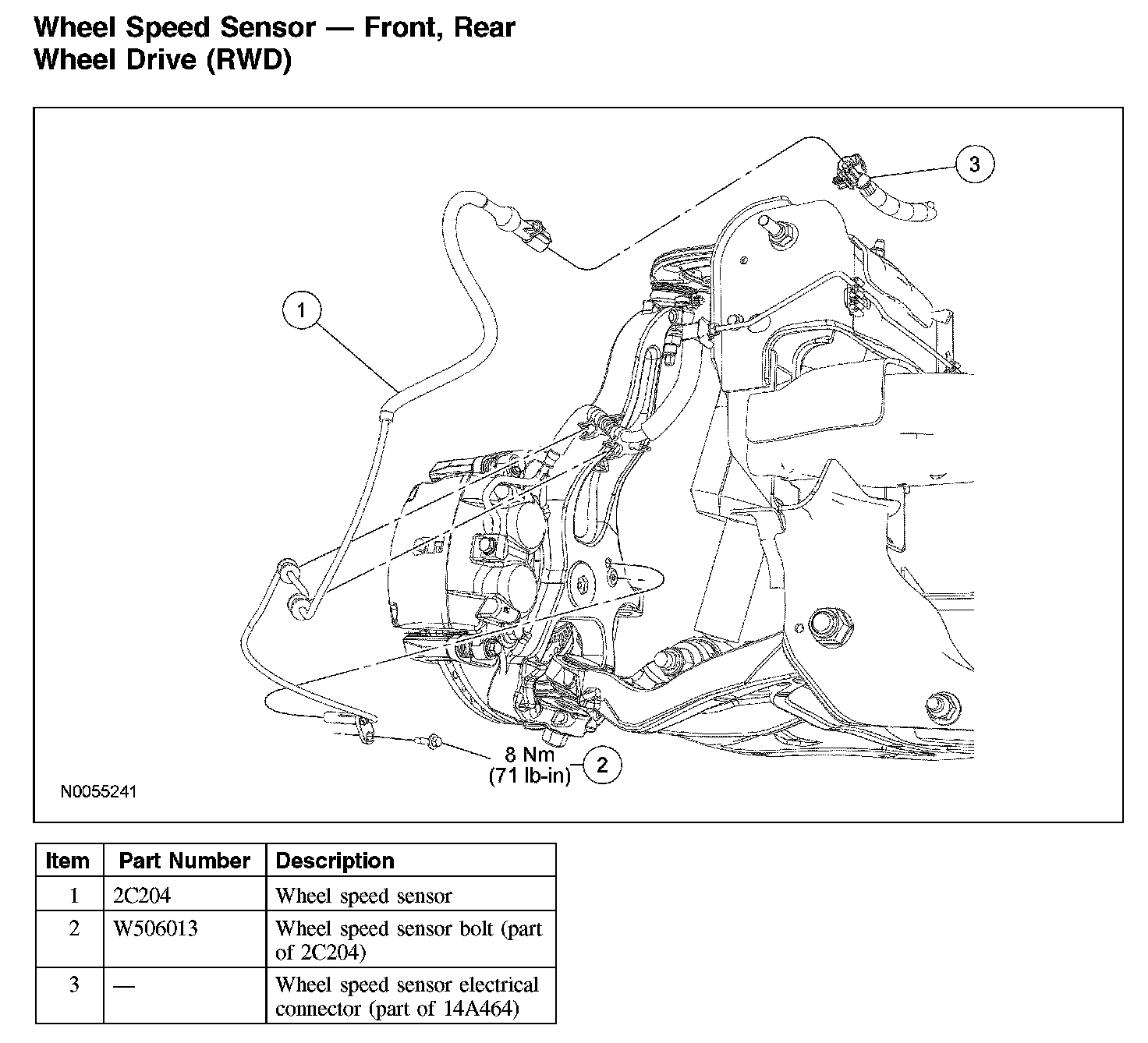

Wheel Speed Sensor - Front, Rear Wheel Drive (RWD)

Wheel Speed Sensor - Front, Rear Wheel Drive (RWD):

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

2. NOTE: The harness connector is located in the engine compartment secured to the fender apron.

Disconnect the wheel speed sensor electrical connector.
3. Disconnect the 2 wheel speed sensor harness retainers from the brake hose.
4. Remove the wheel speed sensor harness from the pushpin retainer.
5. Remove the bolt and the wheel speed sensor.
^ To install, tighten to 8 Nm (71 lb-in).
6. To install, reverse the removal procedure.
