Hydraulic System: Service and Repair

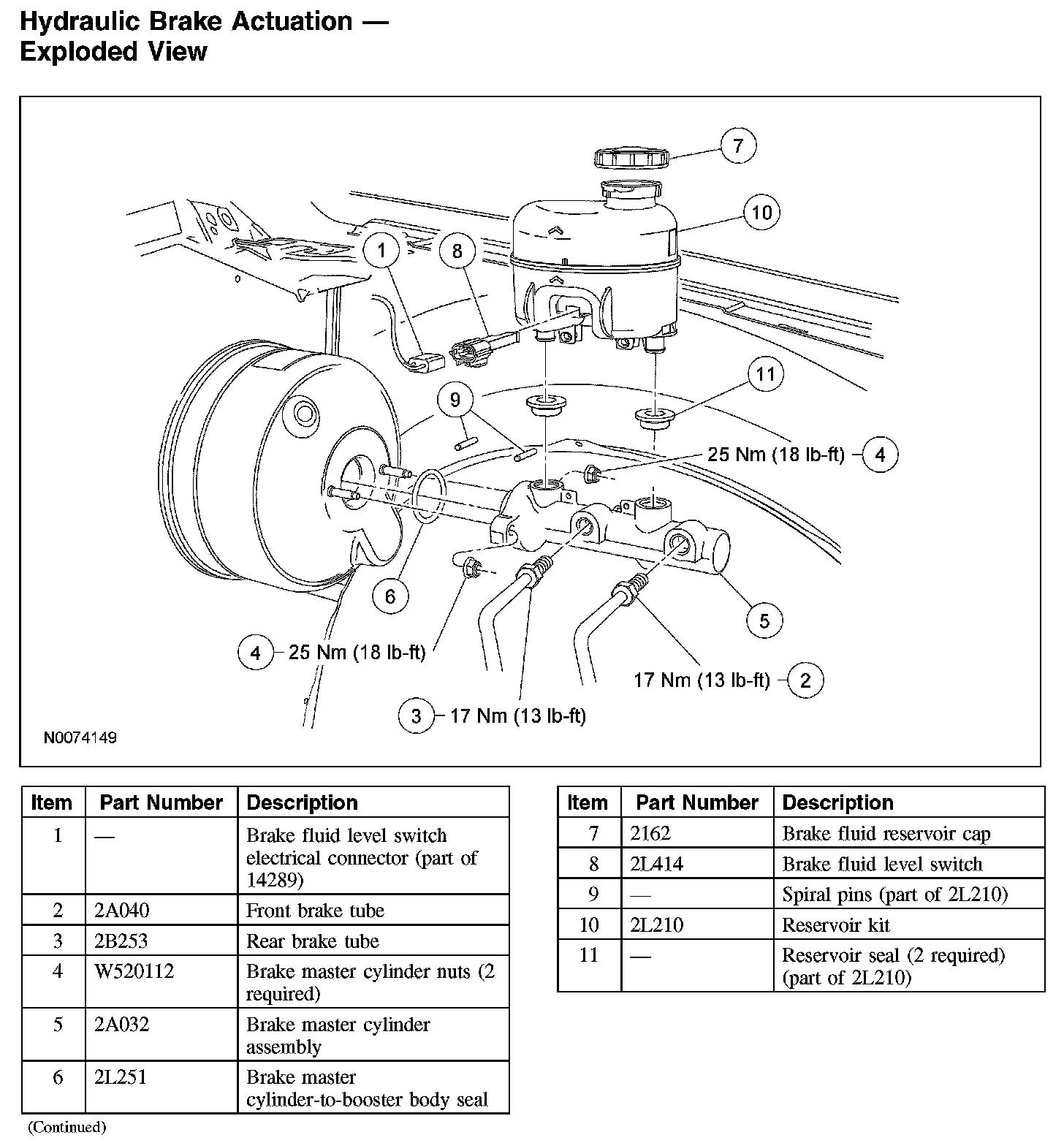

Hydraulic Brake Actuation Exploded View
Hydraulic Brake Actuation - Exploded View:
