Intake Manifold: Specifications

Upper Intake Manifold Bolts





First pass 6 Nm (53 lb-in).
Final pass 10 Nm (89 lb-in).

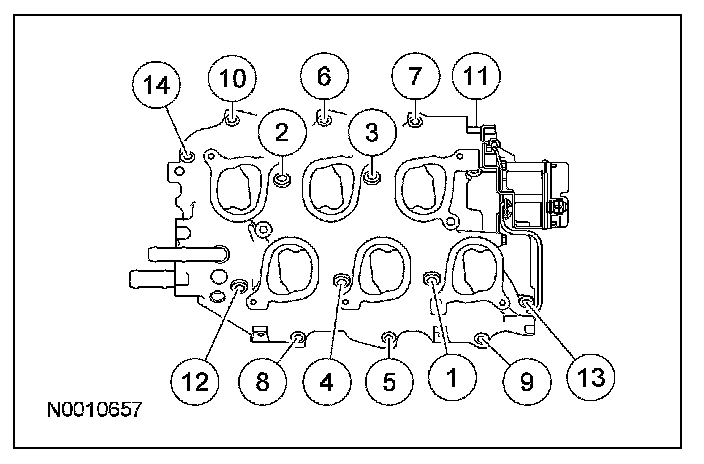

Lower Intake Manifold Bolts





NOTE: Make sure the bolts are installed in the correct locations. The long bolts are installed in positions 1, 2, 3, 4, 11 and 12.

First pass 5 Nm (44 lb-in).
Final pass 10 Nm (89 lb-in).

Electronic throttle body (TB) bolts 10 Nm, 89 lb-in
