With Message Center

COMPASS ZONE ADJUSTMENT

With Message Center

1. NOTE: The compass zone setting is preset from the factory to Zone 8.

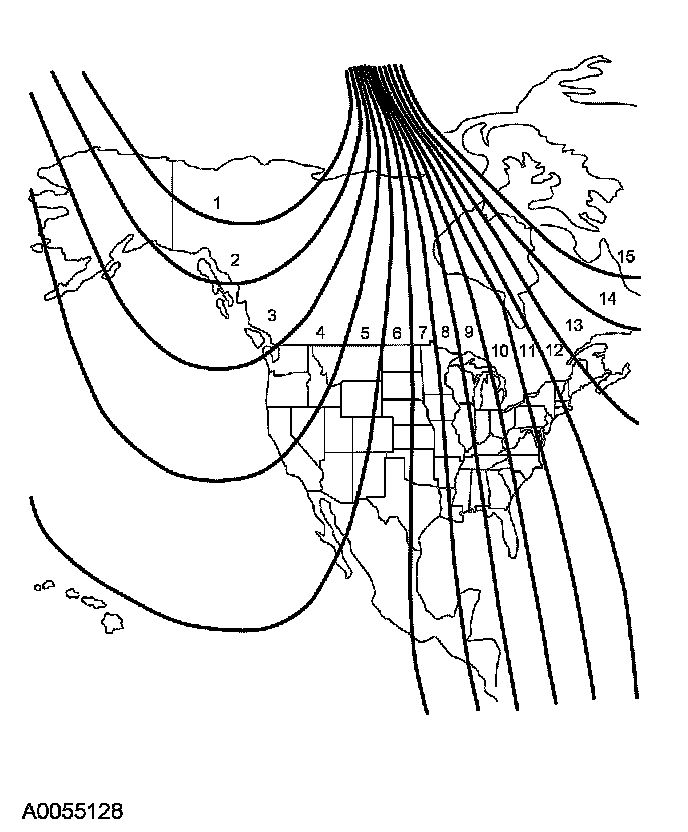

Determine which magnetic zone you are in for your geographic location.

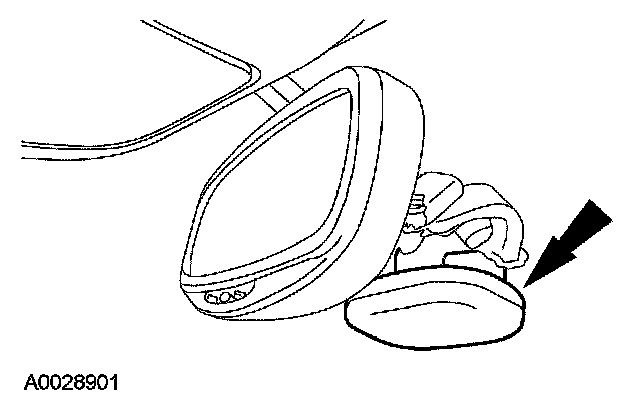

2. Locate the compass module at the base of the mirror.







3. Turn the ignition key to the ON position.

4. NOTE: To exit the compass zone adjustment before carrying out the compass zone adjustment procedure, press the INFO button on the message center switch.

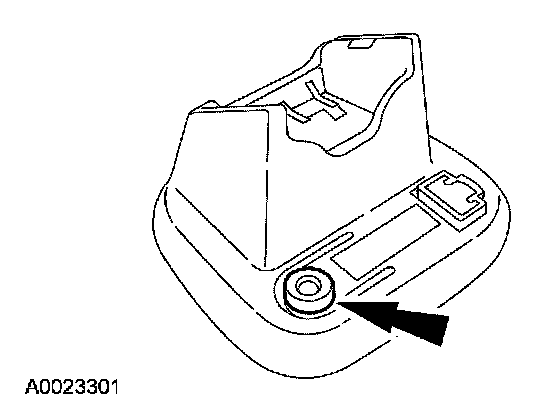

Press and hold the reset button on the LH top of the compass module until RESET FOR ZONE and the current setting (1-15) appears in the message center display.







5. Press the SETUP button on the message center switch repeatedly until the correct geographic location for your area is displayed in the message center.
6. Press the RESET button to exit the zone setting procedure and to lock your selected zone setting. The message center displays CALIBRATION COMPLETE.
