Timing Cover
Timing Cover

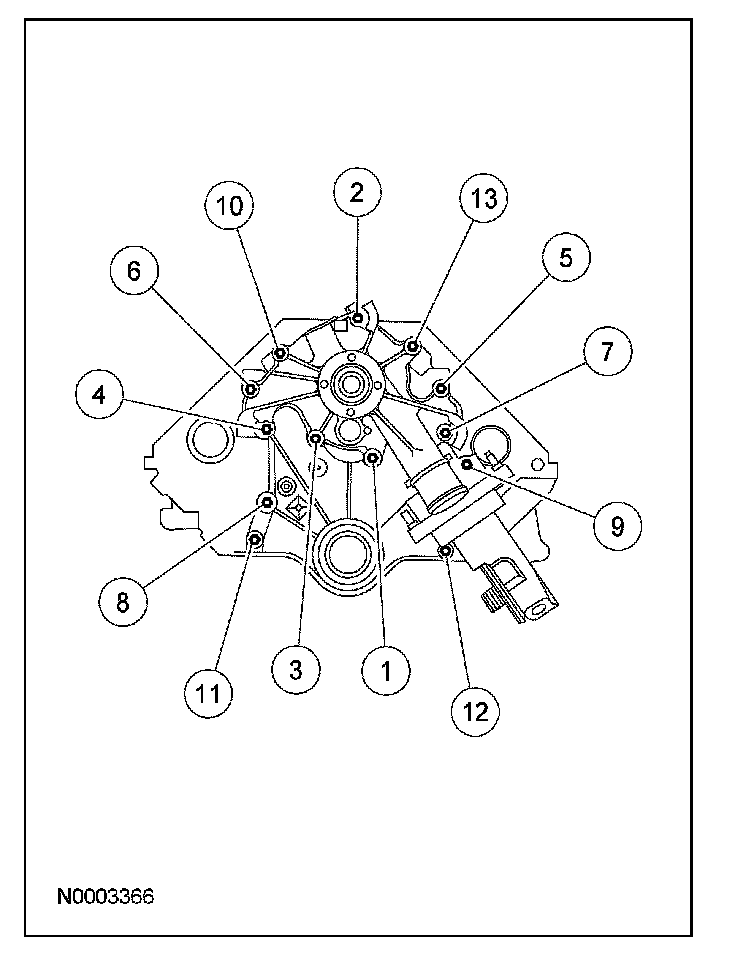

Engine Front Cover Bolts
Capscrew No. 12
10 Nm (89 lb-in).
All other fasteners
28 Nm (21 lb-ft).
