Fluid Line/Hose: Service and Repair

Transmission Fluid Cooler Tubes

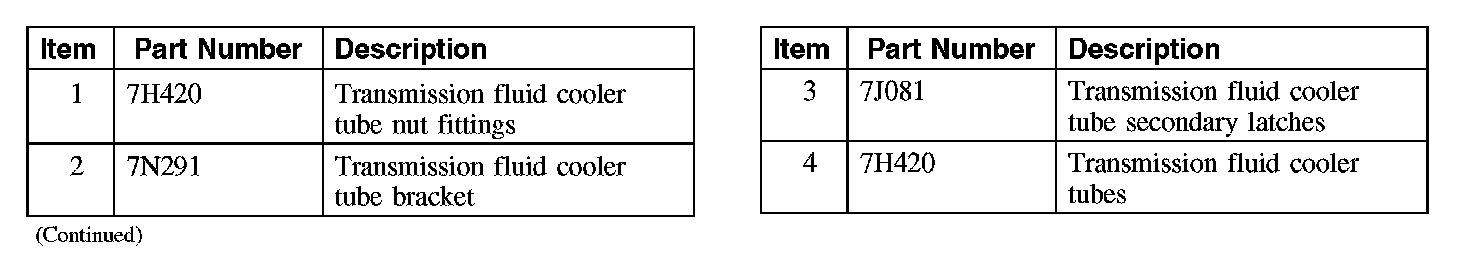

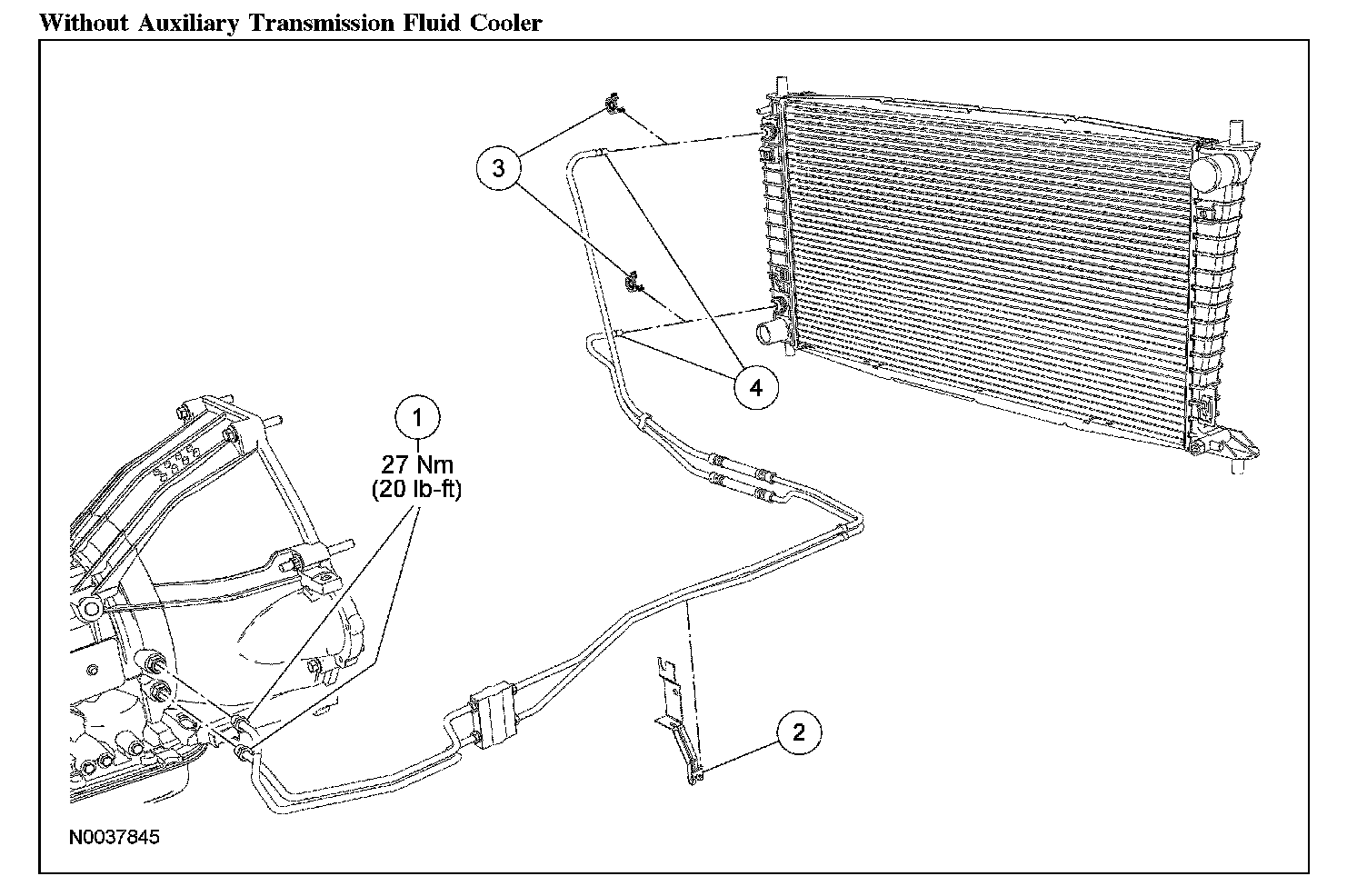

Without Auxiliary Transmission Fluid Cooler (Part 1):

Without Auxiliary Transmission Fluid Cooler (Part 2):

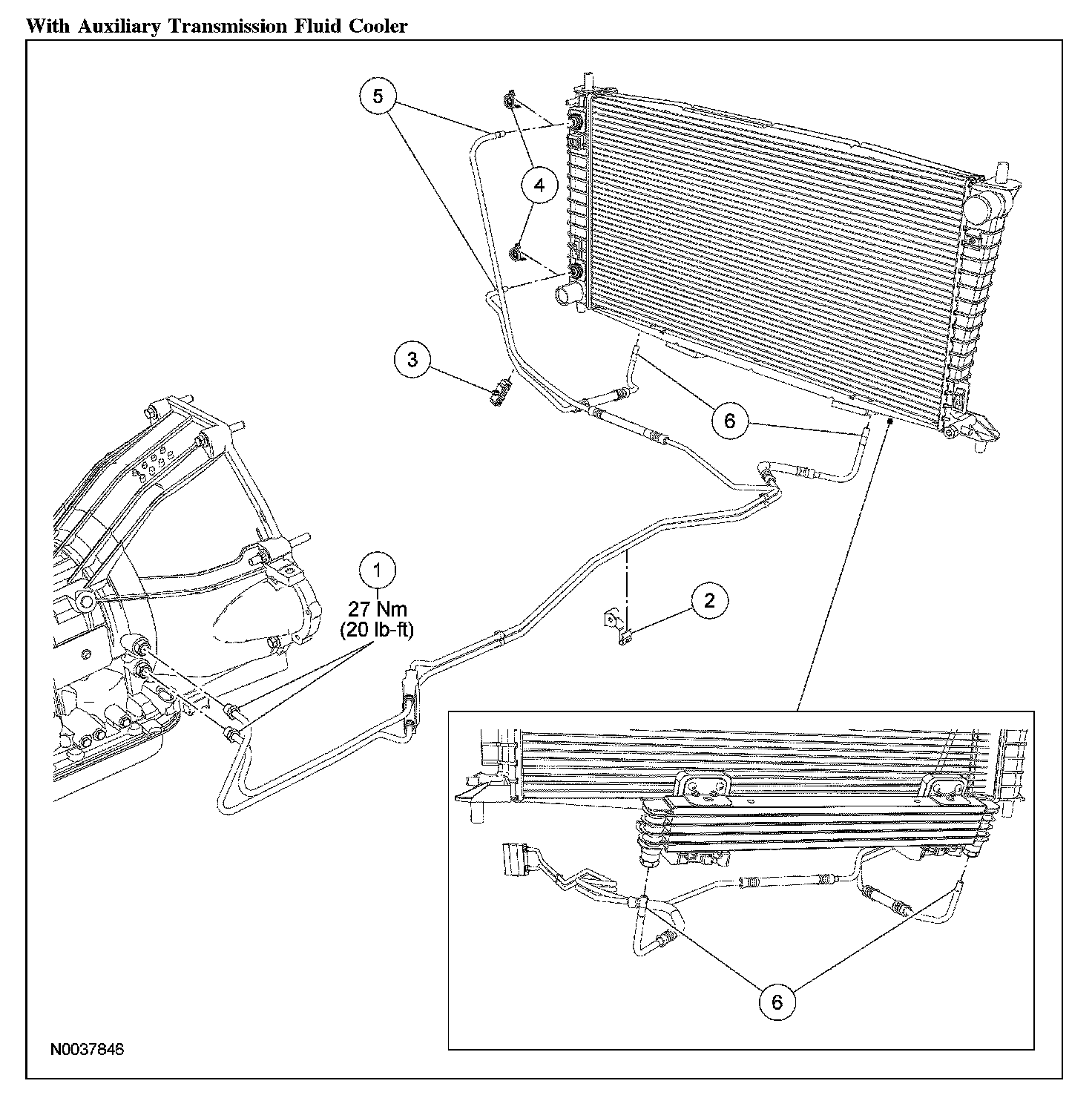

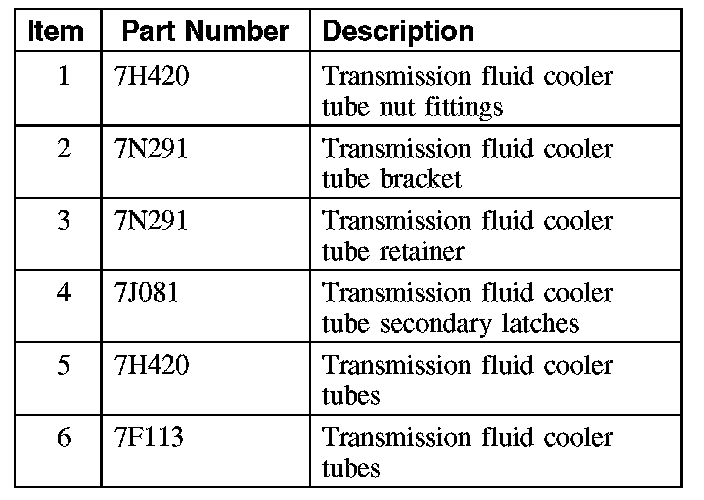

With Auxiliary Transmission Fluid Cooler (Part 1):

With Auxiliary Transmission Fluid Cooler (Part 2):

Removal
1. If not done previously, carry out the transmission fluid cooler flow test procedure.
2. With the vehicle in NEUTRAL, position it on a hoist.

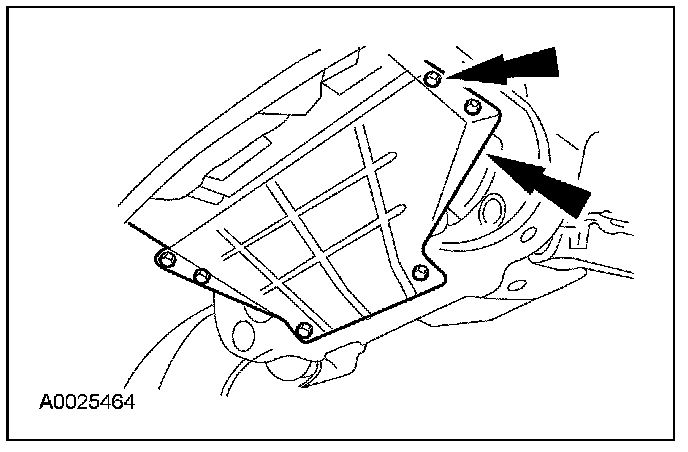

3. Remove the bolts and the skid plate (four wheel drive [4WD] vehicles).





4. Remove the fasteners and position the air deflector aside.

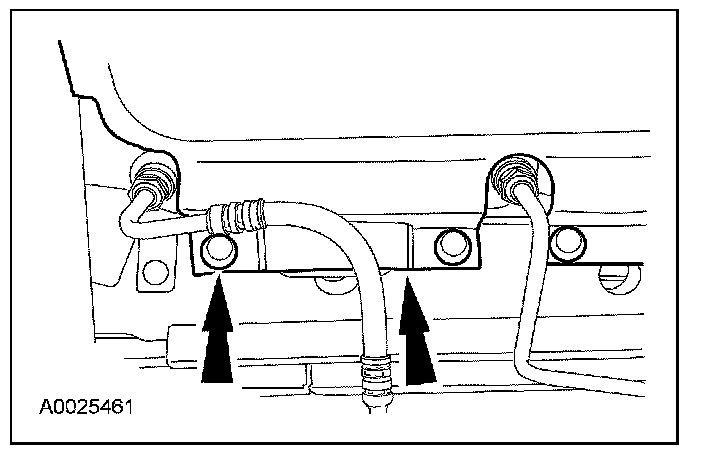

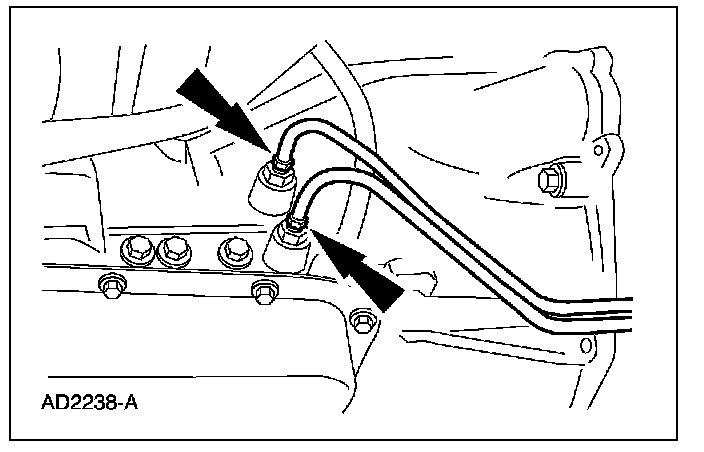

5. Disconnect the transmission fluid cooler tubes from the transmission case.
6. Remove the secondary latches from the transmission fluid cooler tubes.
7. Remove the transmission fluid cooler tubes from the bracket.
8. Remove the transmission fluid cooler tubes from the retainer.

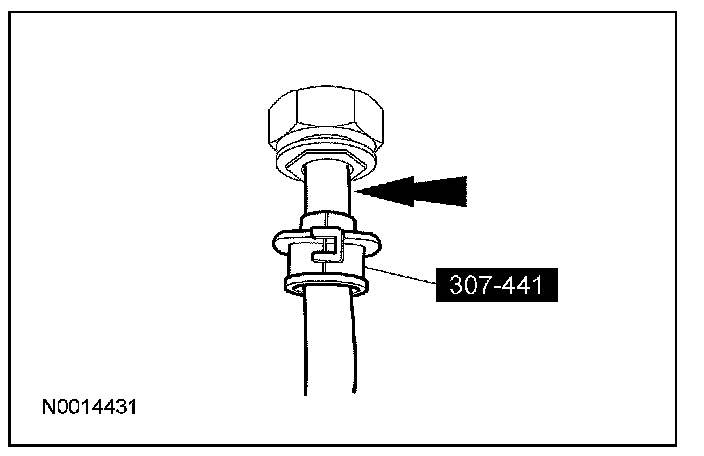

9. Using the special tool, disconnect the transmission fluid cooler tubes from the radiator, and if equipped, the transmission fluid cooler.





Installation
1. Install the transmission fluid cooler tube(s).
^ Tighten to 27 Nm (20 lb-ft).





2. Connect the transmission fluid cooler tubes to the bracket.
3. Install the transmission fluid cooler tubes to the retainer.
4. Connect the transmission fluid cooler tubes to the radiator and the auxiliary transmission fluid cooler if equipped.
5. Install the secondary latches onto the transmission fluid cooler tubes.
6. Position the air deflector and install the fasteners.

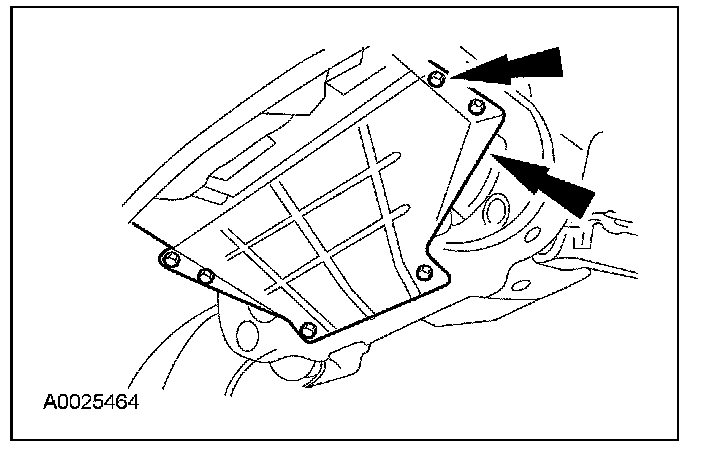

7. Position the skid plate and install the bolts (4WD vehicles).
^ Tighten to 15 Nm (11 lb-ft).

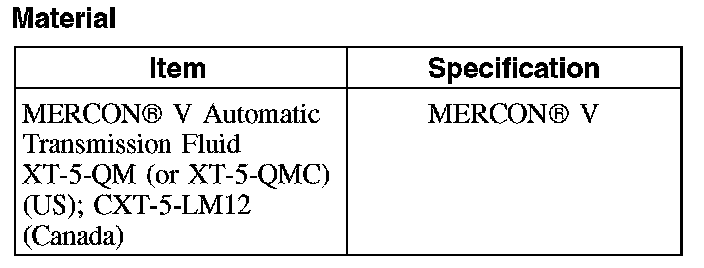

8. Fill the transmission with clean transmission fluid specified for this transmission.
9. Check for leaks.
