Flywheel: Service and Repair

Flywheel

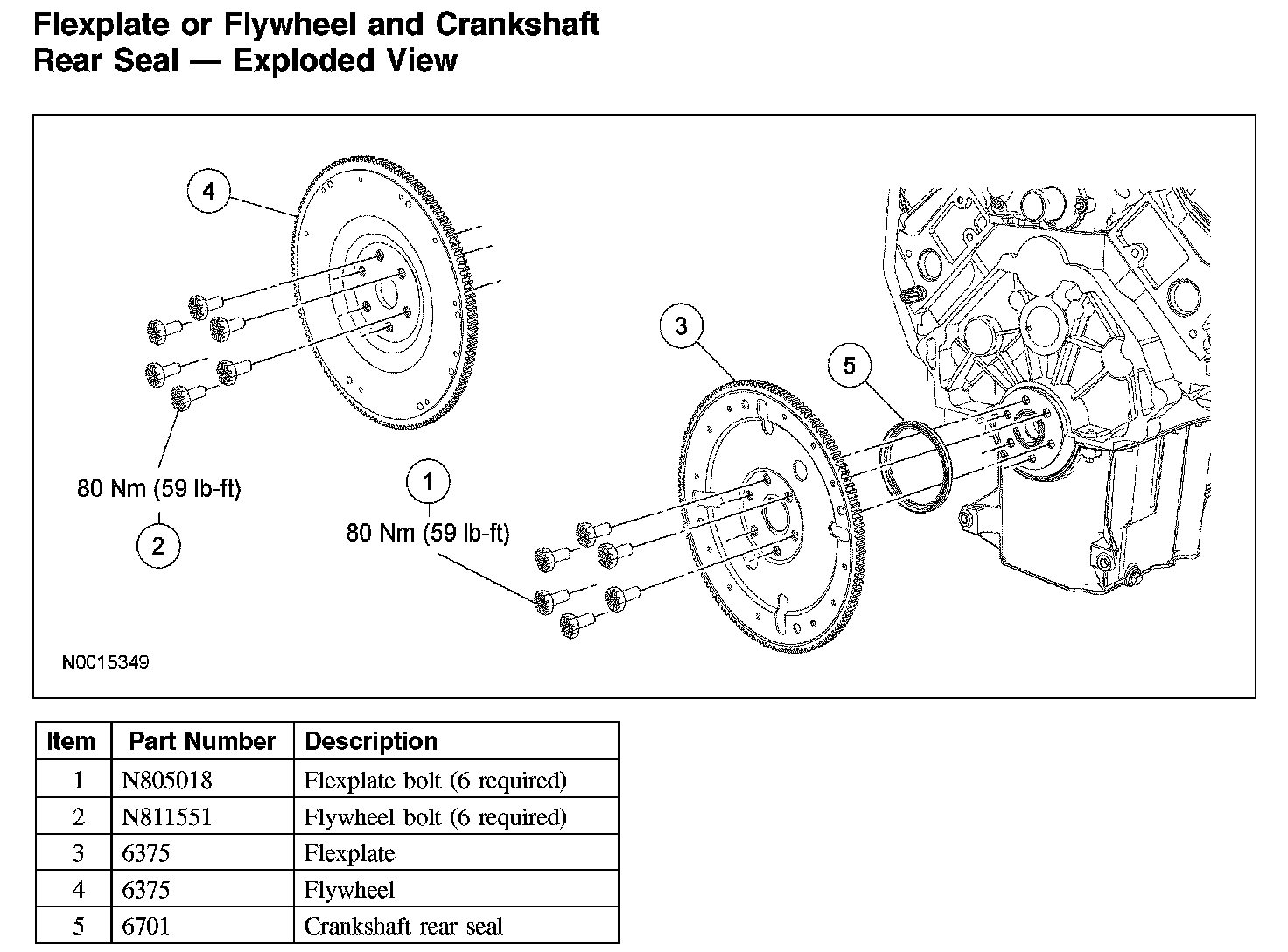

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View:

Removal and Installation
1. Remove the clutch.
2. Remove the bolts and the flywheel.
^ To install, tighten to 80 Nm (59 lb-ft) in a criss-cross pattern.
3. To install, reverse the removal procedure.
