Windshield Washer Pump: Service and Repair

WASHER PUMP AND RESERVOIR

Exploded View

Windshield Wiper System:

Removal and Installation

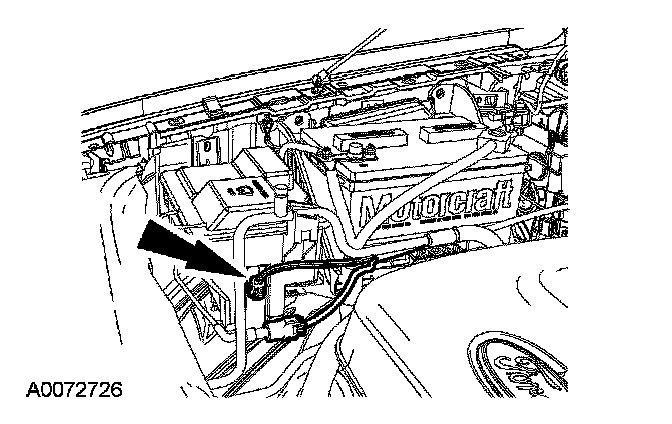

1. Disconnect the windshield washer pump electrical connector.

2. WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTE: To prevent spilling windshield washer fluid, drain fluid from the windshield washer reservoir before removal.

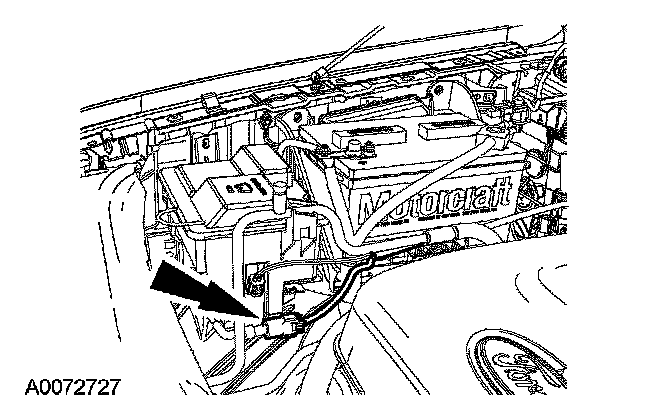

Disconnect washer fluid reservoir hose.

3. Remove the 3 washer fluid reservoir bolts.
- To install, tighten to 7 Nm (62 lb-in).

4. Remove the washer fluid reservoir.

5. CAUTION: When installing a new windshield washer pump, be careful not to damage the rubber grommet.

Remove the windshield washer pump.

6. CAUTION: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to follow these instructions may result in premature pump failure.

To install, reverse the removal procedure.
