Transmission Mount: Service and Repair

Transmission Insulator and Retainer

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. If equipped, remove the transfer case skid plate.
3. Remove the 2 bolts for the exhaust hanger.





4. Remove the rear transmission insulator nuts.





5. Install a suitable transmission jack.

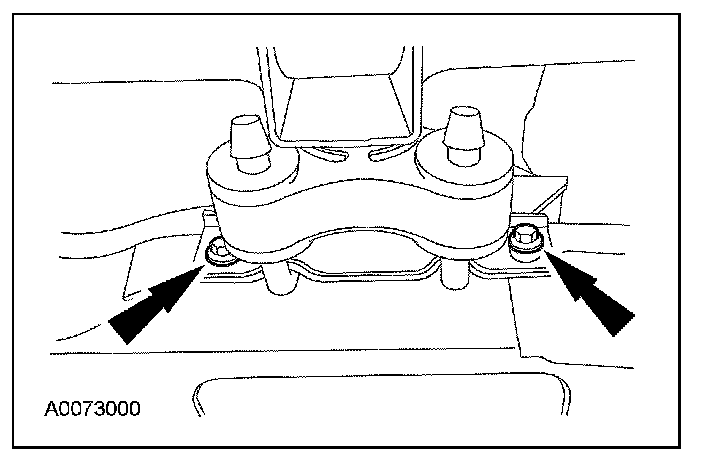

6. Slightly raise the rear of the transmission and remove the bolts. Remove the rear transmission insulator.





Installation
1. Install the transmission insulator and the bolts.
^ Tighten to 80 Nm (59 lb-ft).





2. Lower the transmission onto the crossmember and install the nuts.
^ Tighten to 103 Nm (76 lb-ft).





3. Install the bolts retaining the exhaust hanger to the crossmember.
^ Tighten to 40 Nm (30 lb-ft).





4. If equipped, install the transfer case skid plate.
^ Tighten to 48 Nm (35 lb-ft).
