Symptom Chart - Noise, Vibration and Harshness (NVH)
Symptom Chart - Noise, Vibration and Harshness (NVH)NOTE: Noise, vibration and harshness (NVH) symptoms should be identified using the diagnostic tools that are available. For a list of these tools, an explanation of their uses and a glossary of common terms, refer to Vehicle/Testing and Inspection. Since it is possible any one of multiple systems may be the cause of a symptom, it may be necessary to use a process of elimination type of diagnostic approach to pinpoint the responsible system. If this is not the causal system for the symptom, refer back to Vehicle/Testing and Inspection for the next likely system and continue diagnosis.

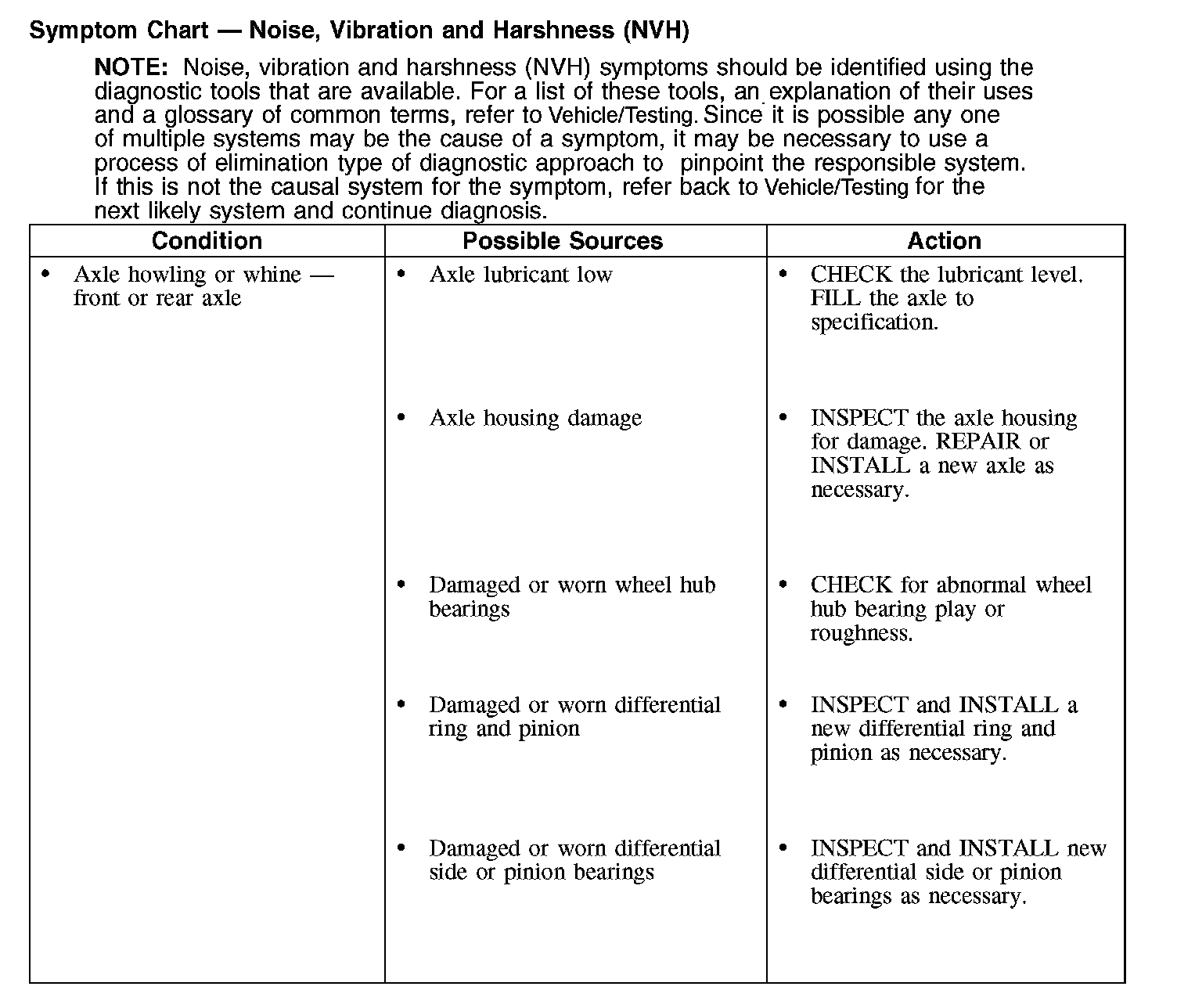

Symptom Chart - Noise, Vibration And Harshness (NVH) (Part 1):

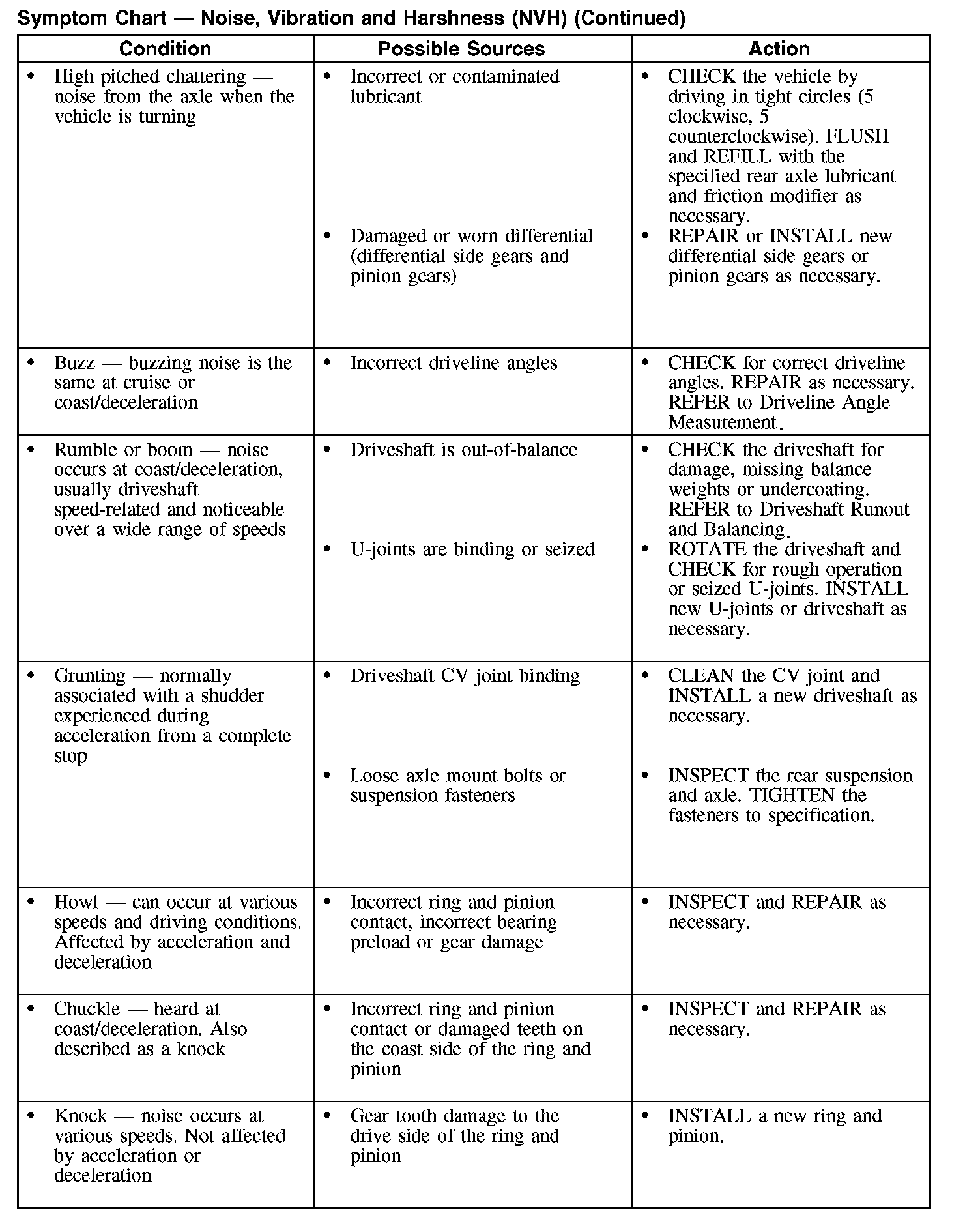

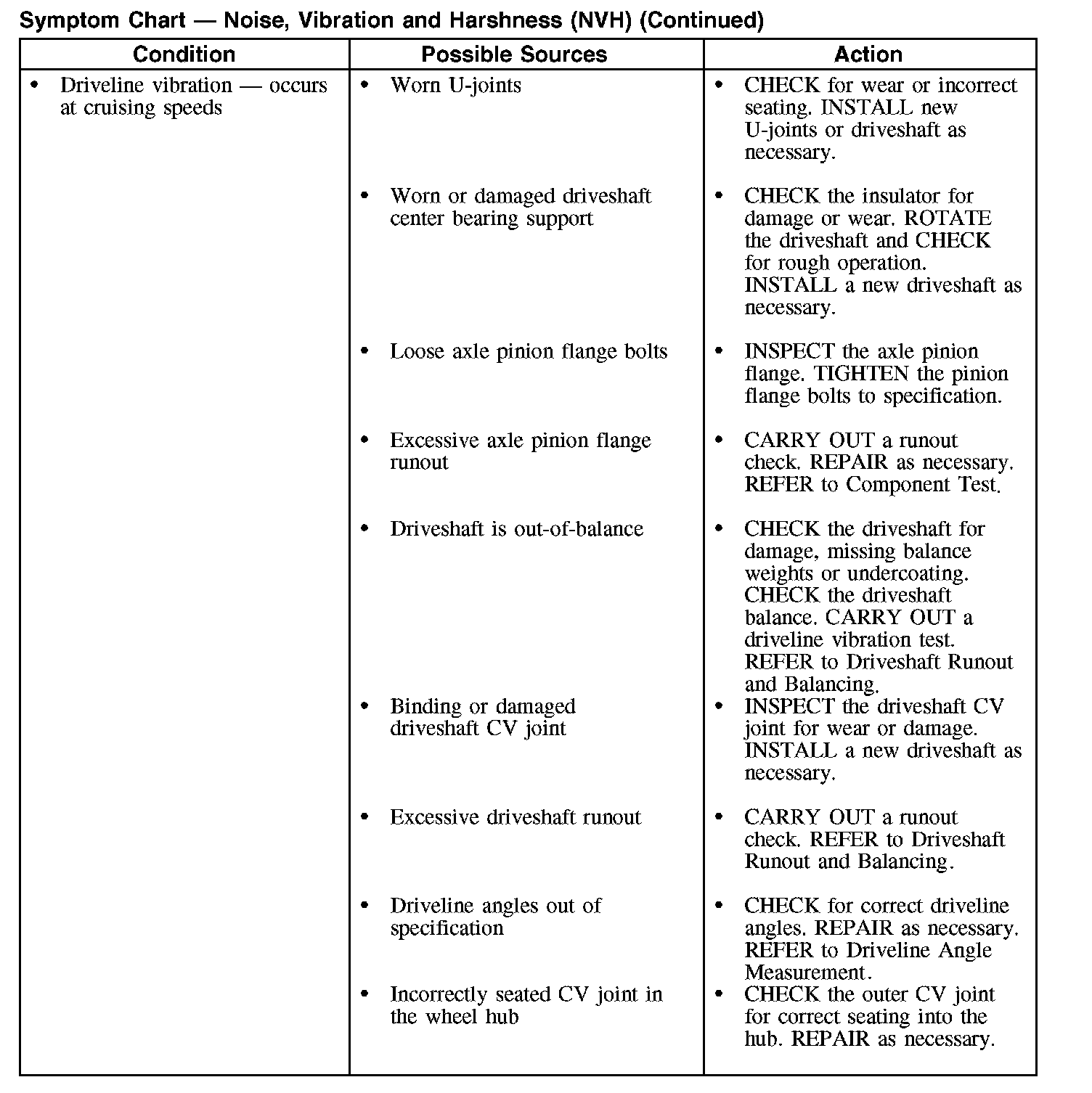

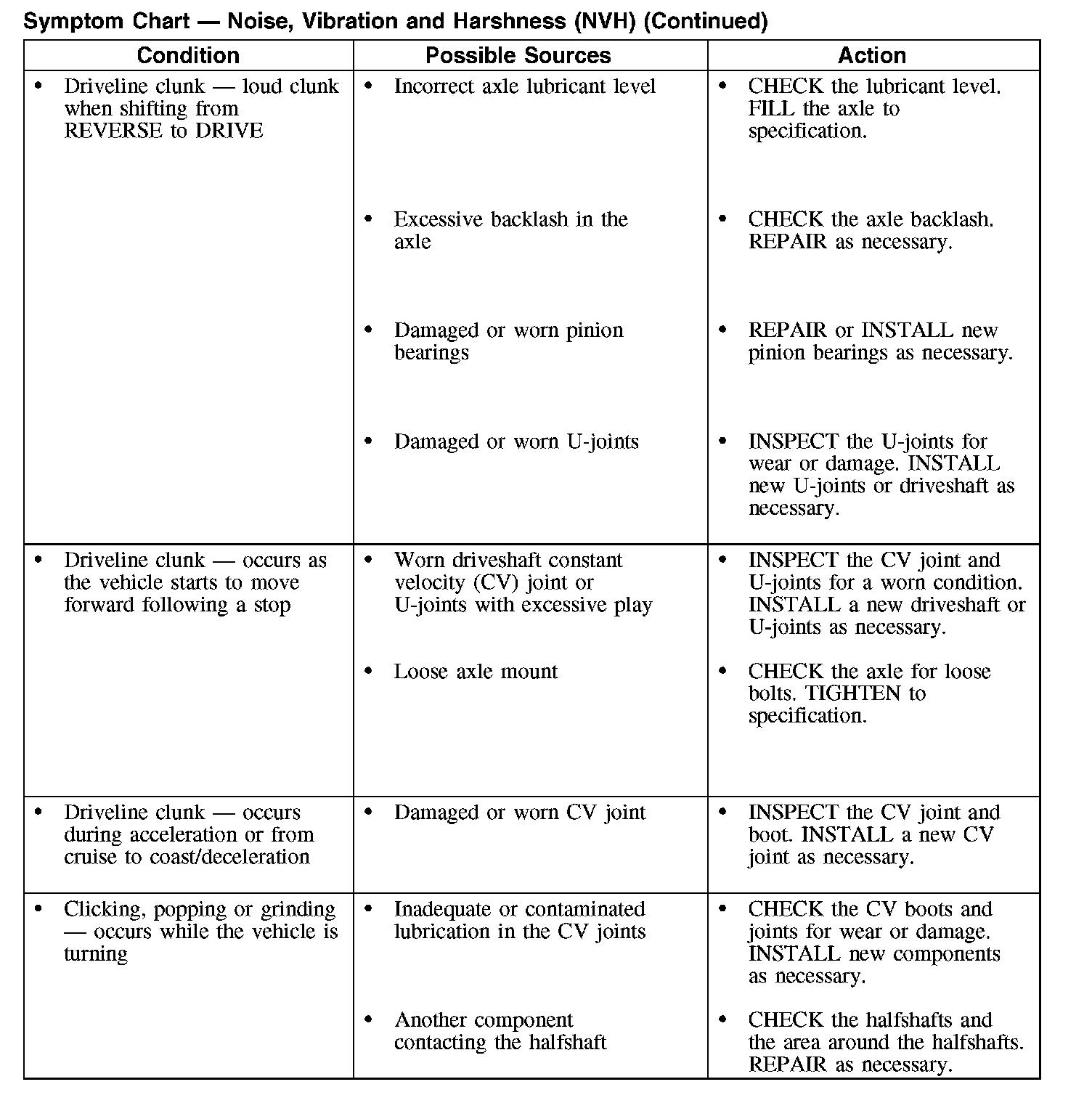

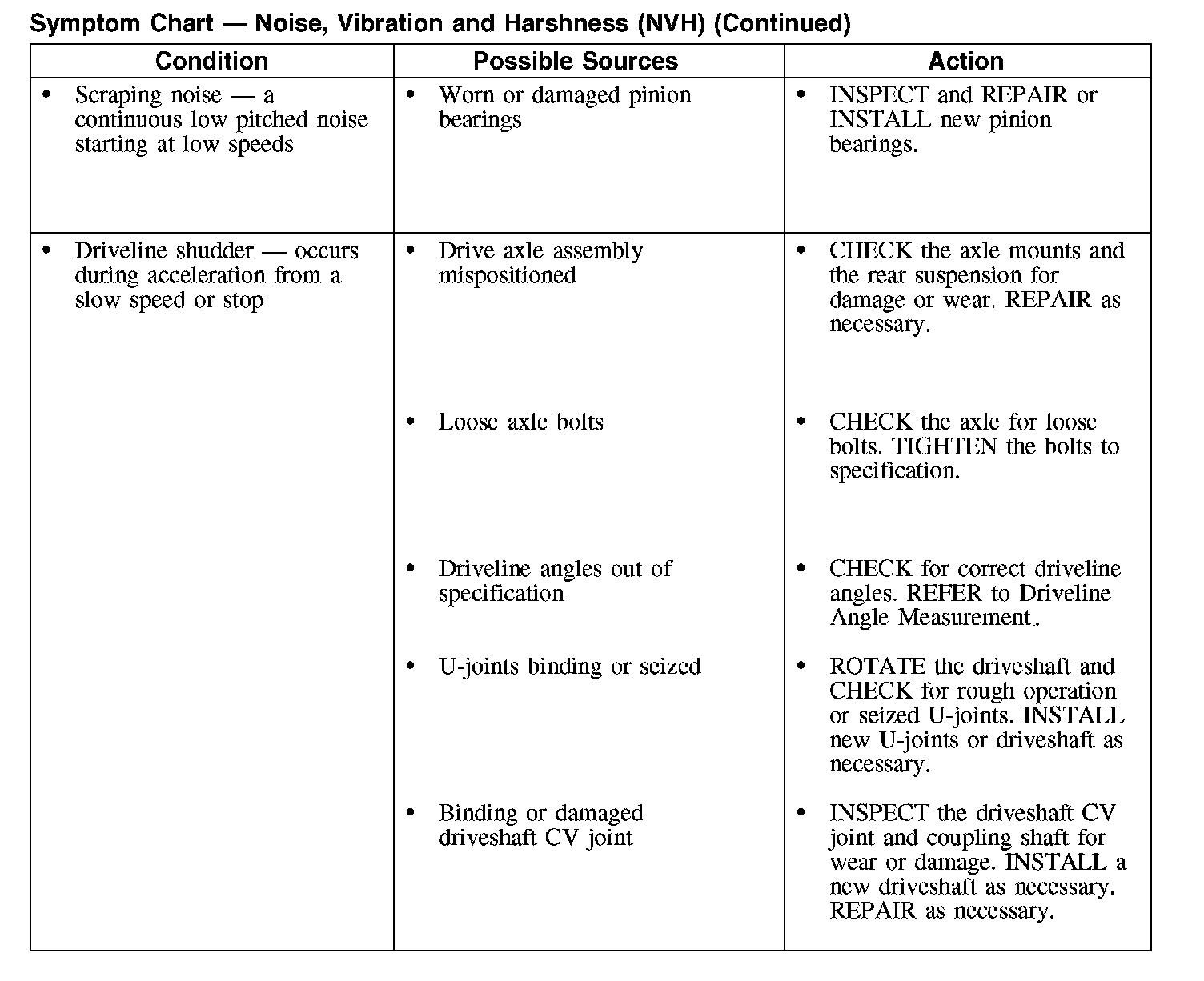

Symptom Chart - Noise, Vibration And Harshness (NVH) (Part 2):
