Flywheel Runout Check

Flywheel Runout Check

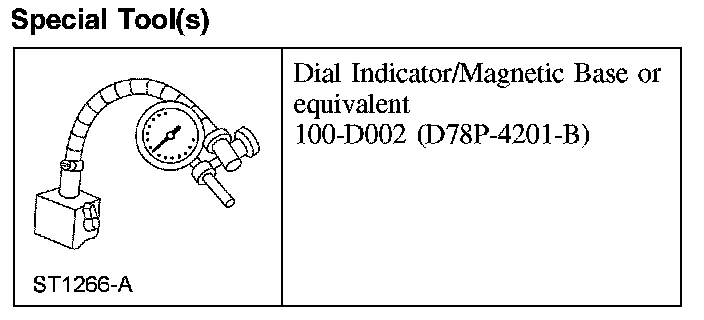

1. Using the special tool, inspect the flywheel runout.
^ If the pilot bearing is worn or damaged, install a new pilot bearing.
^ Mount the special tool so that the indicator contact point rides on the clutch disc contact surface. Turn the flywheel.
^ If the runout exceeds the maximum allowance, install a new flywheel.
