Wiper Motor: Service and Repair

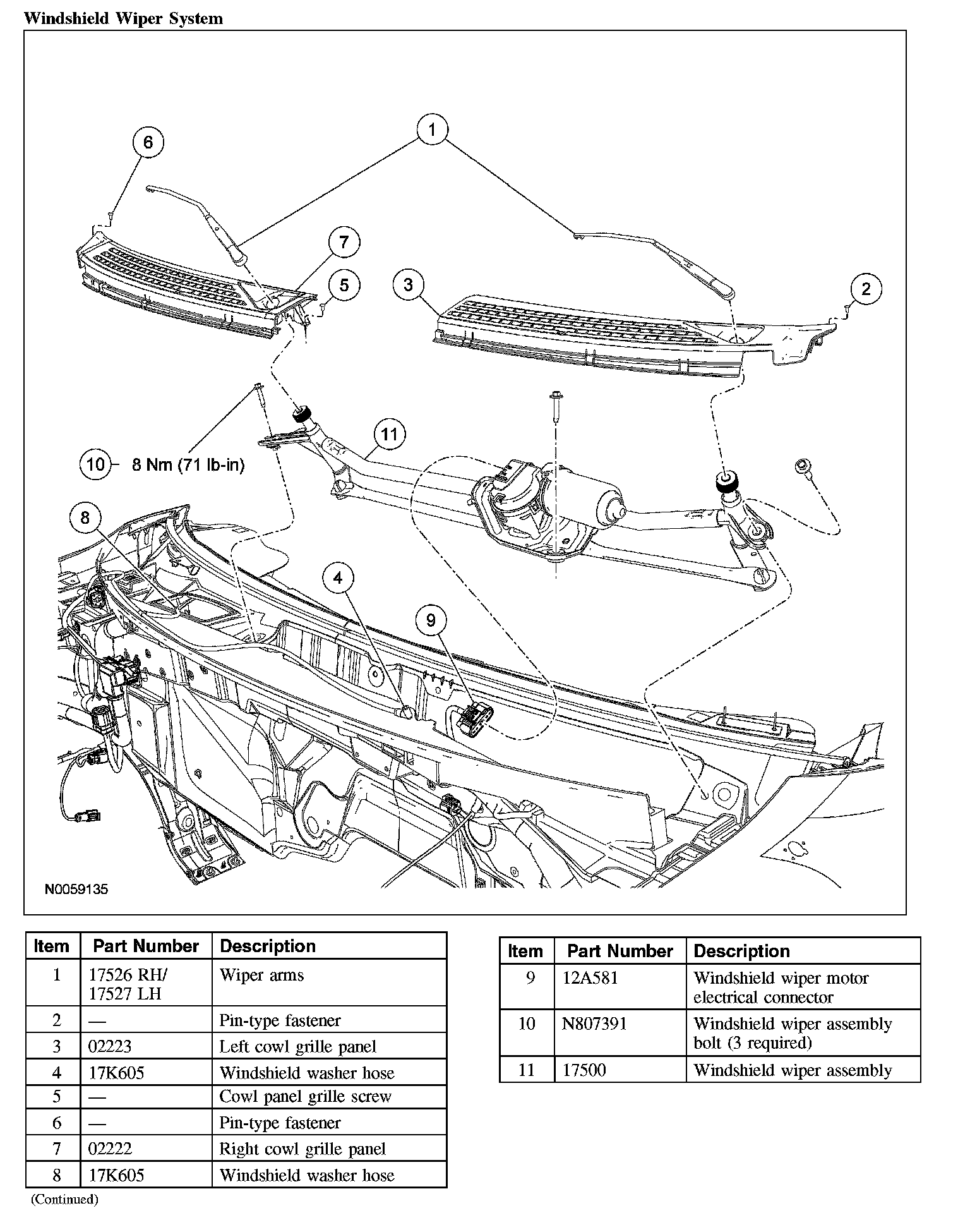

WIPER MOTORExploded View
Windshield Wiper System:
Windshield Wiper System:
Removal and Installation
1. Remove the wiper pivot arms.
2. Remove the cowl grille panel.
3. Disconnect the windshield wiper motor electrical connector.
4. Remove the 3 windshield wiper motor assembly bolts.
- To install, tighten to 8 Nm (71 lb-in).
5. Remove the windshield wiper motor assembly.
6. To install, reverse the removal procedure.
