Speed Control Switch - With Remote Audio/Climate Controls

SPEED CONTROL SWITCH - WITH REMOTE AUDIO/CLIMATE CONTROLS

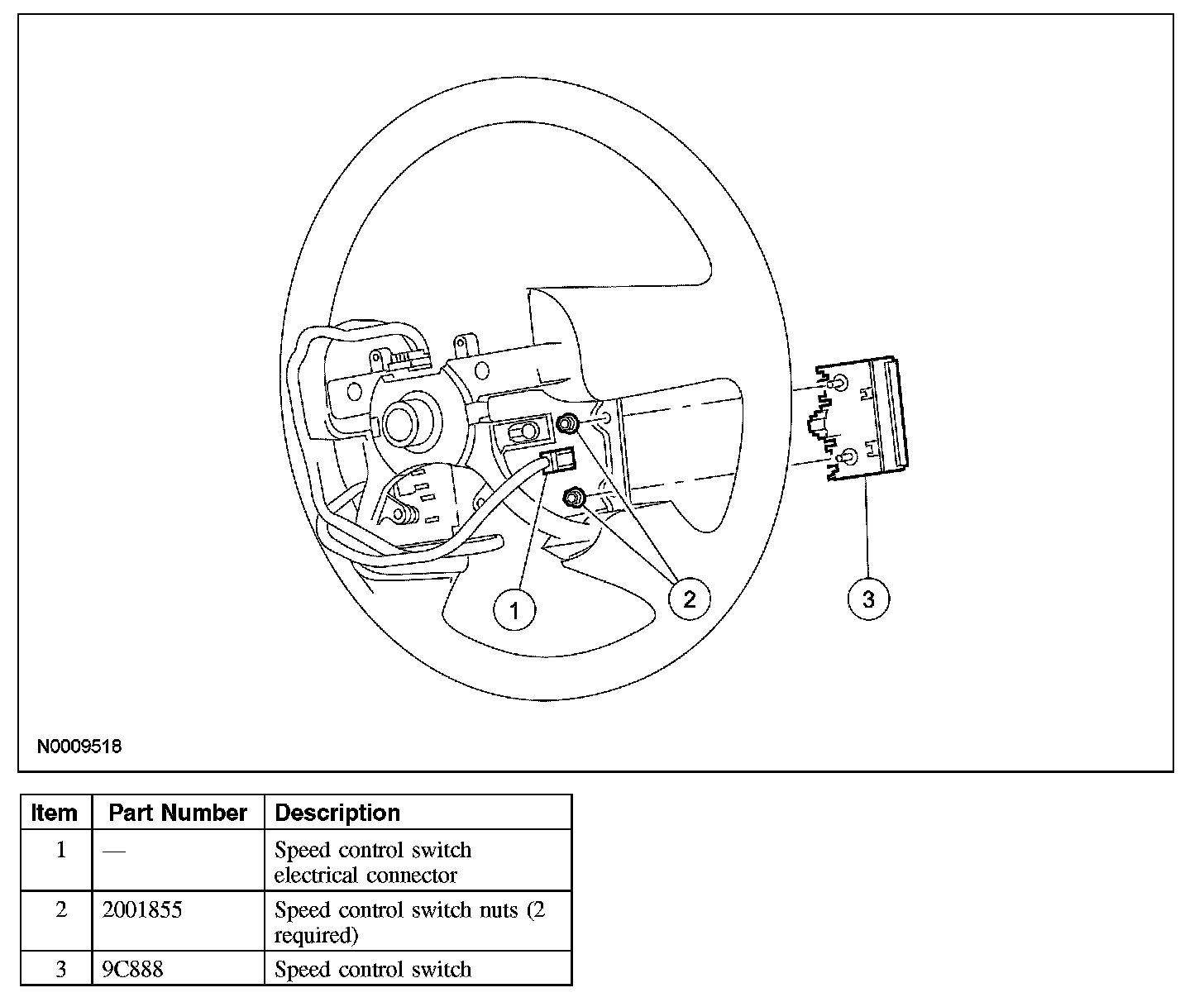

Removal and Installation
1. Remove the steering wheel.
2. Remove the steering wheel base cover.
3. Disconnect the speed control switch electrical connector.
4. Remove the 2 nuts and the speed control switch.
5. To install, reverse the removal procedure.
