Speed Control Switch - Without Remote Audio/Climate Controls

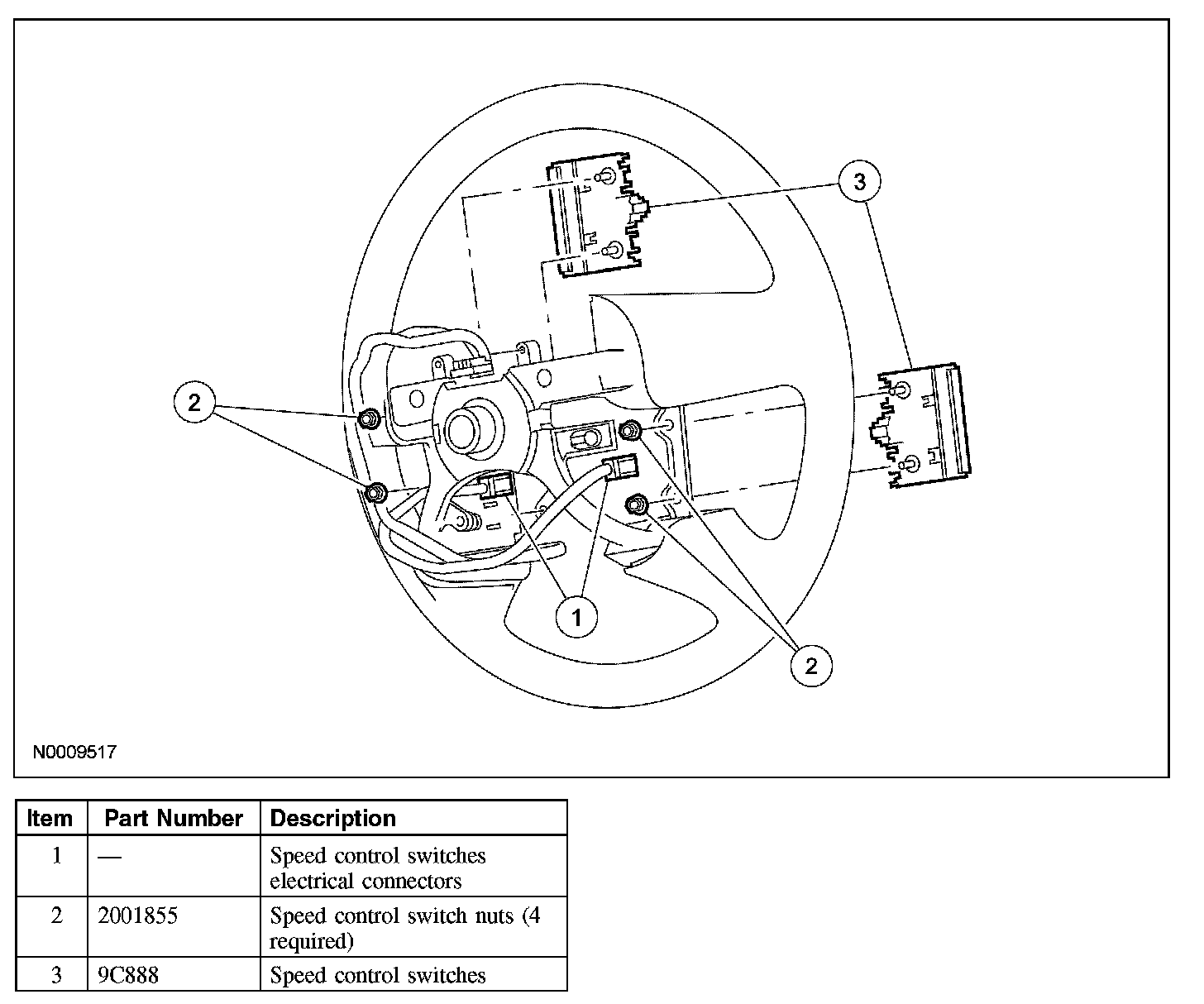

SPEED CONTROL SWITCH - WITHOUT REMOTE AUDIO/CLIMATE CONTROLS







Removal and Installation
1. Remove the steering wheel.
2. Remove the steering wheel base cover.
3. Disconnect the speed control switches electrical connectors.
4. Remove the 4 nuts and the speed control switches.
5. To install, reverse the removal procedure.
