Inertia Fuel Shutoff Switch: Service and Repair

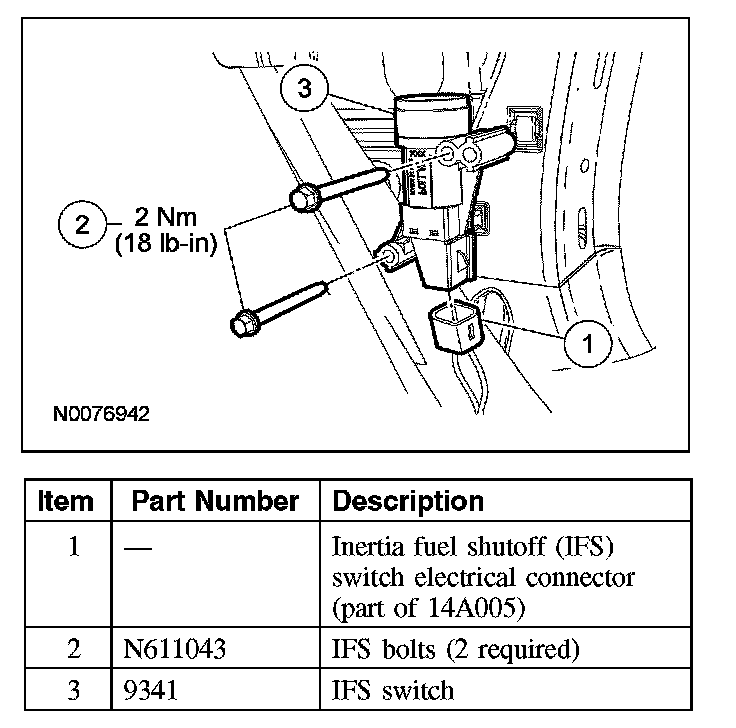

INERTIA FUEL SHUTOFF (IFS) SWITCH







Removal and Installation
1. Remove the RH cowl side trim panel.
2. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.
3. Remove the 2 IFS bolts and the IFS switch.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
