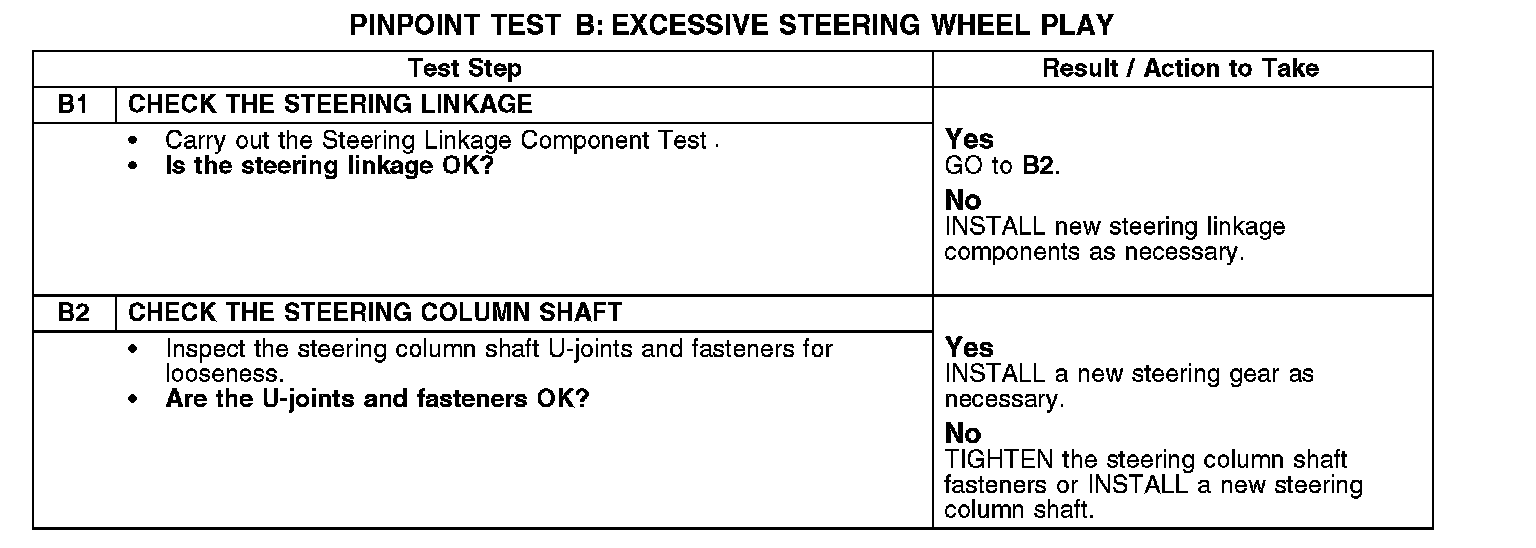

Test B: Excessive Steering Wheel Play

Pinpoint Test B: Excessive Steering Wheel Play
This pinpoint test is intended to diagnose the following:
^ Steering linkage
^ Steering column shaft
^ Steering gear

B1-B2:
