Main Components and Functions
Main Components and Functions

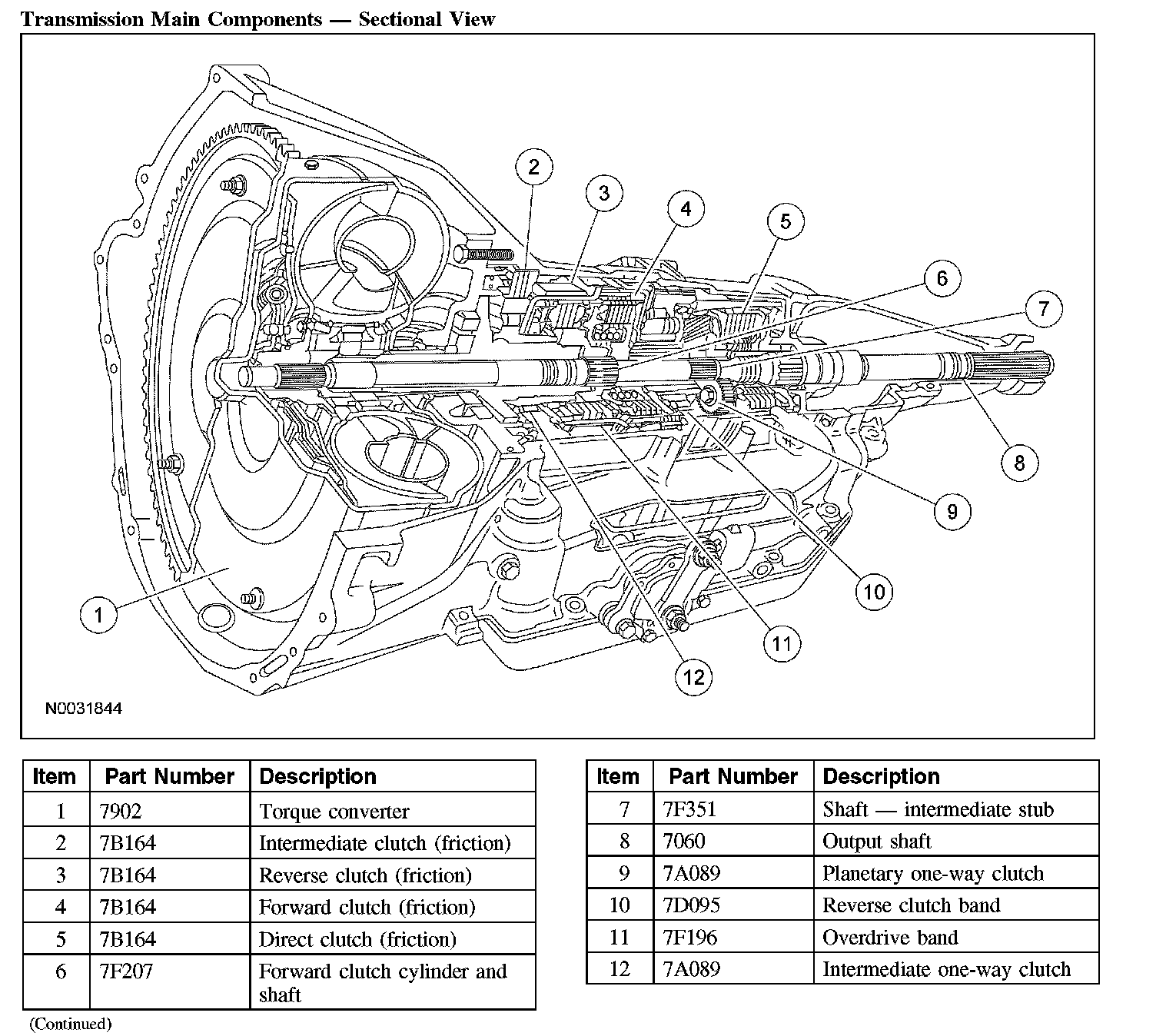

Transmission Main Components - Sectional View:
