Selector Lever - Floor Shift:

Removal
1. Remove the floor console left side kick panel.





2. Lift the console storage lid cover and remove the console finish panel.





3. Disconnect the selector lever cable from the arm of the selector lever.





4. Disconnect the selector lever cable from the selector lever cable bracket on the selector lever.





5. Remove the selector lever bolts.





6. Disconnect the selector lever electrical connector and remove the selector lever from the vehicle.





Installation
1. Position the selector lever assembly in the console and install the bolts.
^ Tighten to 12 Nm (9 lb-ft).





2. Connect the selector lever harness electrical connector.





3. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place and the selector lever cable end is snapped onto the ball stud. Press the selector lever cable into the bracket and listen for the selector lever cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the bracket. Also make sure that the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed.

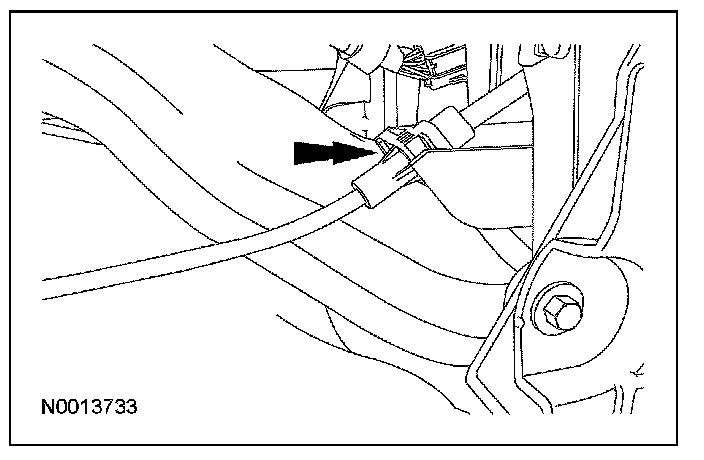

Install the selector lever cable in the selector lever cable bracket.





4. NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place and the selector lever cable end is snapped onto the ball stud. Press the selector lever cable into the bracket and listen for the selector lever cable to click in place. Pull back on the selector lever cable to make sure that it is locked into the bracket. Also make sure that the selector lever cable end is correctly installed onto the ball stud. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed.

Connect the selector lever cable to the selector lever arm.





5. Install the console finish panel.
6. Install the left console kick panel.
