Ford 10.25-Inch Ring Gear
>>

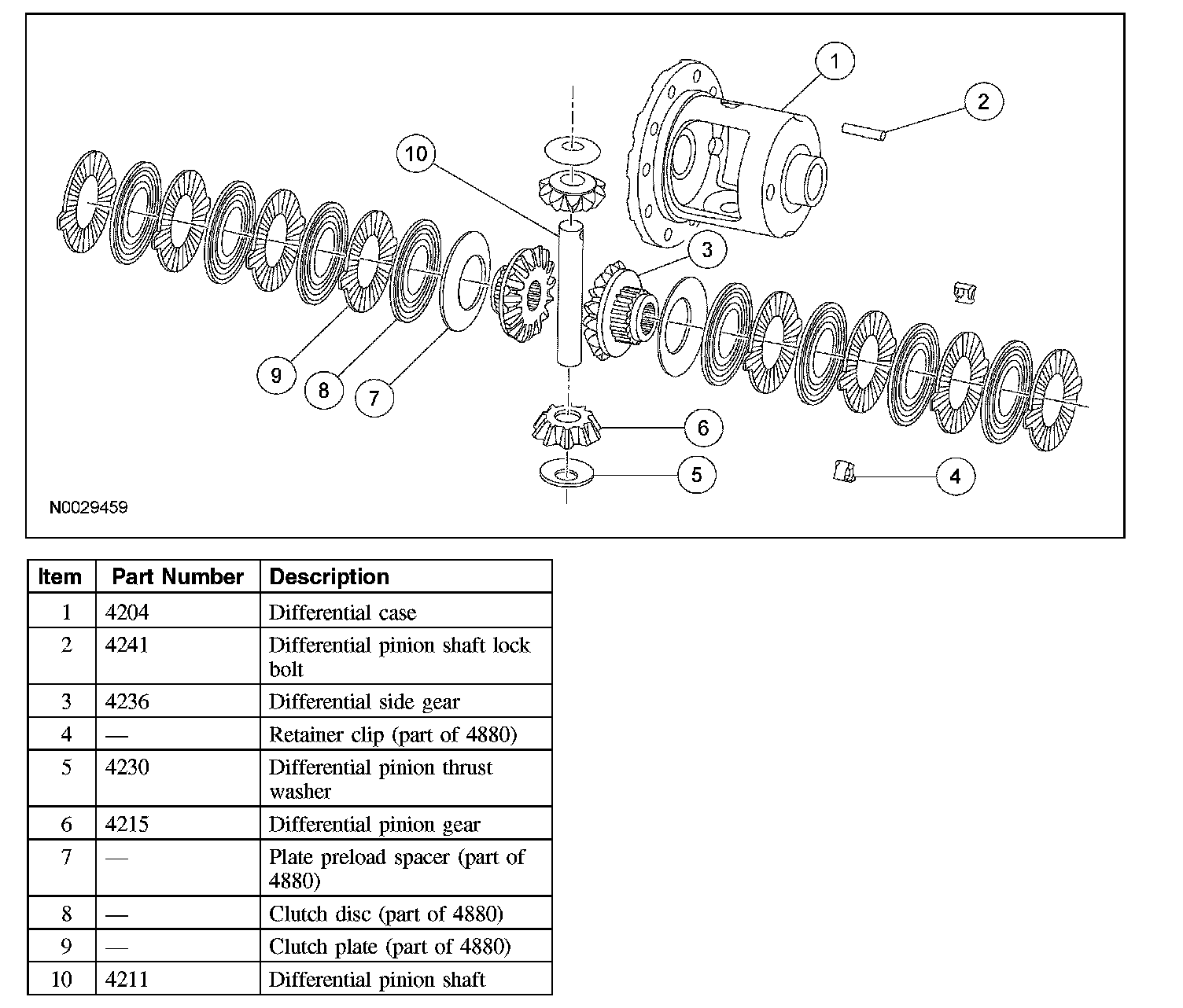

Differential Case and Ring Gear - Traction-LOK
Differential Case and Ring Gear - Traction-LOK
