Procedures

Transmission Draining and Filling

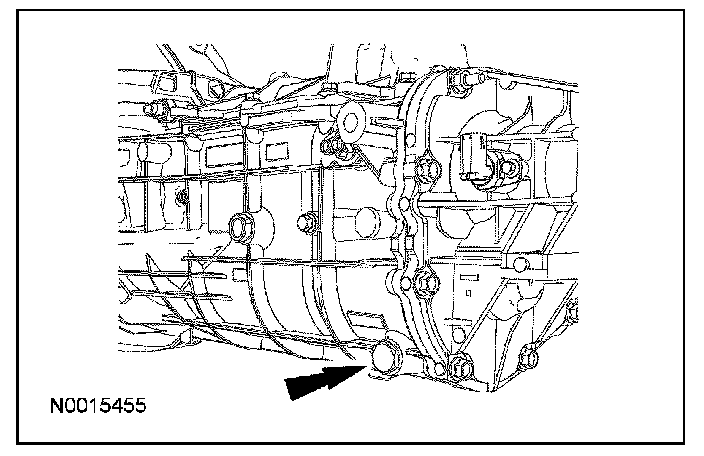

1. NOTE: Position a suitable drain pan under the transmission.

Remove the drain plug and drain the transmission.





2. Clean and reinstall the drain plug.
^ Tighten to 48 Nm (35 lb-ft).

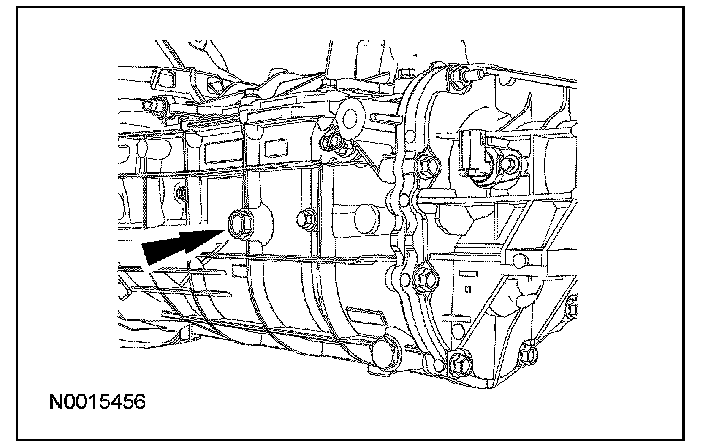

3. NOTE: Clean the area around the filler plug.

Remove the filler plug.





4. NOTE: Fill the transmission with the vehicle on a level surface.

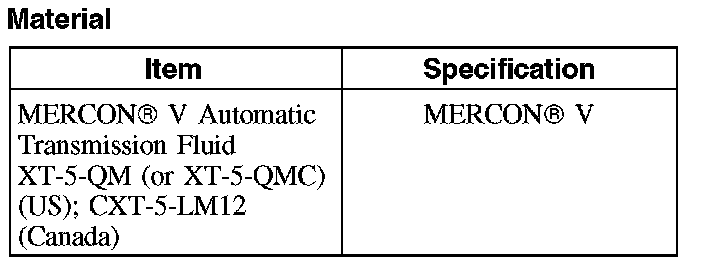

Using a suitable oil suction gun, fill the transmission to the correct level with the specified fluid. The fluid must be just below the fill plug hole.
^ Transmission capacity is 3.5L (3.1 qt).
5. Install the filler plug.
^ Tighten to 48 Nm (35 lb-ft).
