Bucket Seat

SEAT RECLINER - FRONT, BUCKET SEAT

Exploded View

20 Percent Seat Backrest:

20 Percent Seat Cushion:

Bench Seat Backrest (Part 1):

Bench Seat Backrest (Part 2):

Bench Seat Cushion (Part 1):

Bench Seat Cushion (Part 2):

Bucket Seat Backrest:

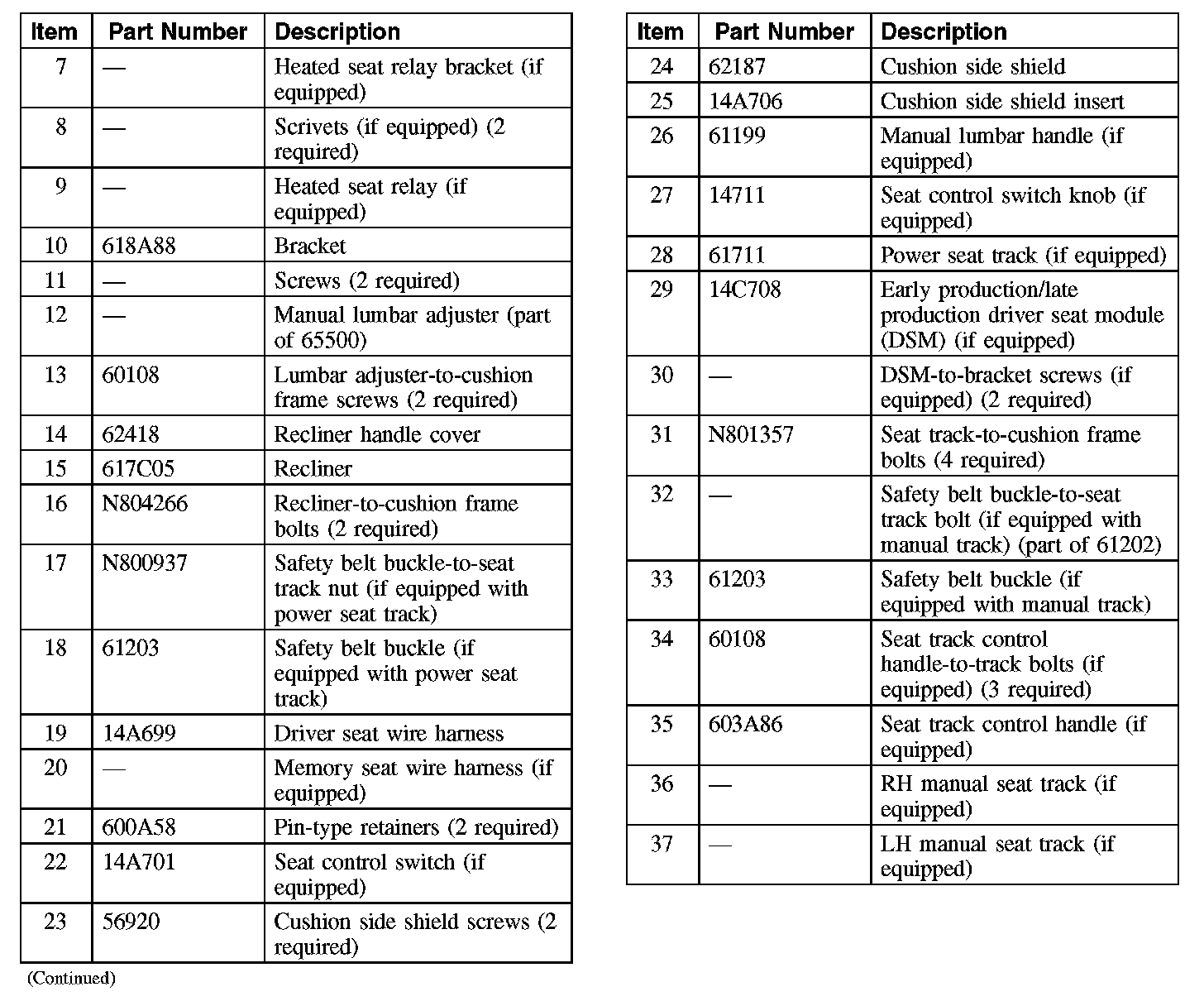

Bucket Seat Cushion (Part 1):

Bucket Seat Cushion (Part 2):

Removal and Installation

All seats
1. Remove the front seat.

Seats with manual lumbar
2. Remove the manual lumbar handle.
1 Locate the slot in the manual lumbar handle.
2 Pry at 90 degrees of each side of the slot to release the tabs.
- Remove the manual lumbar handle.







All seats
3. Release the clip and slide the recliner handle cover off.







4. Release the clips, slide forward and separate the cushion side shield insert.







5. Disconnect the seat control switch (if equipped) and remove the cushion side shield insert.
6. Remove the pin-type retainers at the front and back of the cushion side shield.
7. Remove the 2 screws and cushion side shield.
8. Release the backrest trim cover lower J-clip.
9. Roll the backrest trim cover up enough to expose the recliner-to-backrest frame bolts.
10. Remove the recliner-to-backrest frame bolts.
- To install, tighten to 50 Nm (37 lb-ft).

11. Remove the 2 recliner-to-cushion frame bolts and recliner.
- To install, tighten to 50 Nm (37 lb-ft).

12. To install, reverse the removal procedure.
13. Install the front seat.

Driver seat
14. Prove out the SRS as follows:

Turn the ignition switch ON. Visually monitor the air bag warning indicator. The air bag warning indicator will light continuously for approximately 6 seconds and then turn OFF. If an air bag SRS fault is present, the air bag warning indicator will:
- fail to light.
- remain lit continuously.

The air bag warning indicator might not light until approximately 30 seconds after the ignition switch has been turned from the OFF to the ON position. This is the time required for the RCM to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the air bag warning indicator and any SRS fault discovered must be diagnosed and repaired.

Clear all continuous DTCs from the RCM using a scan tool.
