F 250 2WD Super Duty V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Accessories and Optional Equipment
>>
Communications Control Module
Communications Control Module

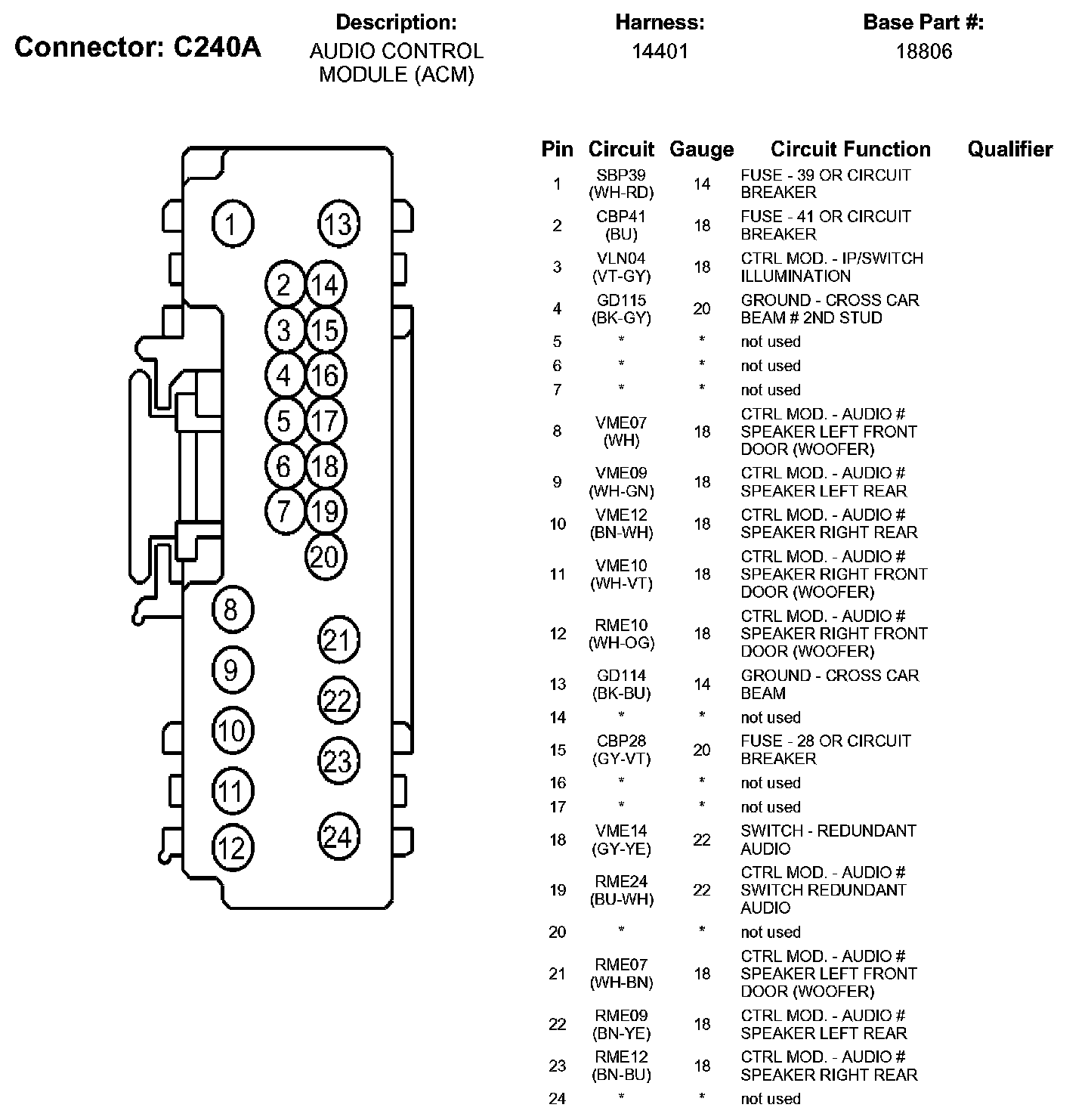

C240A:

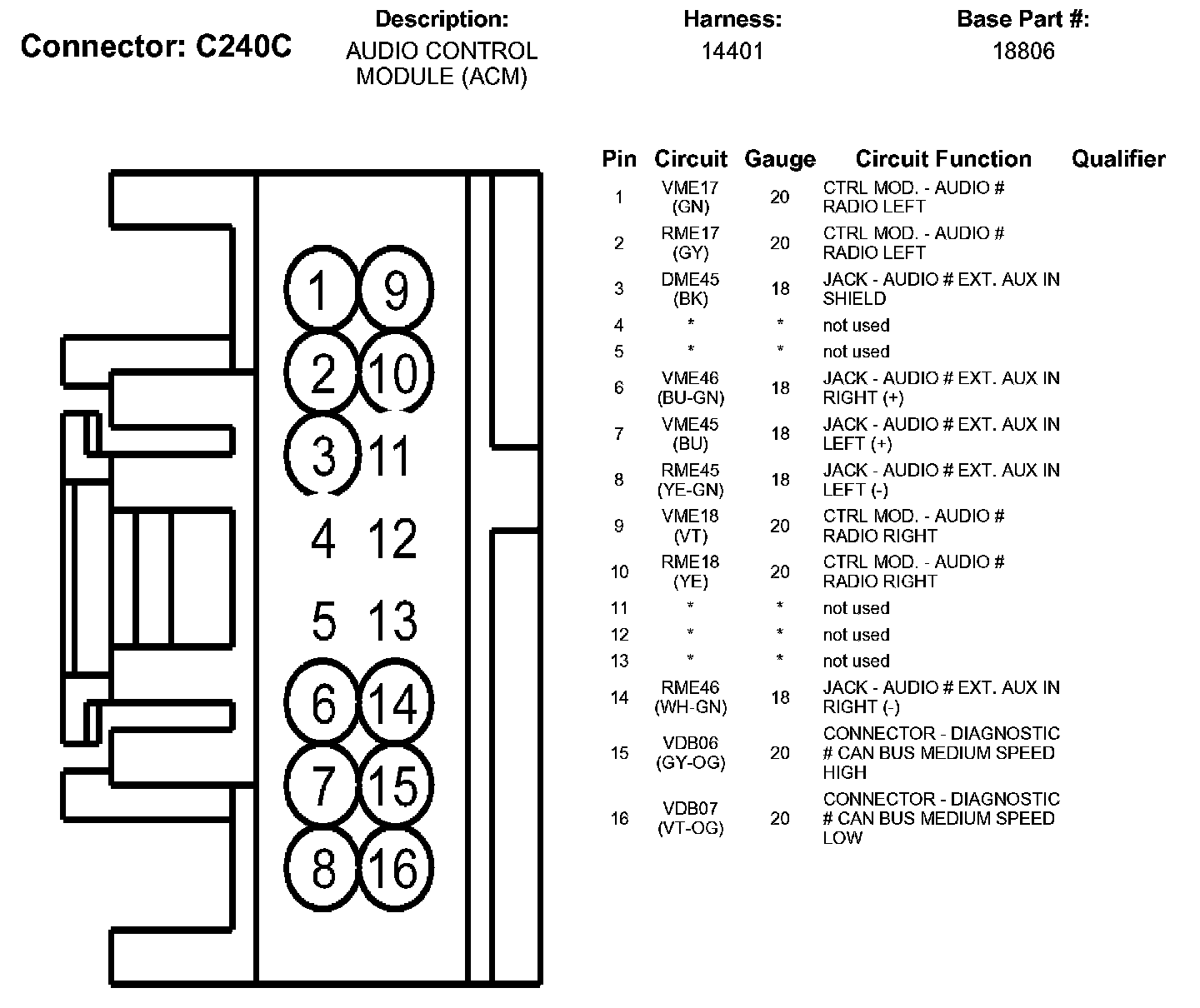

C240C:

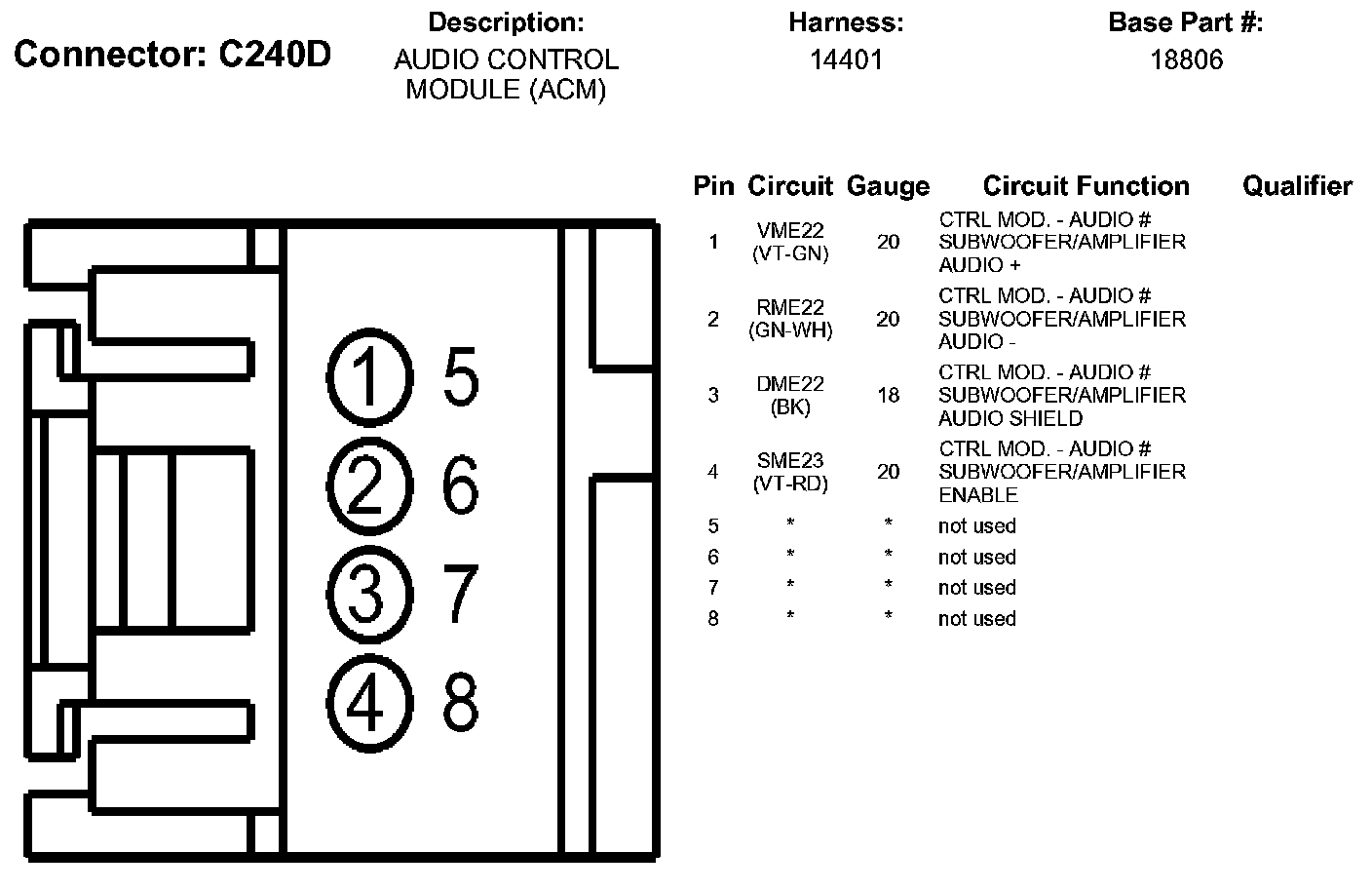

C240D:
