Wheel and Tire - Single Rear Wheel (SRW)
Wheel and Tire - Single Rear Wheel (SRW)Material:
Removal
1. If equipped, remove the wheel cover.
2. Check the torque for all of the wheel nuts. If any wheel nuts have a torque above 312 Nm (230 ft. lbs.), install all new wheel studs on that wheel hub.
3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
4. CAUTION: Do not use heat to loosen a seized wheel nut. Heat may damage the wheel and wheel bearings.
Remove the wheel nuts and the wheel and tire assembly.
Installation
1. Inspect the wheel and tire assembly for cracks, dents, leaks, severe wear or rust flaking. Install a new wheel if cracks or rust flaking of the surface exists.
2. WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign material present on the mounting surface of the wheel and the mounting surface of the wheel hub, brake drum or brake disc. Make sure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel. Failure to follow these instructions when installing wheels may result in the wheel nuts loosening and the wheel coming off while the vehicle is in motion, which could result in loss of control, leading to serious injury or death to vehicle occupant(s).
Clean the wheel to remove any loose paint, dirt, rust pitting or foreign material without damaging the metal.
^ Using a clean, dry shop towel, wipe off any excess metallic particles.
^ Re-inspect the wheel after cleaning. Fatigue cracks or rust flaking may be seen only after cleaning has been completed.
3. WARNING: Use only the specified lubricant on the wheel studs as directed in the following procedure. Incorrect lubricant application may result in insufficient wheel nut torque, resulting in possible wheel/tire separation from the vehicle. Failure to follow this instruction may result in serious injury to the vehicle occupant(s).
NOTE: Do not allow oil to build up in the wheel stud threads. Only use 2 to 3 drops of oil per wheel hub.
Apply 2 to 3 drops of the specified motor oil to a clean shop towel. Using the shop towel, apply the oil to the wheel stud threads.
^ Wipe off any excess oil from the wheel stud threads.
4. Install the wheel and tire assembly.
5. WARNING: Never use wheels different than the original equipment. Additionally, never use wheel nuts different than the original equipment. Failure to follow these instructions may result in damage to the wheel or mounting system. This damage could cause the wheel to come off while the vehicle is being driven, which could result in serious personal injury or death to vehicle occupant(s).
On all 2-piece flat wheel nuts, apply one drop of the specified motor oil between the flat washer and the nut. If corrosion exists, or the integral 2-piece swiveling wheel nuts do not rotate freely, install new swiveling wheel nuts as necessary.
^ Tighten the wheel nuts until snug in a criss-cross pattern to minimize runout.
6. WARNING: Retighten wheel nuts within 160 km (100 mi) after a wheel is reinstalled. For dual rear wheel (DRW) only, a second retightening is required within 800 km (500 mi). Wheels can loosen after initial tightening. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
CAUTION: Failure to tighten the wheel nuts in a criss-cross pattern may result in high wheel and tire runout, which will speed up the development of brake roughness, shudder and vibration.
NOTE: Torque specifications are for nut and bolt threads that are free of dirt and rust. Use only Ford recommended replacement fasteners.

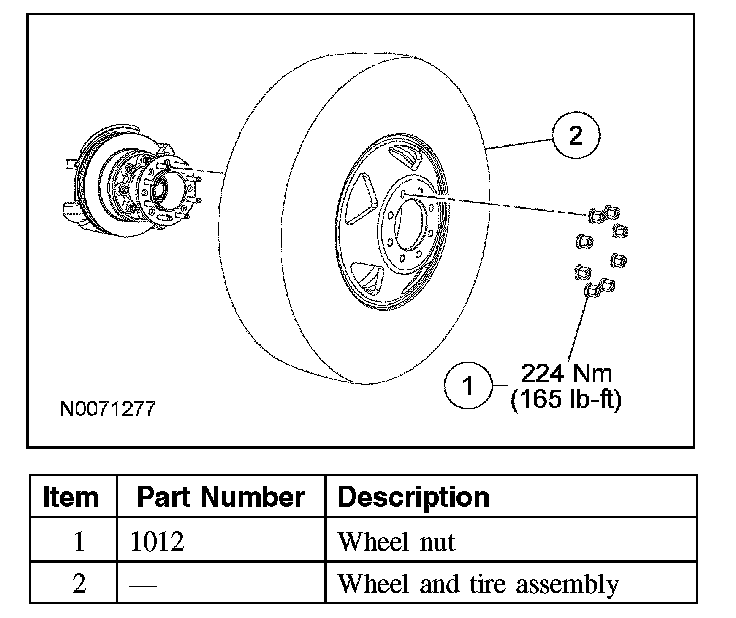

With the weight of the vehicle on the tires, tighten the wheel nuts to 224 Nm (165 ft. lbs.) in the sequence shown.
7. If equipped, install the wheel cover.
