Test L: The Memory Set Switch Indicator Is Inoperative/Always On

PINPOINT TEST L: THE MEMORY SET SWITCH INDICATOR IS INOPERATIVE/ALWAYS ON

Normal Operation
The memory SET switch indicator is supplied voltage, for approximately 5 seconds, from the driver seat module (DSM) on circuit CPS55 (YE) after the SET switch has been pressed. Ground is supplied at circuit GD179 (BK/VT). The indicator will turn off after memory switch 1 or memory switch 2 have been pressed or 5 seconds have elapsed.

- B2084 - Memory SET Indicator Short to Ground - If a short to ground or open condition is present on the memory SET switch indicator output circuit, the DTC is set.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Memory SET switch
- DSM

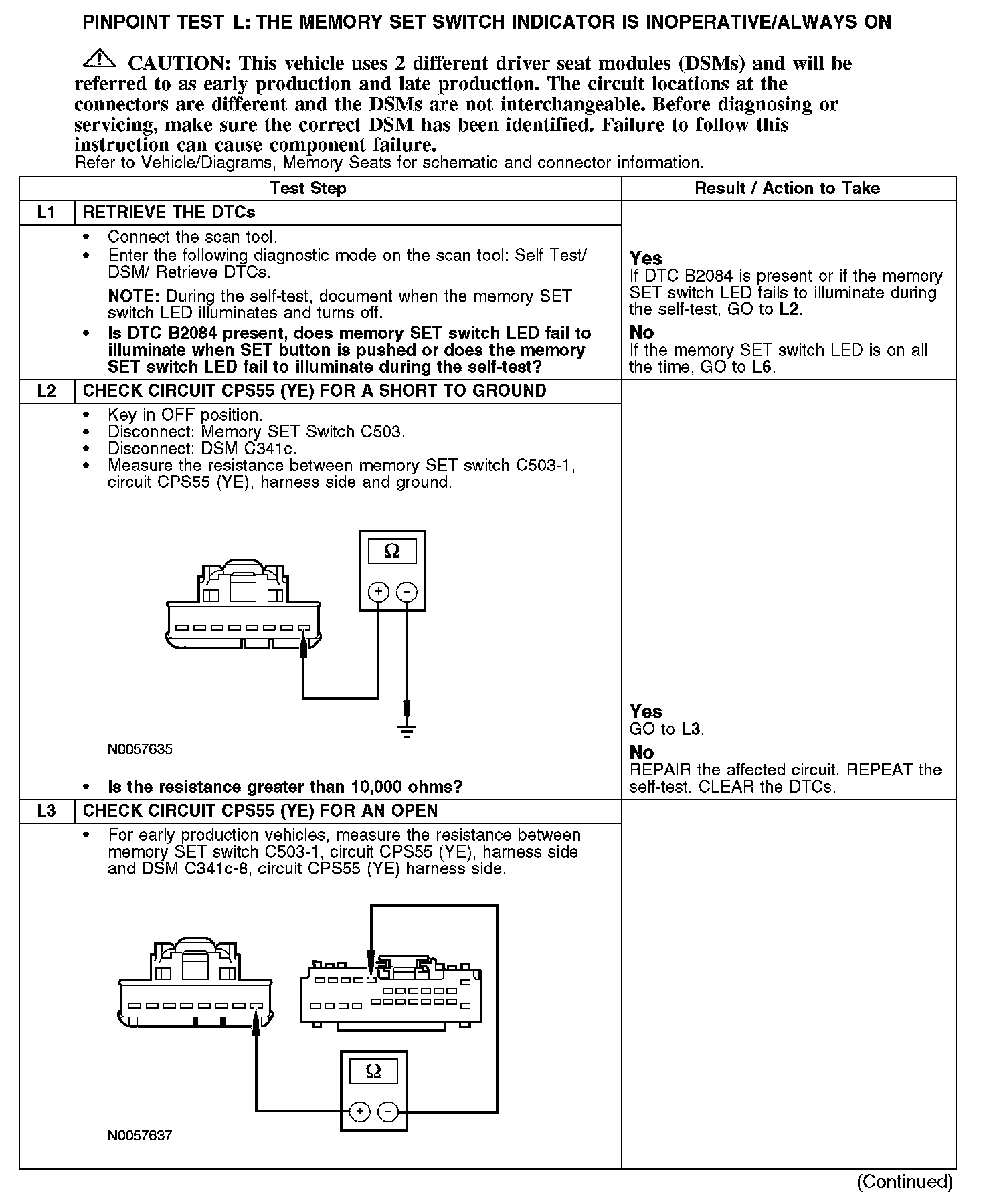

L1-L3:

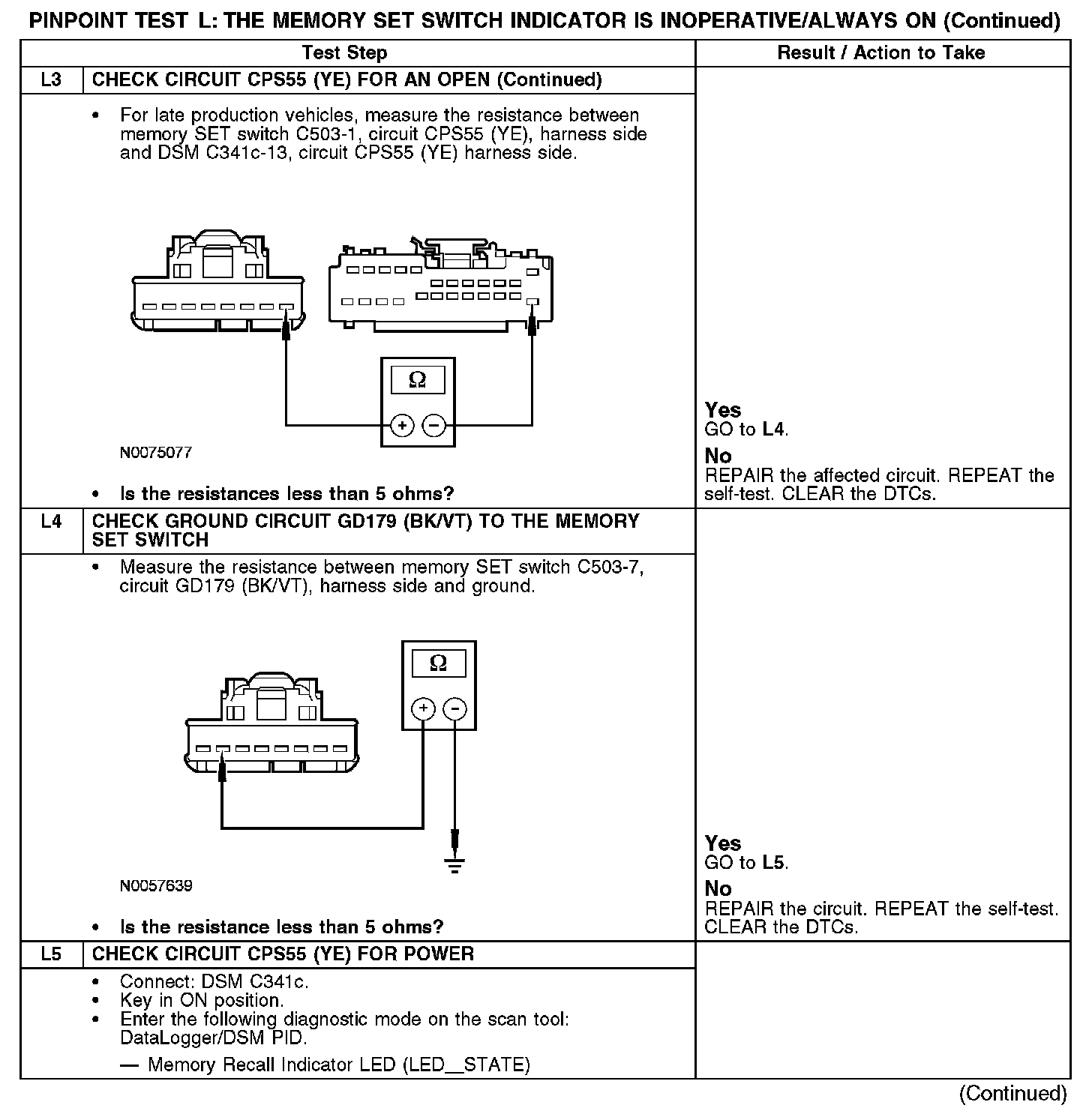

L3-L5:

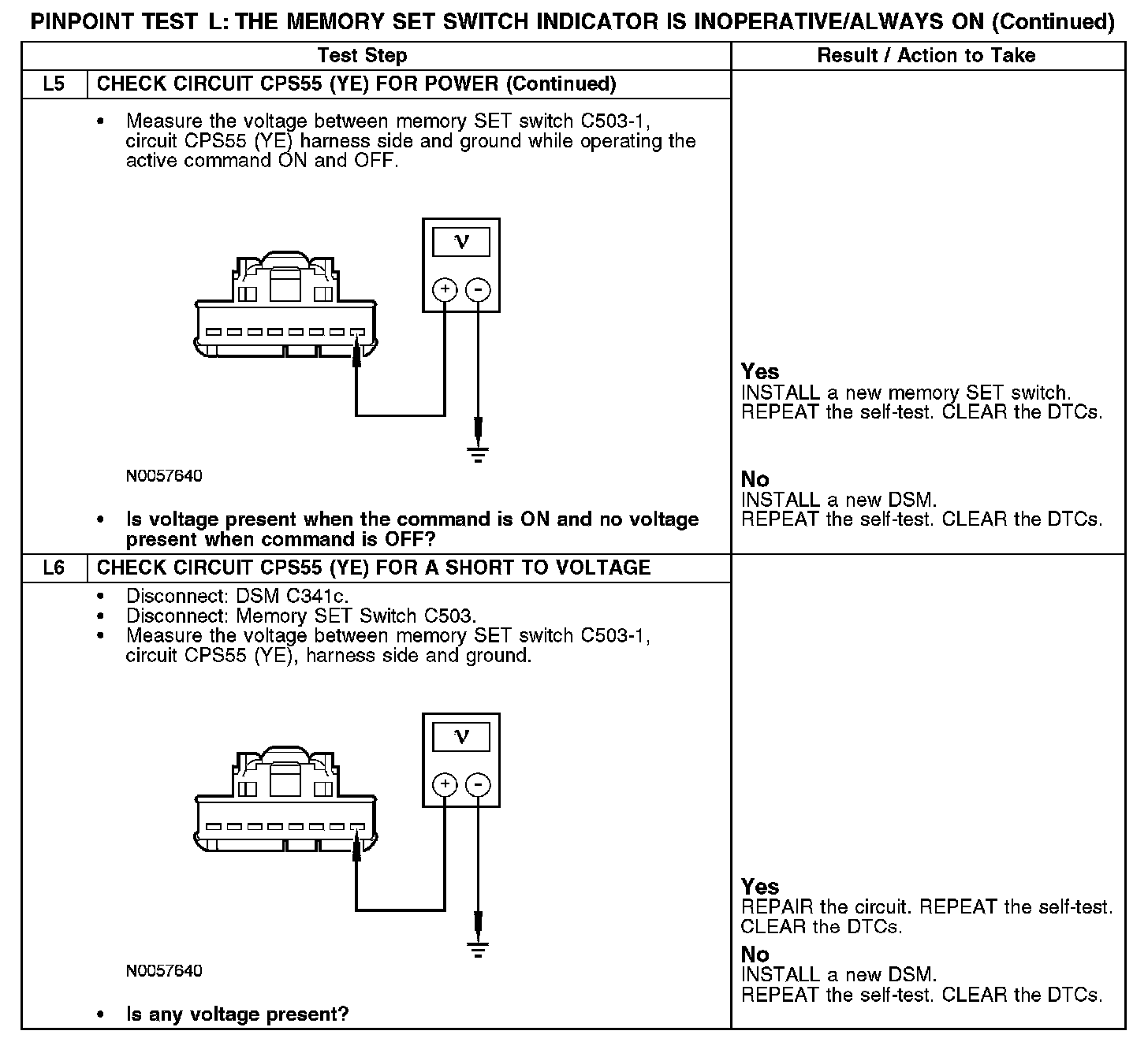

L5-L6:
