Home >> Ford >> 2008 >> F 250 4WD Super Duty V10-6.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C303-C411 >> C357

C357

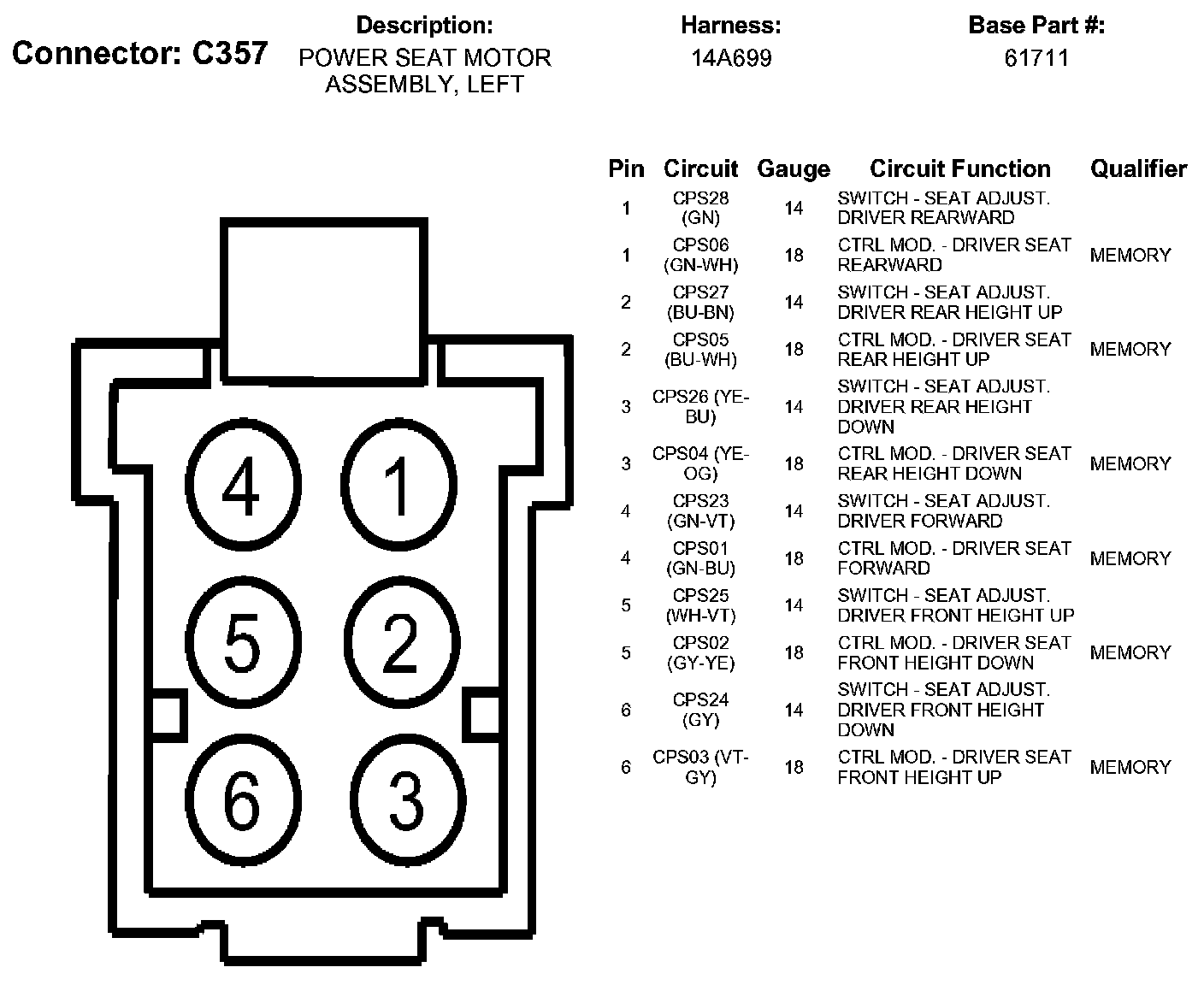

C357:



C372:



C373:



C383:
