Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2008
>>
F 250 4WD Super Duty V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
>>
System Diagram
>>
Fuel Pump Module
Fuel Pump Module

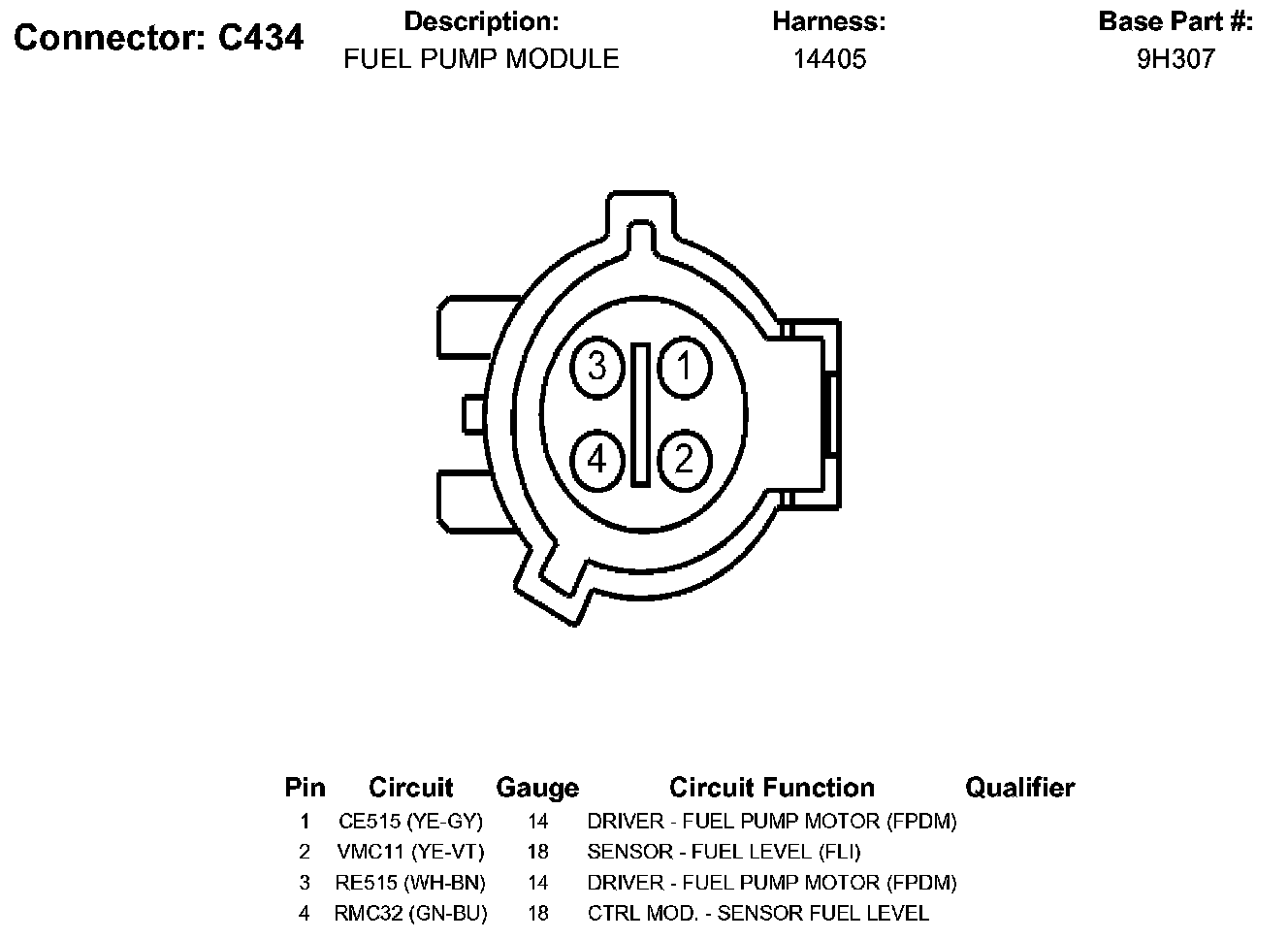

C434:

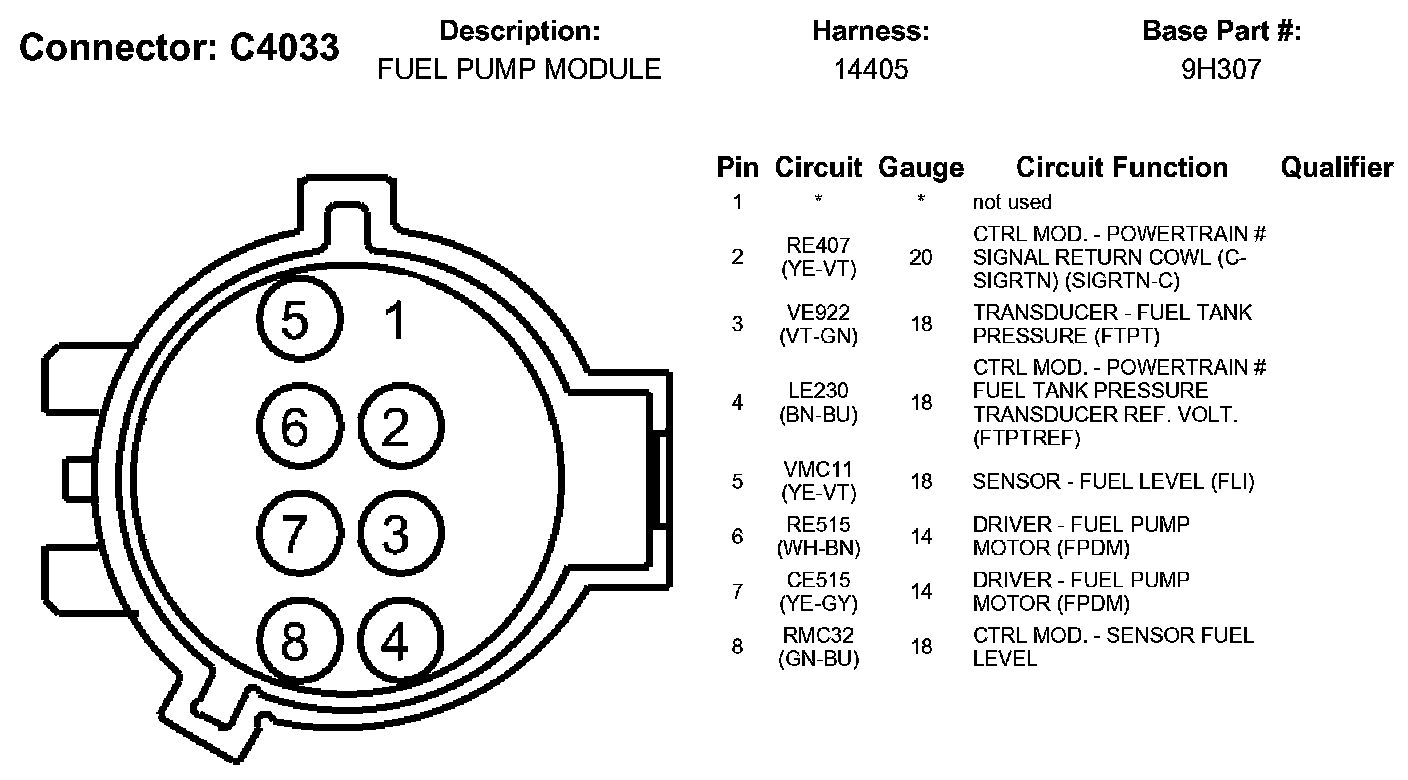

C4033:
