Catalyst Monitor Sensor

CATALYST MONITOR SENSOR







Explode View

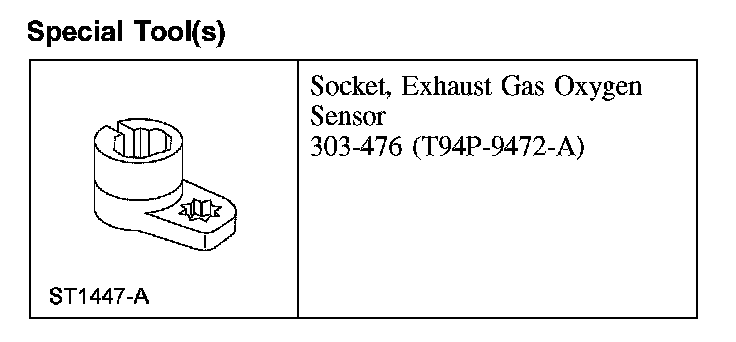

Special Tool(s):

Special Tool(s)

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the catalyst monitor sensor electrical connector.

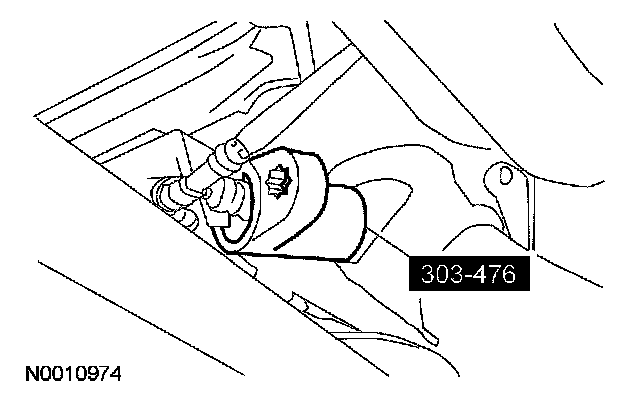

3. Using the special tool, remove the catalyst monitor sensor.
- Apply penetrating lubricant to the catalyst monitor sensor to assist in removal.

Installation

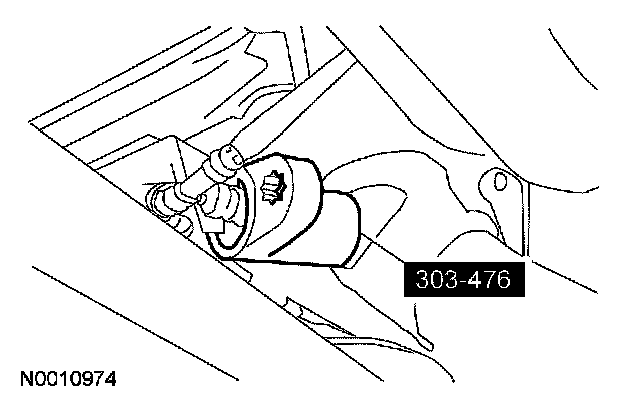

1. Using the special tool, install the catalyst monitor sensor.
- To install, tighten to 46 Nm (34 lb-ft).
- Apply a light coat of high temperature nickel anti-seize lubricant to the catalyst monitor sensor threads prior to installation.

2. Connect the catalyst monitor sensor electrical connector.
