PINPOINT TEST K: LFC 42/DTC B2296 - RESTRAINT SYSTEM - IMPACT SENSOR FAULT

Normal Operation

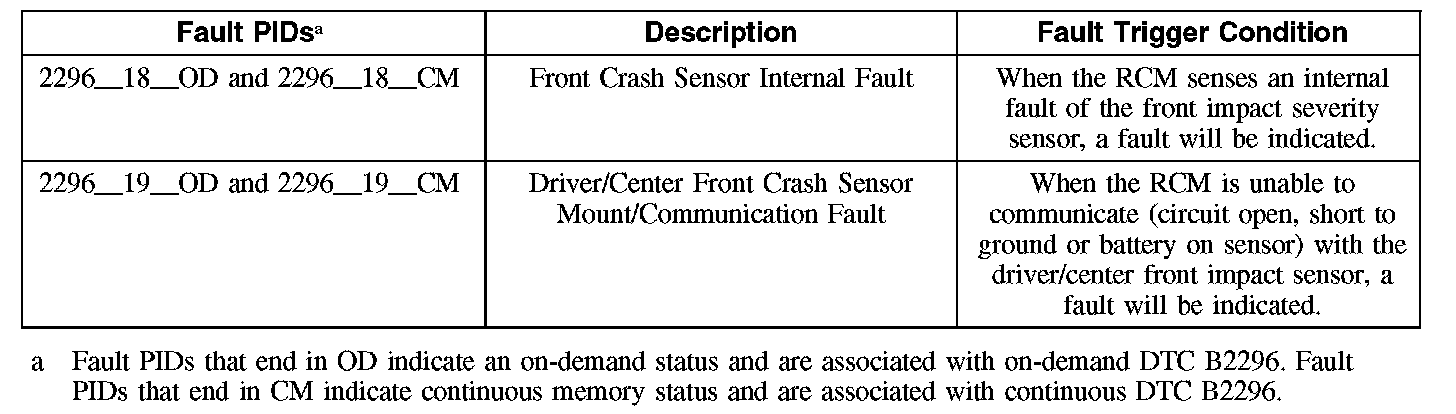

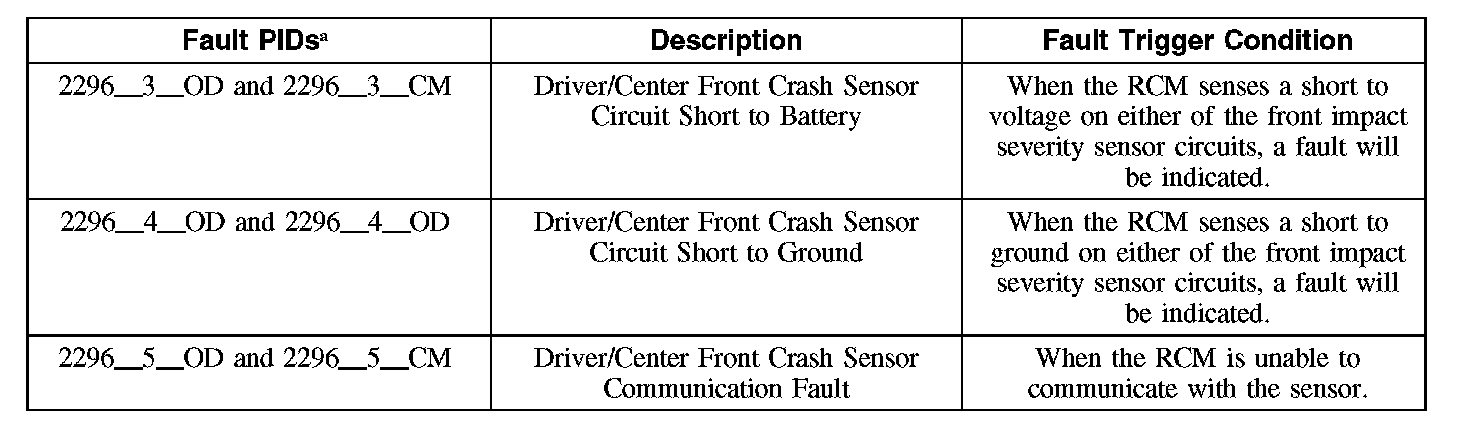

The restraints control module (RCM) monitors all of the impact sensor circuits for faults. If the RCM detects a low resistance, open circuit, a short to ground or a short to voltage on any of the impact sensor circuits, it will store DTC B2296 in memory and send a message to the instrument cluster (IC) module to flash LFC 42 (or higher priority code if one exists) on the air bag warning indicator.

Part 1:

Part 2:

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Impact sensor
- Incorrect sensor mounting
- RCM

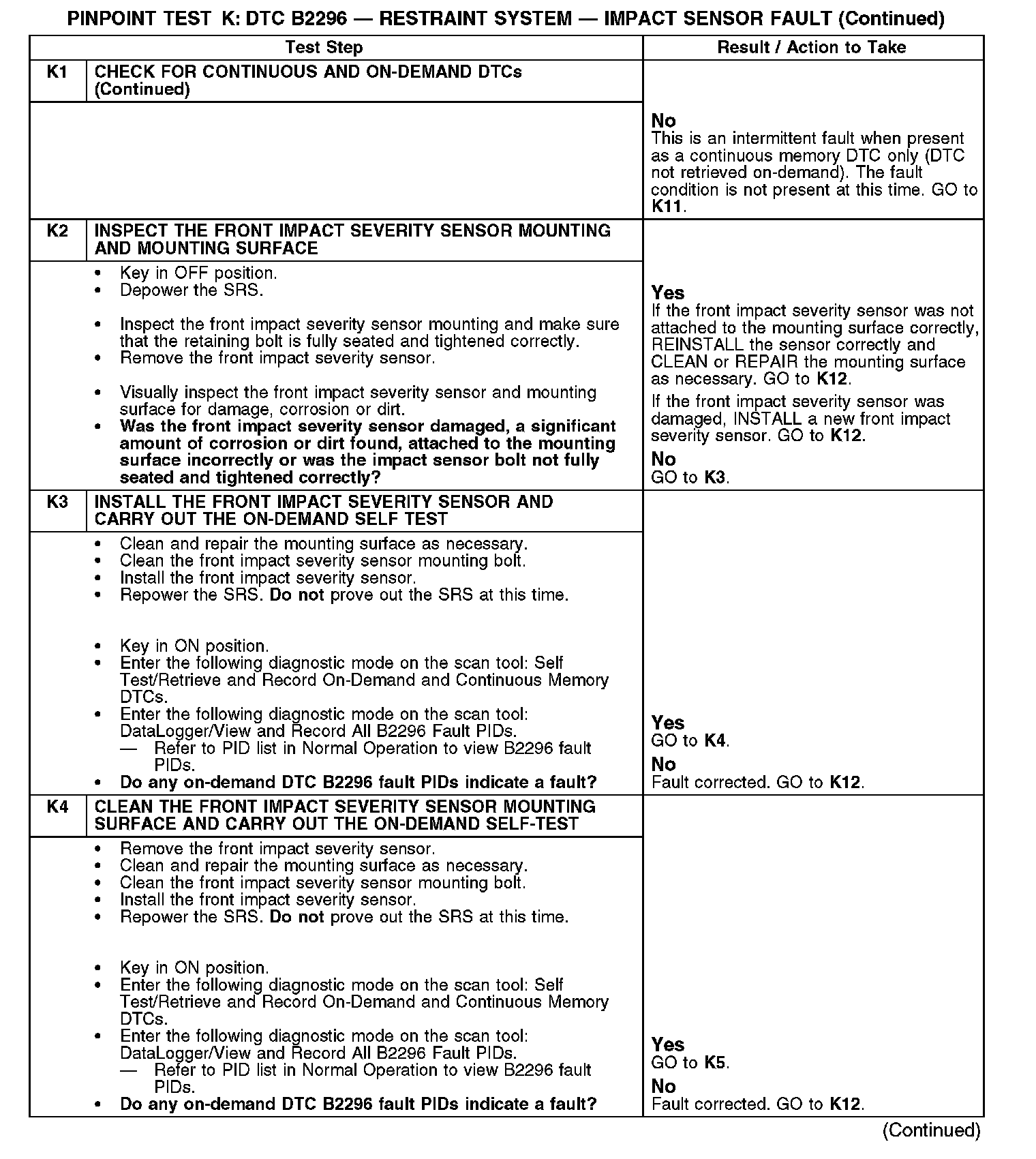

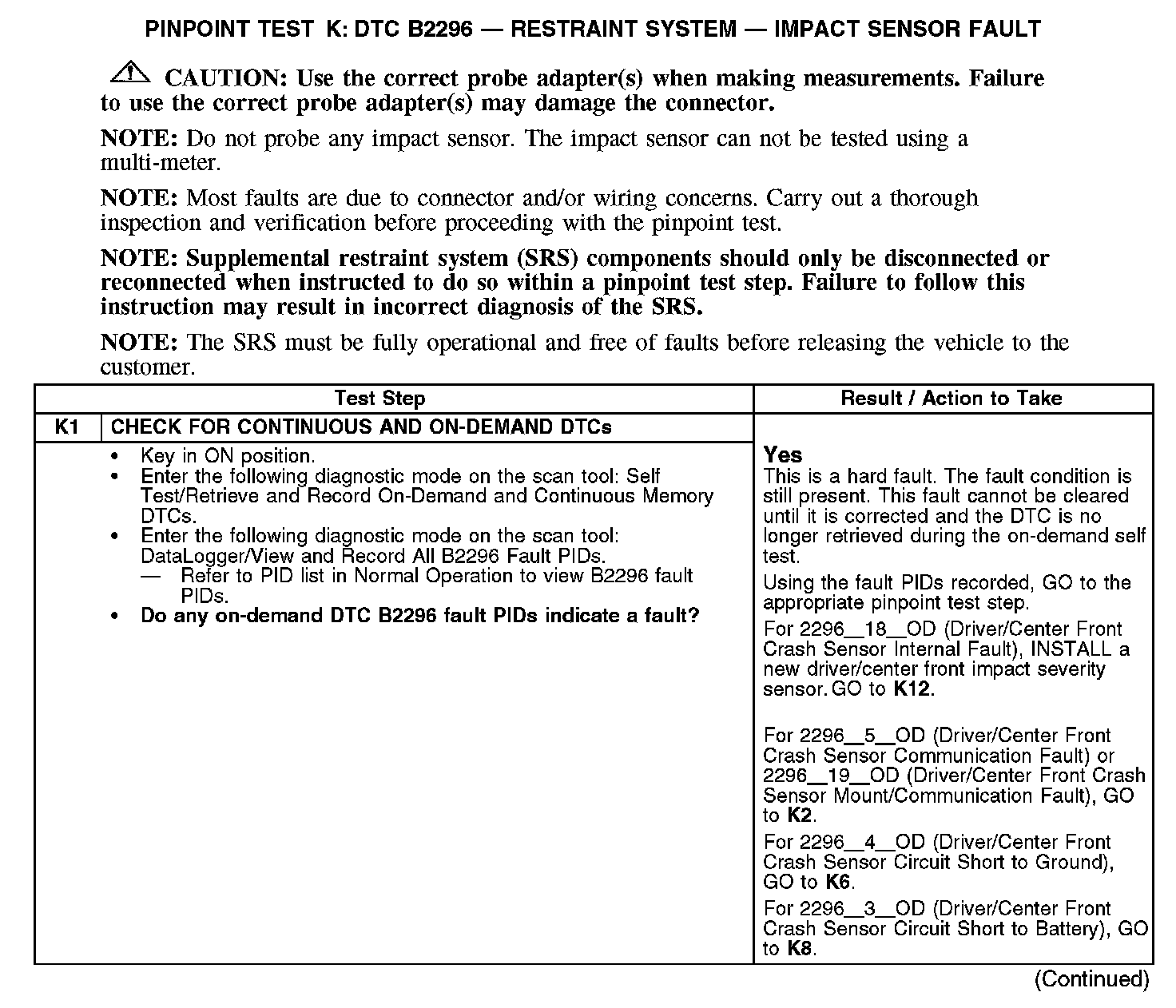

K1:

K1-K4:

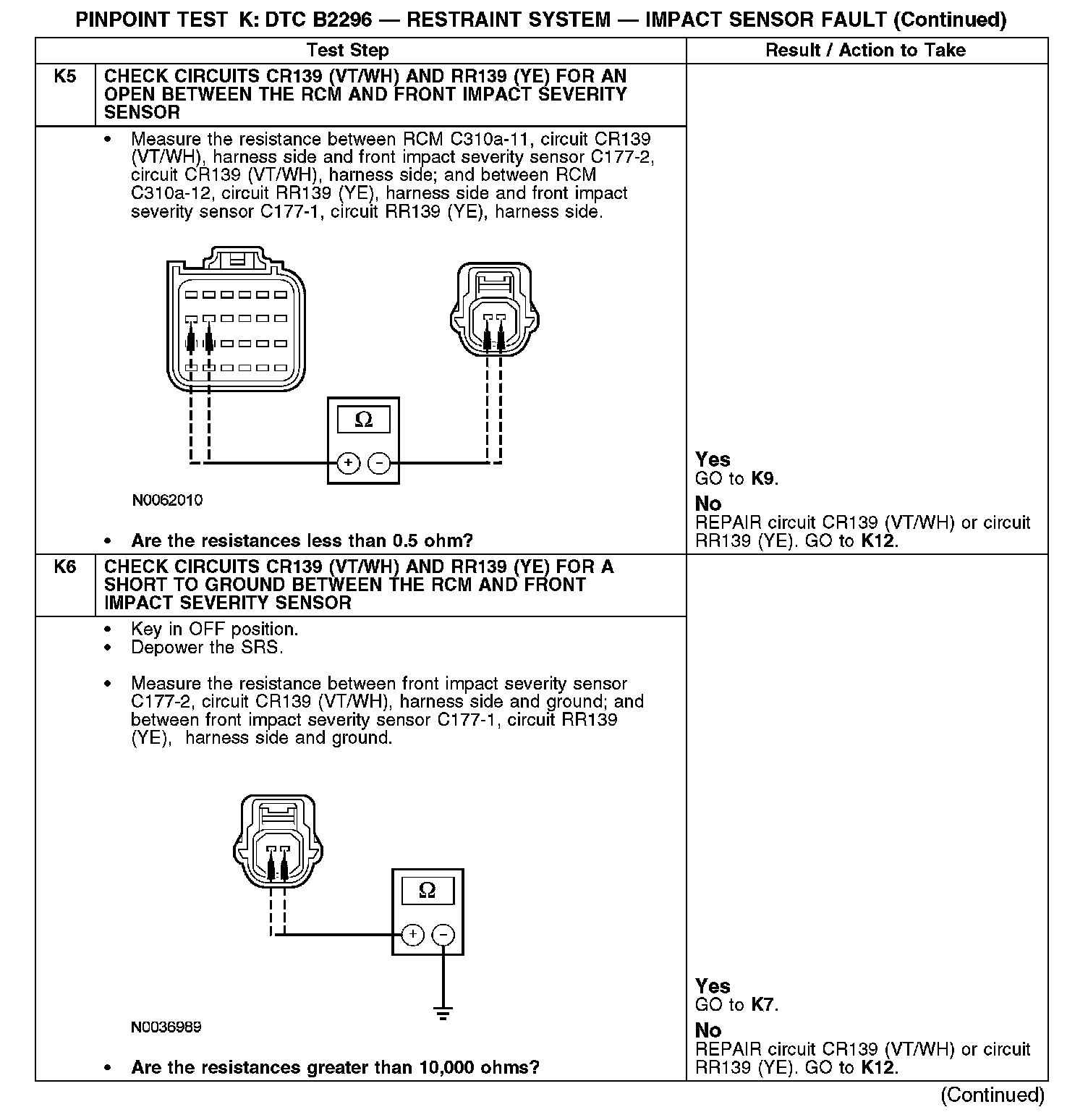

K5-K6:

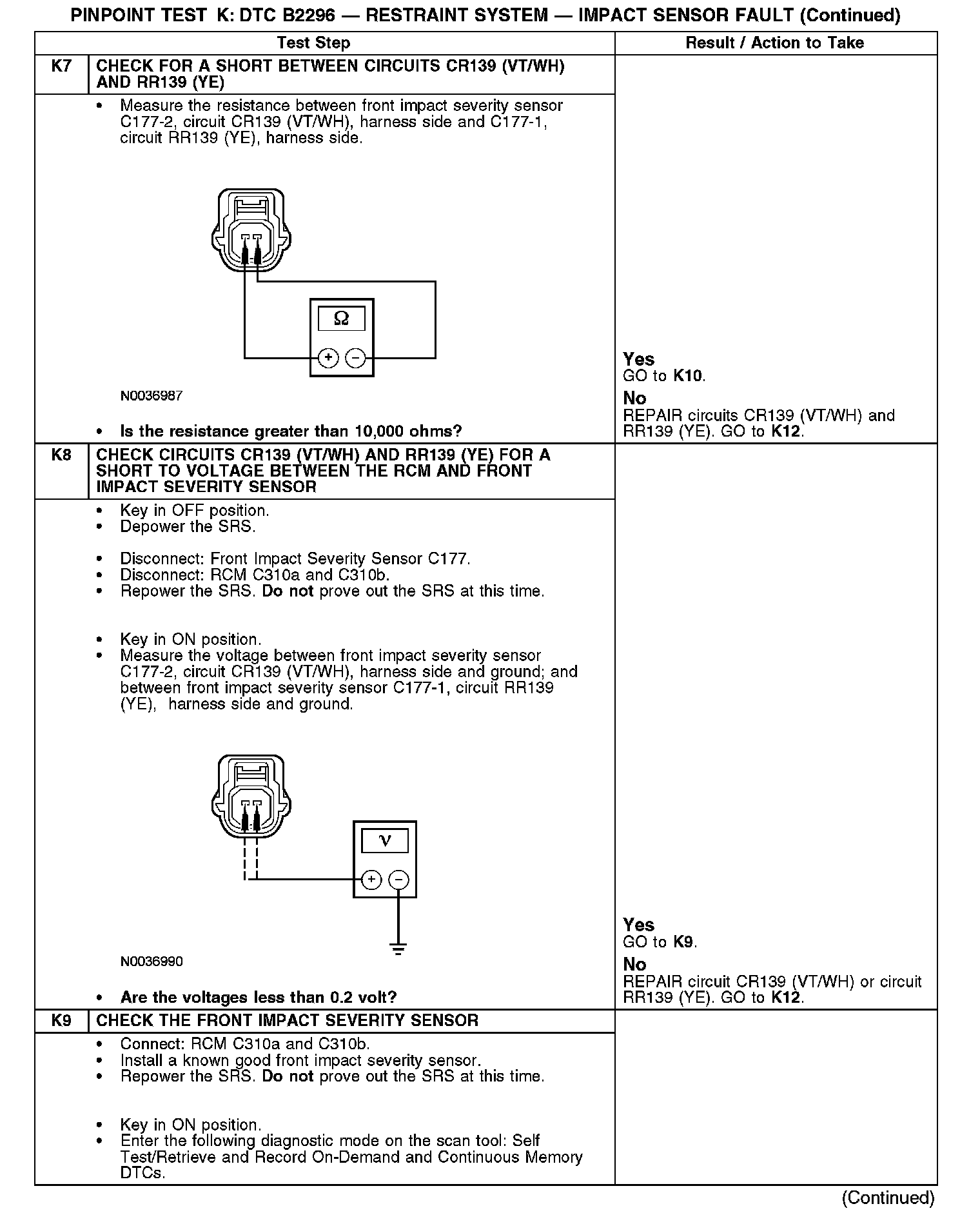

K7-K9:

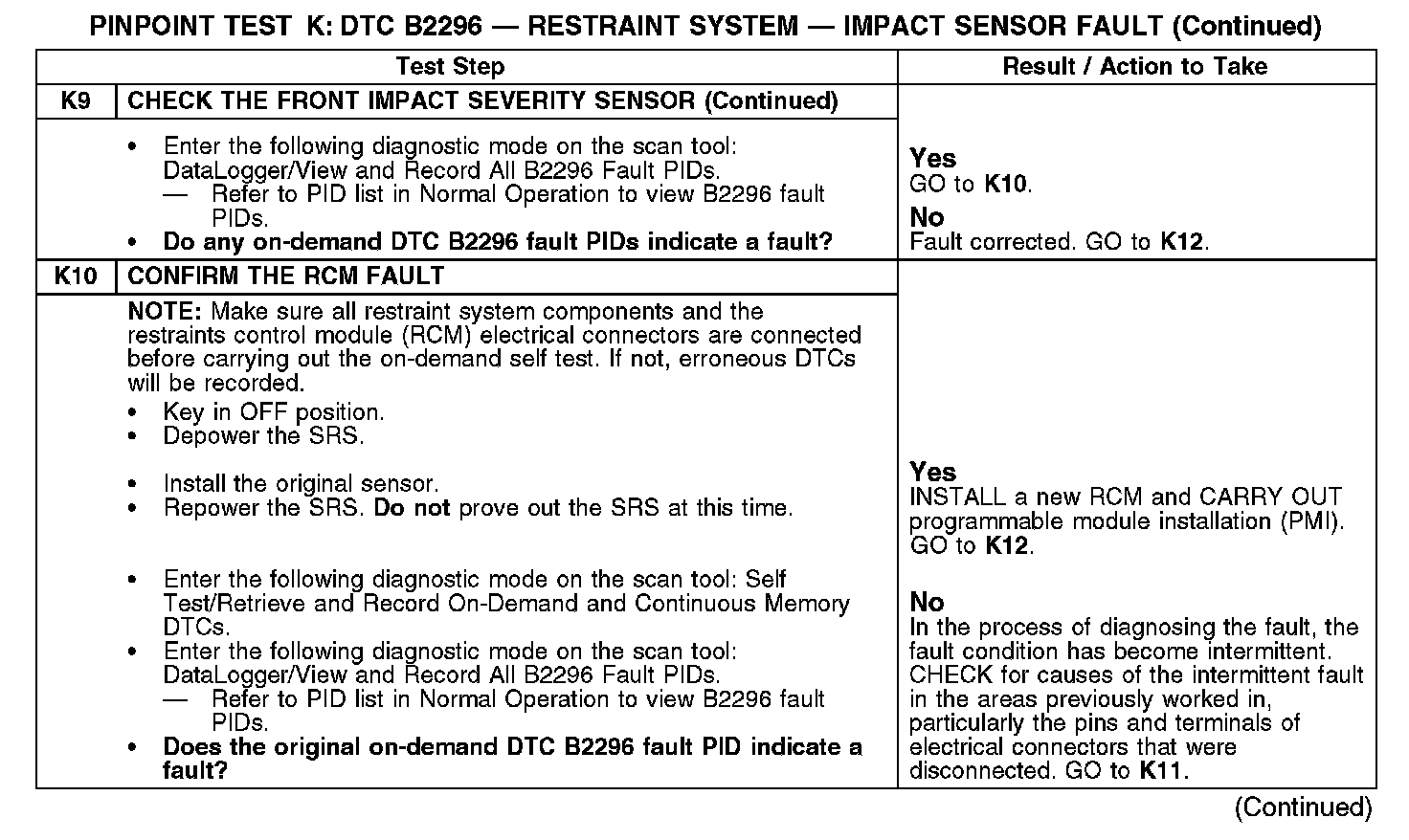

K9-K10:

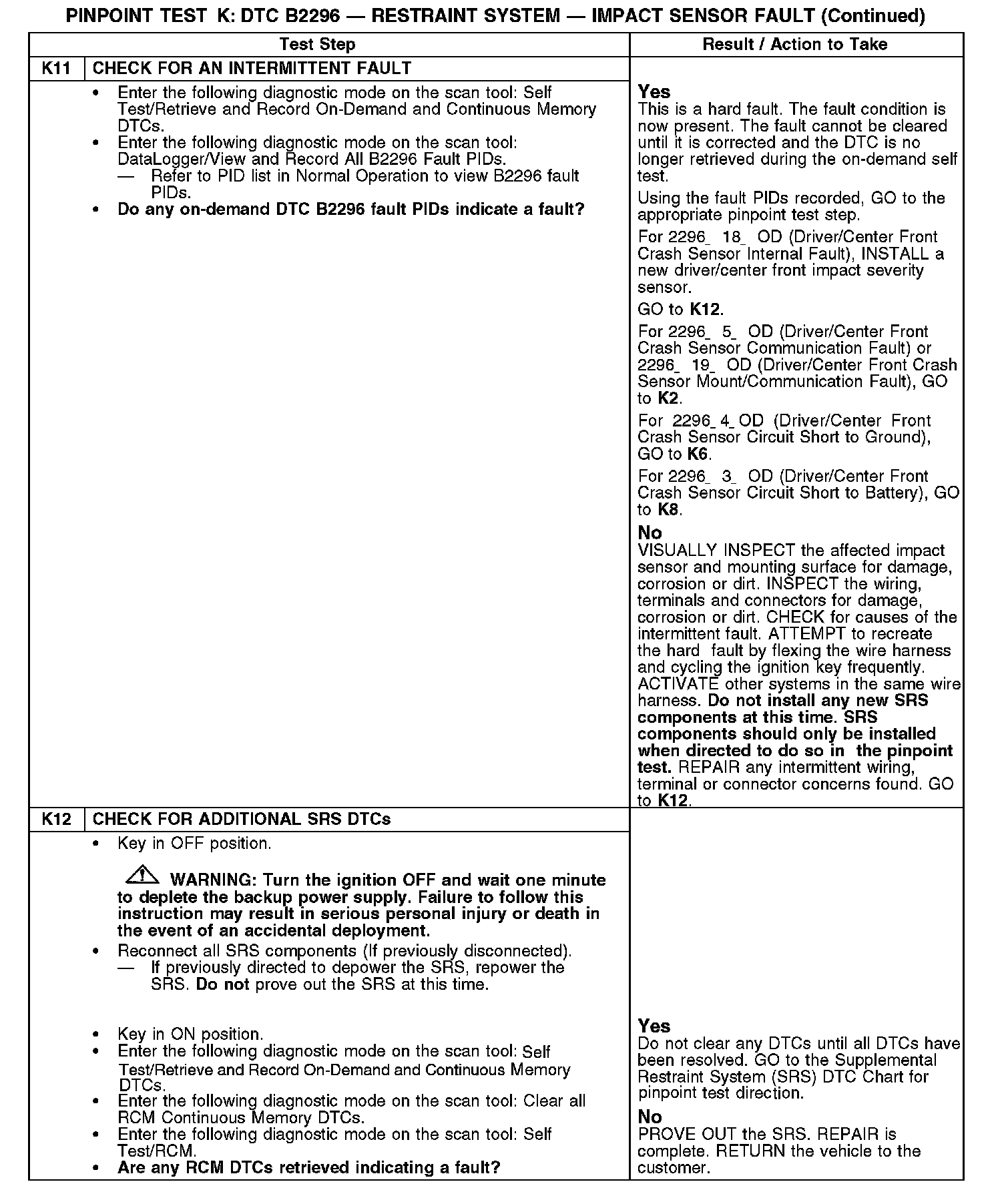

K11-K12:
