Test L: The Generator Is Noisy

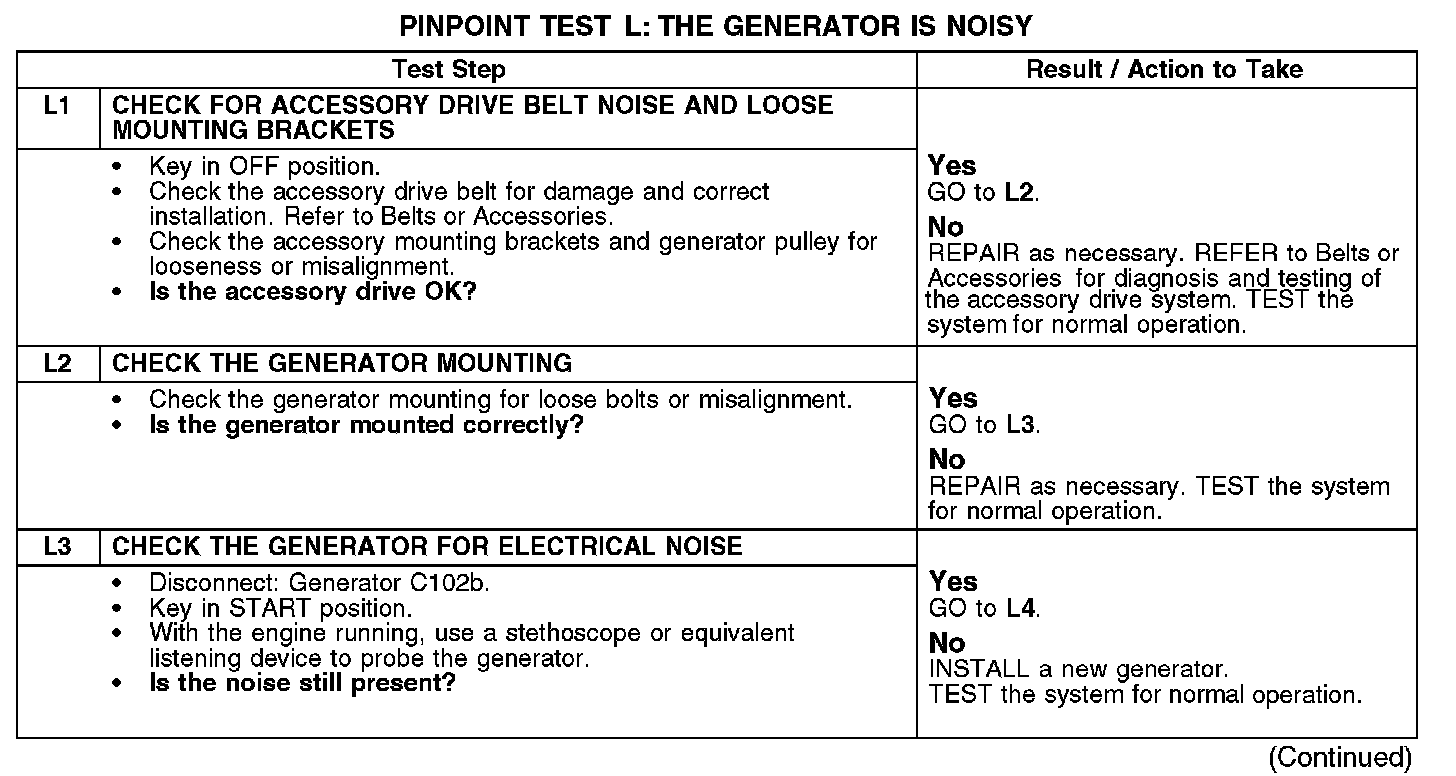

PINPOINT TEST L: THE GENERATOR IS NOISYL1-L3:

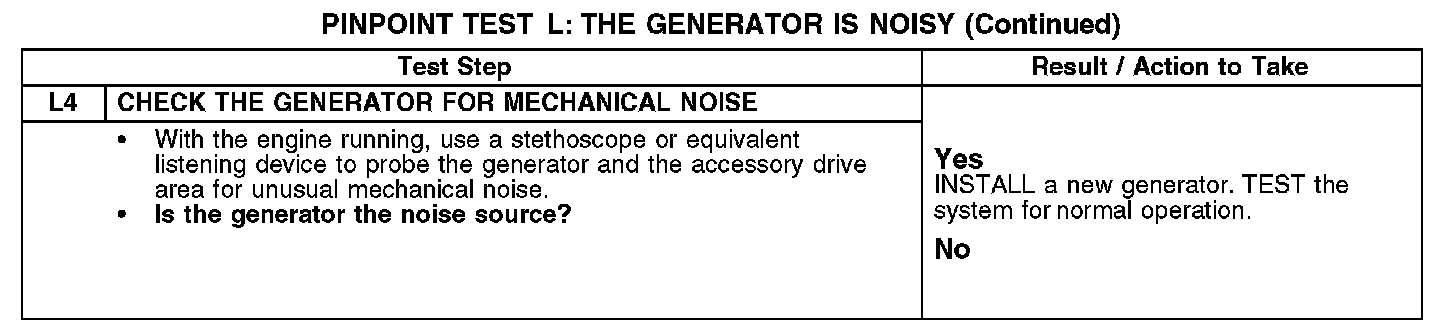

L4:
Normal Operation
The generator is belt-driven by the engine accessory drive system.
This pinpoint test is intended to diagnose the following:
- Accessory drive belt
- Loose bolts/brackets
- Generator/pulley
