Test F: Control Solenoids
Test F: Control Solenoids

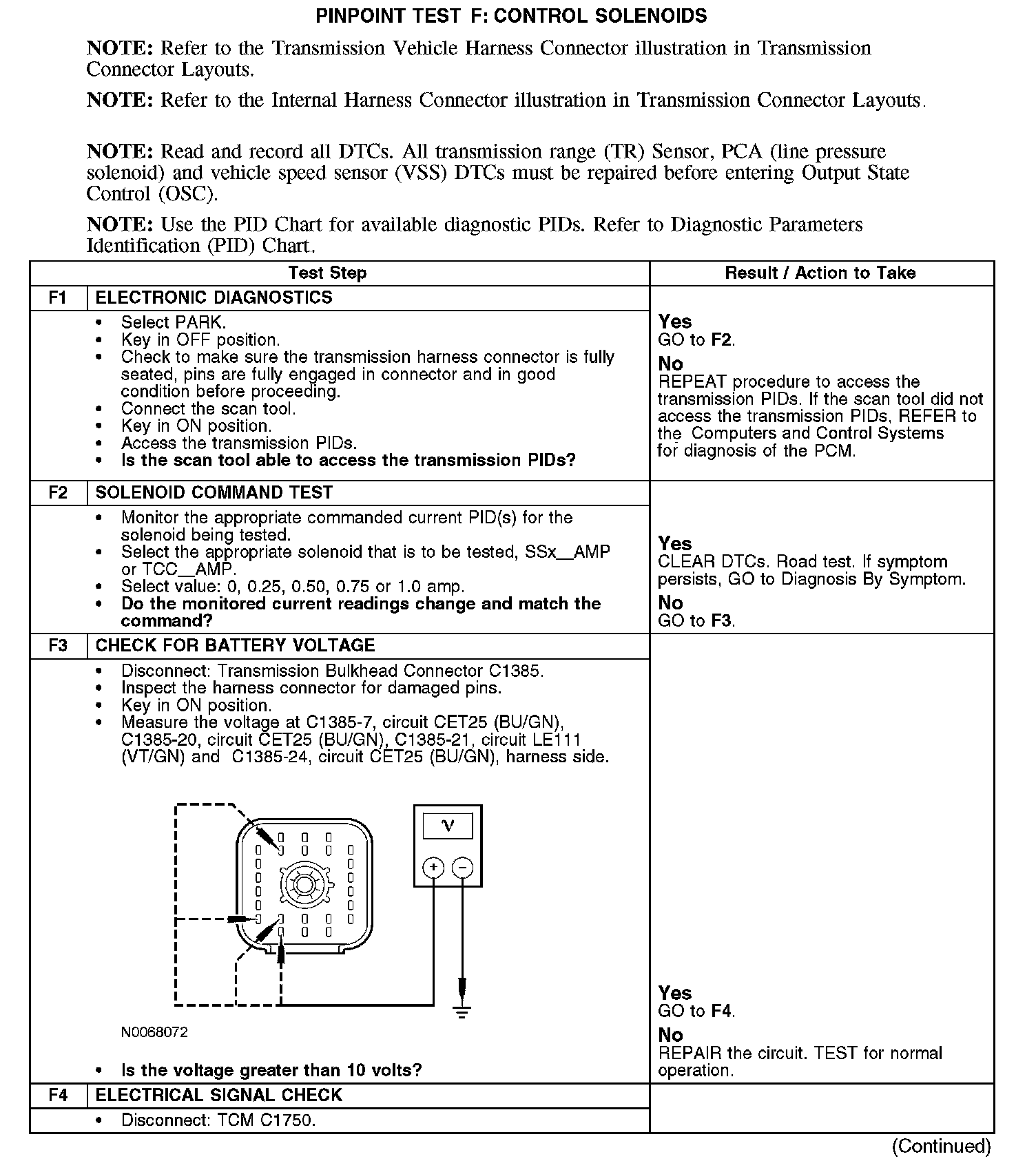

PINPOINT TEST F: CONTROL SOLENOIDS
F1-F4:

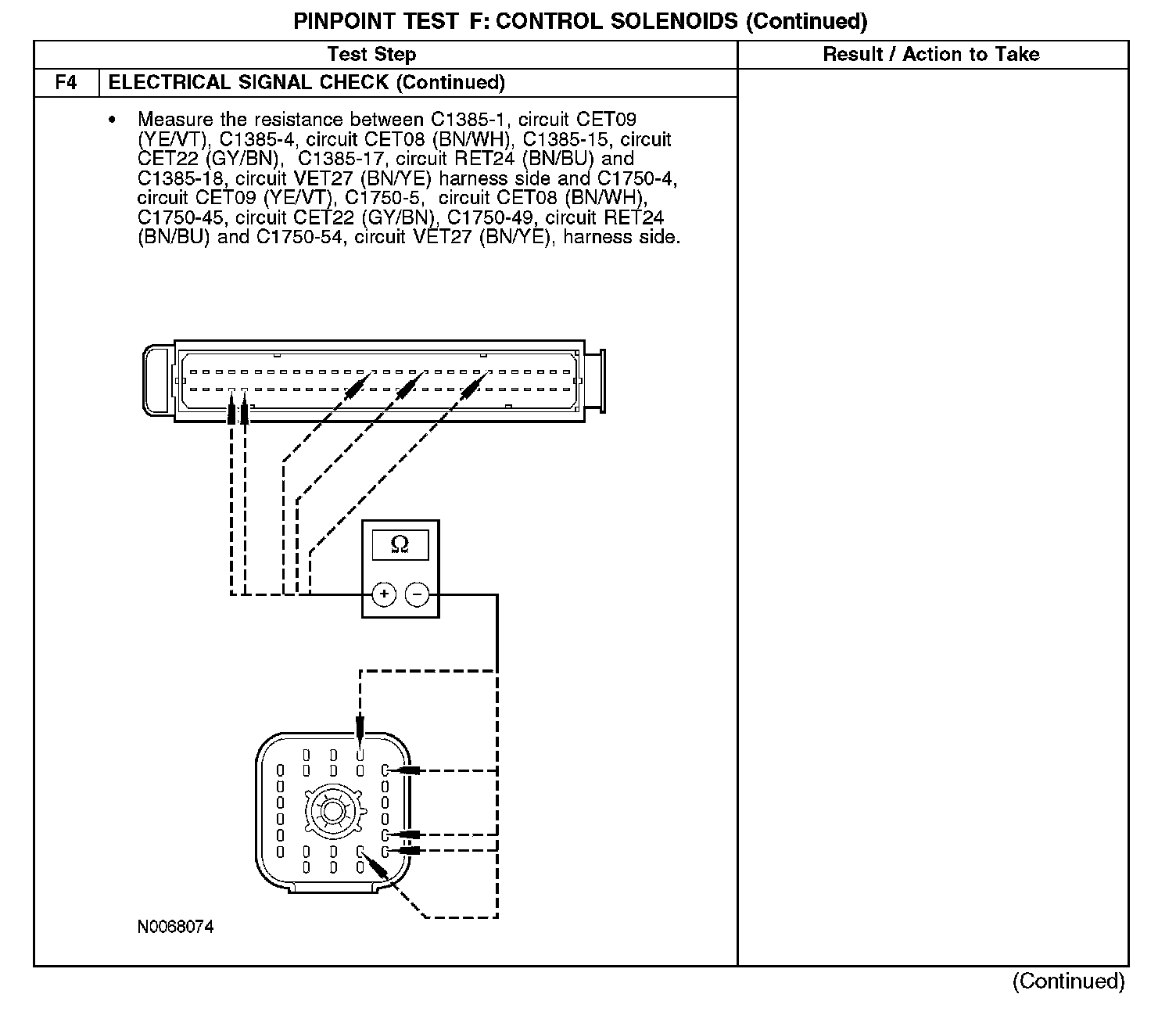

F4 (Continued):
F4 (Continued):
F4 (Continued)-F5:
F5 (Continued)-F6:
F7-F8:
