Test F: Soft or Excessive Pedal Travel
Pinpoint Test F: Soft or Excessive Pedal TravelNormal Operation
The brake pedal should be firm at all times when applied.
This pinpoint test is intended to diagnose the following:
^ Leak in the hydraulic system
^ Air in brake system
^ Hydraulic control unit (HCU)

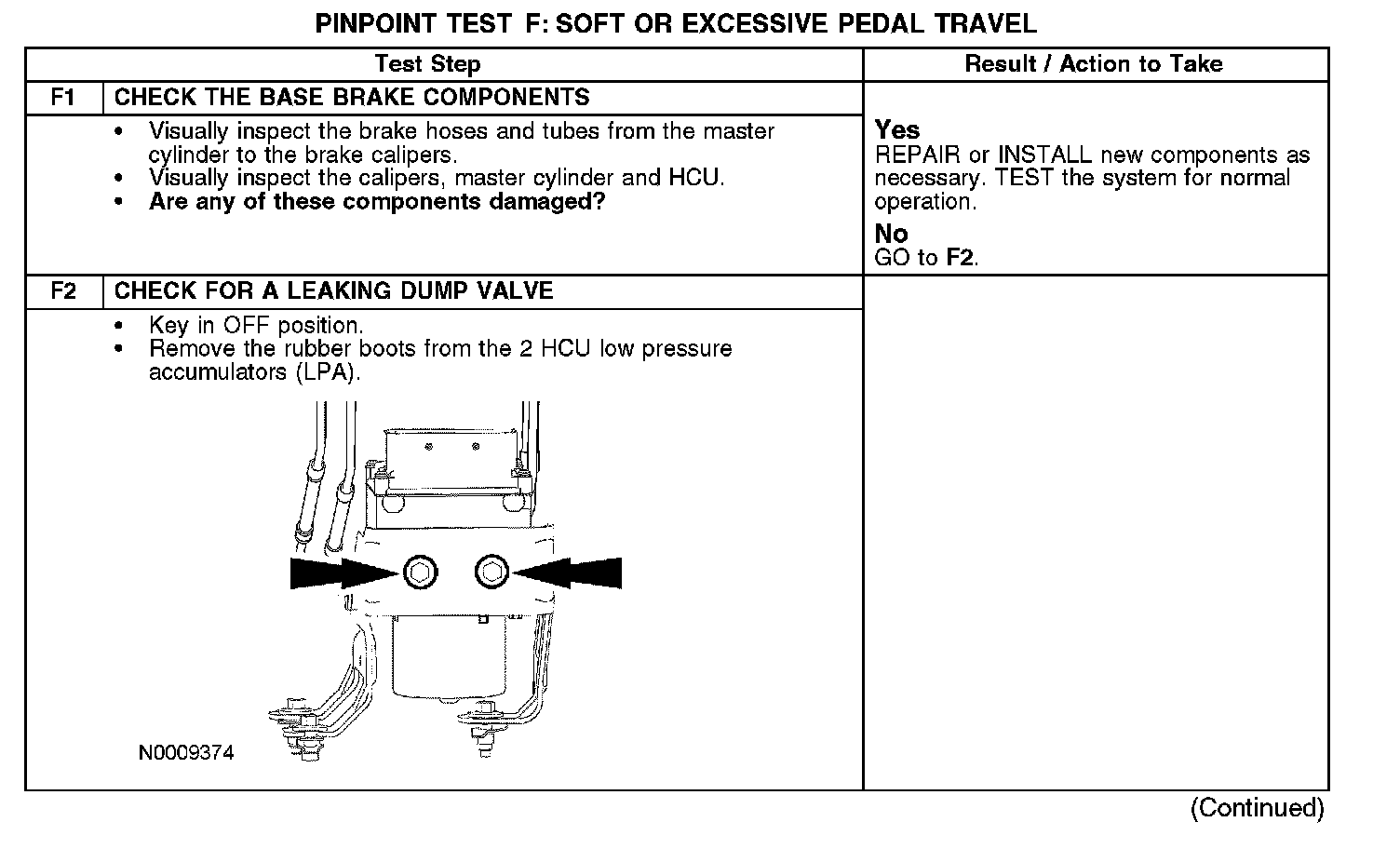

F1-F2:
F2 (Continued):
