Wheel and Tire - Dual Rear Wheel (DRW)

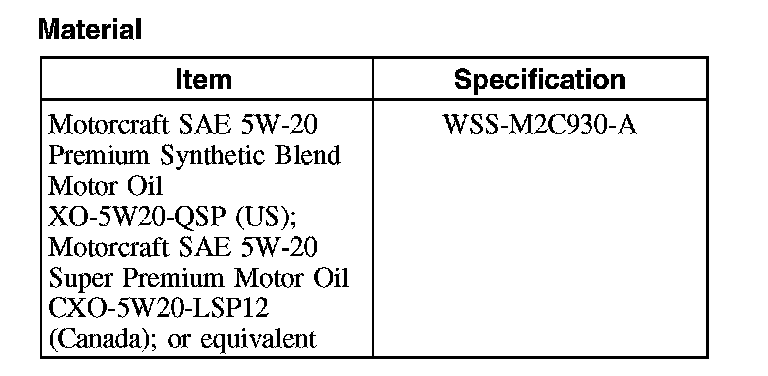

Wheel and Tire - Dual Rear Wheel (DRW)Material:
NOTE: Eight lug wheel shown, 10 lug similar.
Removal
1. If equipped, remove the wheel cover.
2. Check the torque for all the wheel nuts. If any wheel nuts have a torque above 312 Nm (230 ft. lbs.), install all new wheel studs on that wheel hub.
3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
4. CAUTION: Do not use heat to loosen a seized wheel nut. Heat may damage the wheel and wheel bearings.
Remove the wheel nuts.
5. NOTE: On vehicles equipped with 19.5-in and larger wheels, use Rotunda Heavy Duty Wheel Dolly 014-00030 or equivalent to aid in the remove of the wheel and tire assemblies.
Remove the outer and inner wheel and tire assemblies.
Installation
1. Inspect the wheel and tire assembly for cracks, dents, leaks, severe wear or rust flaking. Install a new wheel if cracks or rust flaking of the mounting surface exists.
2. WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign material present on the mounting surface of the wheel and the mounting surface of the wheel hub, brake drum or brake disc. Make sure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel. Failure to follow these instructions when installing wheels may result in the wheel nuts loosening and the wheel coming off while the vehicle is in motion, which could result in loss of control, leading to serious injury or death to vehicle occupant(s).
Clean the wheel to remove any loose paint, dirt, rust pitting or foreign material without cutting into the metal.
^ Using a clean, dry shop towel, wipe off any excess metallic particles.
^ Re-inspect the wheel after cleaning. Fatigue cracks or rust flaking may be seen only after cleaning has been completed.
3. WARNING: Use only the specified lubricant on the wheel studs as directed in the following procedure. Incorrect lubricant application may result in insufficient wheel nut torque, resulting in possible wheel/tire separation from the vehicle. Failure to follow this instruction may result in serious injury to the vehicle occupant(s).
NOTE: Do not allow oil to build up in the wheel stud threads. Only use 2 to 3 drops of oil per wheel hub.
Apply 2 to 3 drops of the specified motor oil to a clean shop towel. Using the shop towel, apply the oil to the wheel stud threads.
^ Wipe off any excess oil from the wheel stud threads.
4. CAUTION: It is imperative that the stamped indents (located on the tire bead portion of the wheels) are placed as close as possible to 180 degrees from each other, while still allowing access to the valve stem on the inside wheel. Failure to correctly install the wheel and tire assemblies may result in a vibration condition.
Install the inner and outer wheel and tire assemblies.
1. Position the inner wheel and tire assembly onto the axle.
2. Note the location of the alignment mark.
3. Position the outer wheel and tire assembly.
4. Position the alignment mark (on the outer wheel and tire assembly) as close to 180 degrees away from the alignment mark on the inner wheel and tire assembly as possible.
5. The valve stem on the inner wheel and tire assembly must be aligned with one of the hand holes in the outer wheel and tire assembly.
5. WARNING: Never use wheels different than the original equipment. Additionally, never use wheel nuts different than the original equipment. Failure to follow these instructions may result in damage to the wheel or mounting system. This damage could cause the wheel to come off while the vehicle is being driven, which could result in serious personal injury or death to vehicle occupant(s).
On all 2-piece flat wheel nuts, apply one drop of the specified motor oil between the flat washer and the nut. If corrosion exists, or the integral 2-piece swiveling wheel nuts do not rotate freely, install new swiveling wheel nuts as necessary.
^ Tighten the wheel nuts until snug in a criss-cross pattern to minimize runout.
6. WARNING: Retighten wheel nuts within 160 km (100 mi) after a wheel is reinstalled. For dual rear wheel (DRW) only, a second retightening is required within 800 km (500 mi). Wheels can loosen after initial tightening. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
CAUTION: Failure to tighten the wheel nuts in the sequence shown may result in high wheel and tire runout, which will speed up the development of brake roughness, shudder and vibration.
NOTE: Torque specifications are for nut and bolt threads that are free of dirt and rust. Use only Ford recommended replacement fasteners.

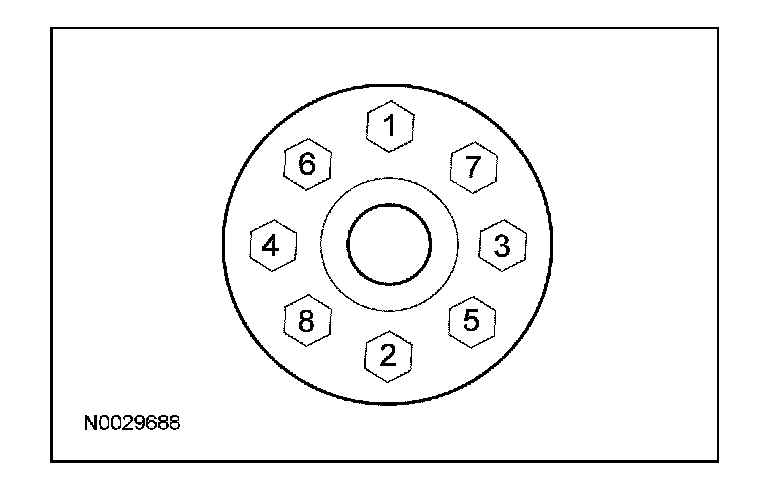

With the weight of the vehicle on the tires, tighten the wheel nuts to 224 Nm (165 ft. lbs.) in the sequence shown.
7. If equipped, install the wheel cover.
