Transmission Mount: Service and Repair

Transmission Insulator and Retainer

Removal
1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to Maintenance/Service and Repair.

2. NOTE: The transmission insulator studs may come out of the insulator while removing the nuts. Install new insulator studs if the studs come out of the insulator.

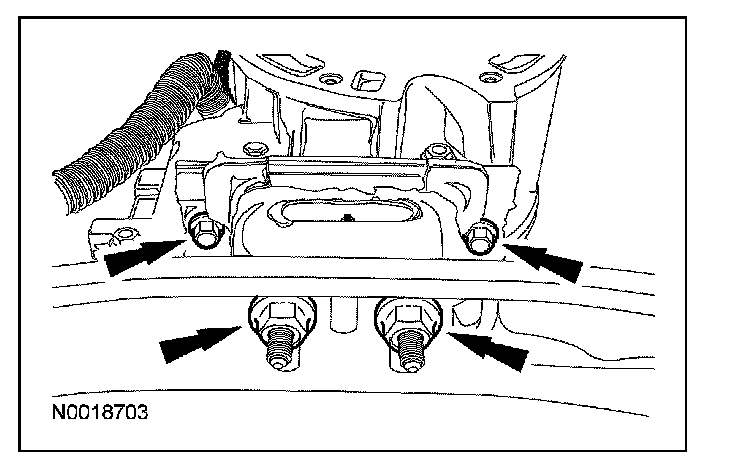

Remove the rear transmission insulator bolts and nuts.





3. Raise the transmission upward, off the transmission insulator and remove the insulator.





Installation
1. Install the rear transmission insulator and lower the transmission onto the crossmember.





2. NOTE: It may be necessary to raise the back of the transmission slightly in order to install the bolts.

Loosely install the transmission insulator bolts.





3. If required, install a new insulator stud.
^ Tighten to 75 Nm (55 ft. lbs.).
4. Loosely install the transmission insulator nuts.





5. Tighten the transmission insulator bolts and nuts.
^ Tighten bolts to 103 Nm (76 ft. lbs.).
^ Tighten nuts to 115 Nm (85 ft. lbs.).
