Communications Control Module: Service and Repair

AUDIO CONTROL MODULE (ACM)







Removal and Installation

NOTE: When installing a new navigation audio control module (ACM), remove the navigation map DVD from the ACM (if possible) before sending it to an authorized audio system repair facility.

1. NOTE: Programmable module installation (PMI) is only necessary if a new ACM is being installed.

Upload the ACM configuration information to the scan tool.

2. Remove the instrument panel center finish panel.

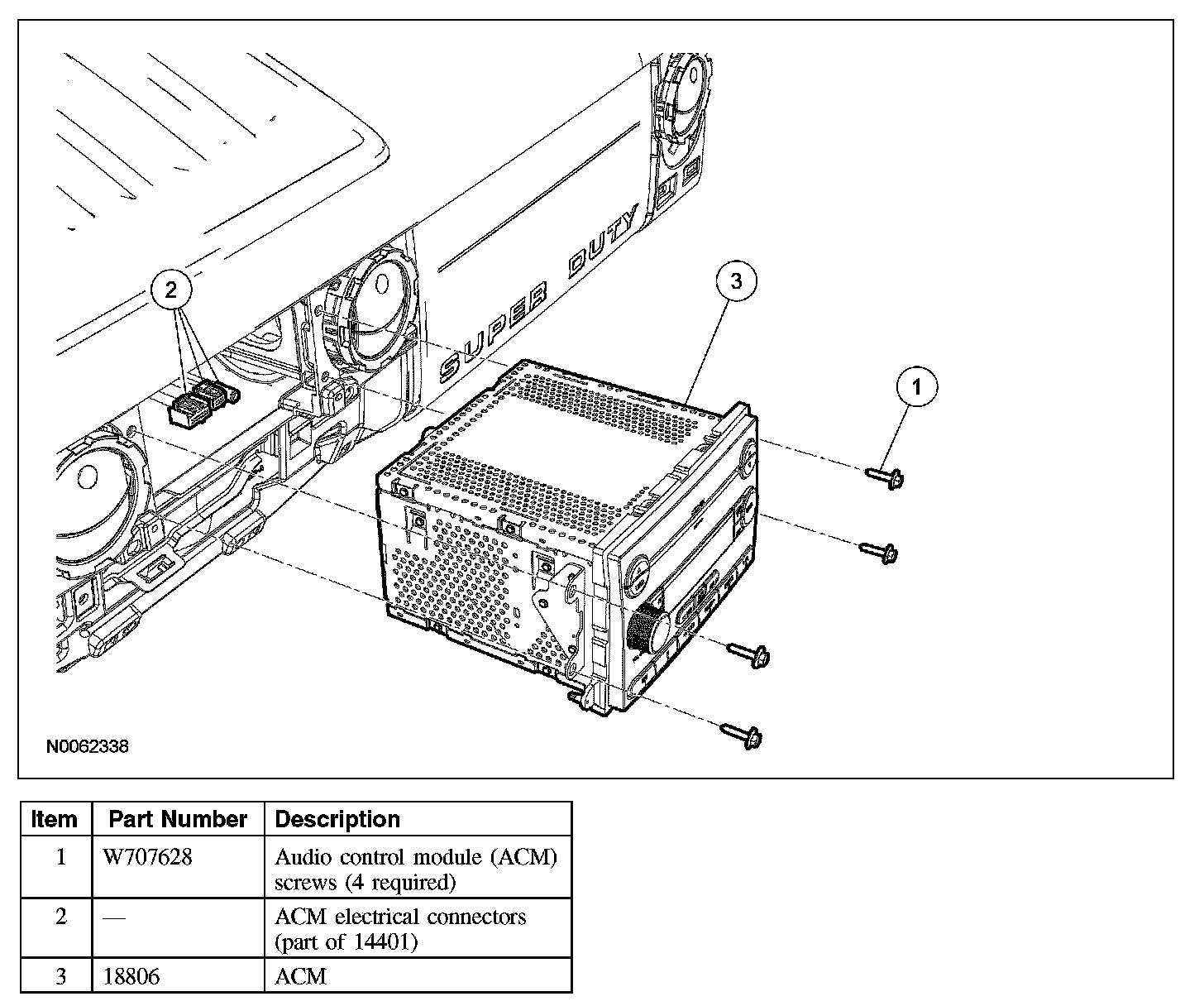

3. Remove the 4 screws and the ACM.
- Disconnect the electrical connectors.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM.
