Heating Ventilation Air Conditioning (HVAC) Module

HEATING VENTILATION AIR CONDITIONING (HVAC) MODULE







Removal and Installation
1. Remove the instrument panel center finish panel.

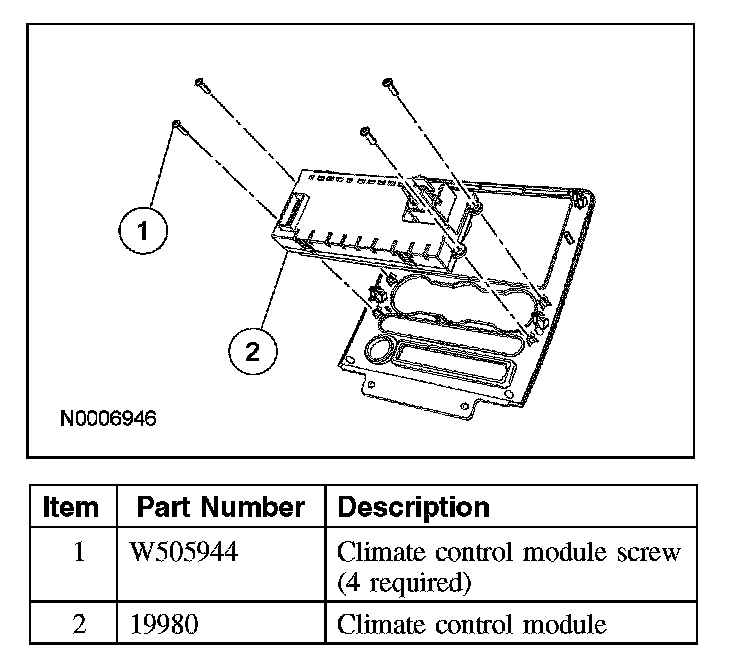

2. Remove the 4 HVAC module screws.
3. Remove the HVAC module.
4. To install, reverse the removal procedure.
