Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

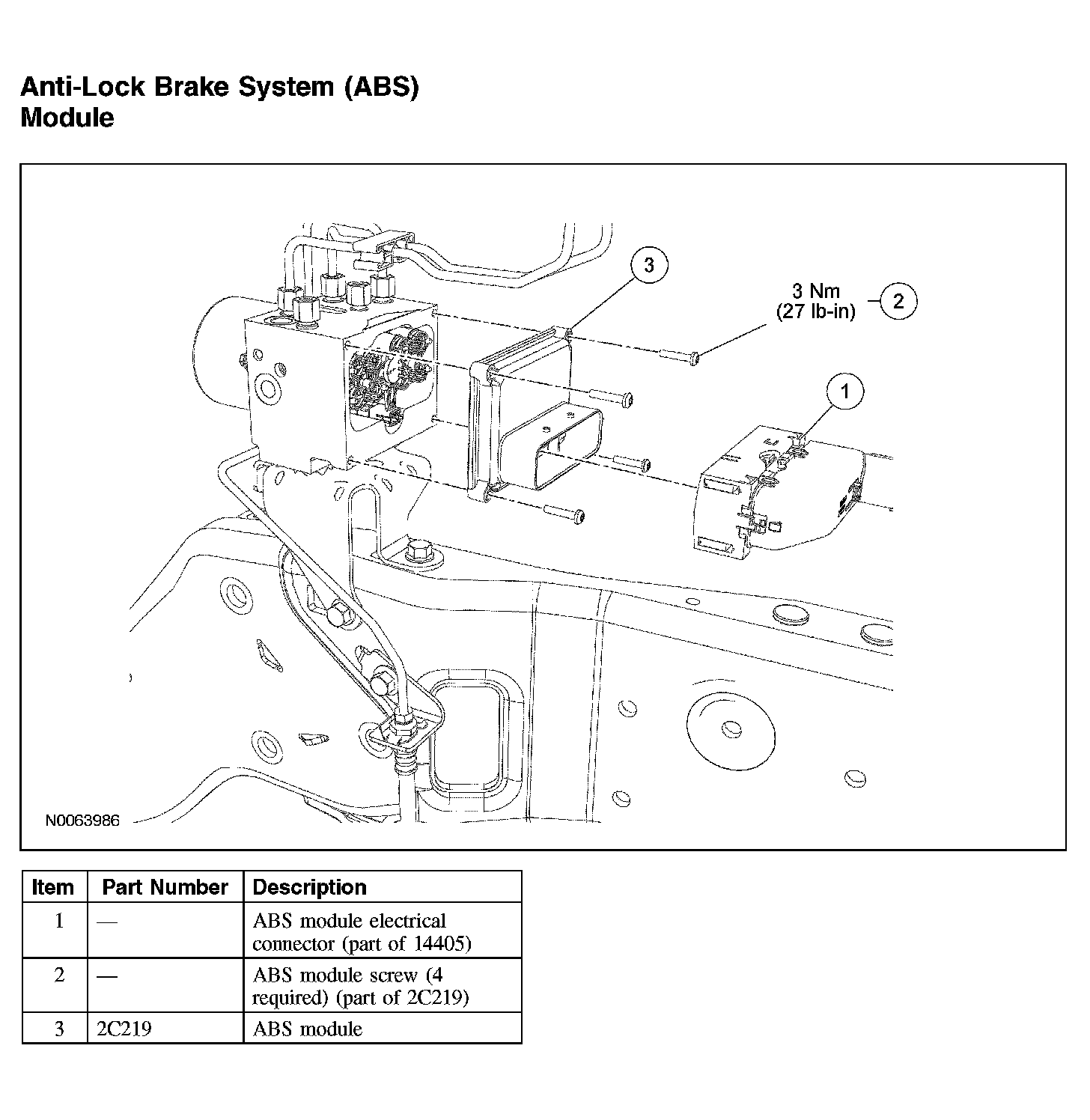

Anti-Lock Brake System (ABS) Module:

Removal and Installation
1. Remove the LH front fender splash shield.
2. Disconnect the ABS module electrical connector.
3. Remove the 4 ABS module screws and the ABS module.
^ To install, tighten to 3 Nm (27 lb-inch).
4. To install, reverse the removal procedure.
