Sunroof / Moonroof: Adjustments

ROOF OPENING PANEL ALIGNMENT

NOTE: The roof opening panel motor must be initialized when repairs are carried out on any part of the roof opening panel, including: whenever the roof opening panel motor has been removed from the roof opening panel assembly, a new roof opening panel motor has been installed or when a new roof opening panel assembly has been installed. For additional information, refer to Roof Opening Panel Motor Initialization. Programming and Relearning

1. Position the roof opening panel in the CLOSED position.
2. Loosen the roof opening panel glass screws.
- Loosen only the front screws to adjust the front.
- Loosen only the rear screws to adjust the rear.

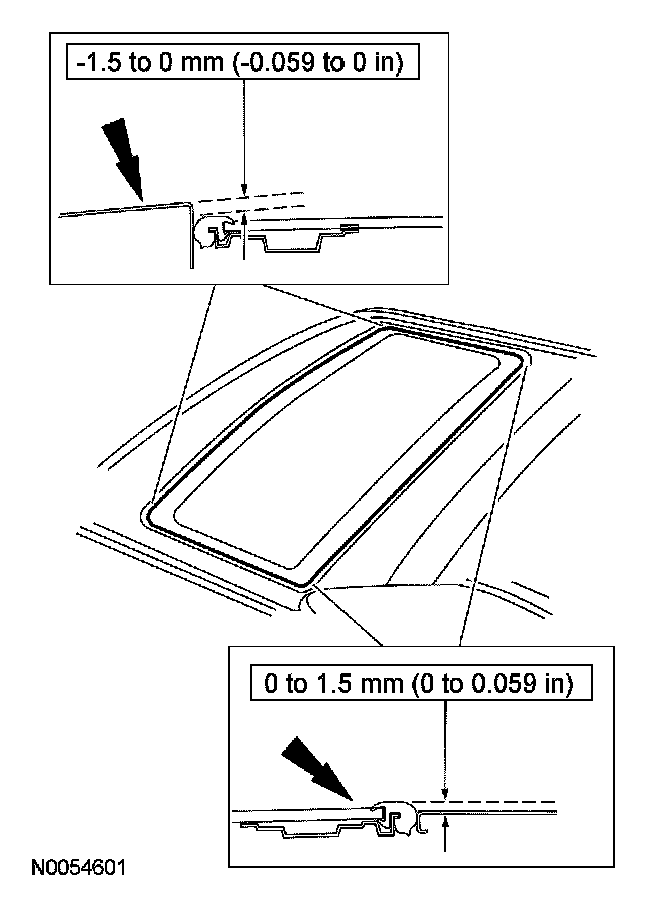

3. Adjust the roof opening panel to specification.







4. Tighten the roof opening panel screws to 4 Nm (35 lb-in).
5. Reinitialize the roof opening panel motor. For additional information, refer to Roof Opening Panel Motor Initialization. Programming and Relearning
