Ride Height Measurement

Ride Height Measurement

Front Ride Height Measurement

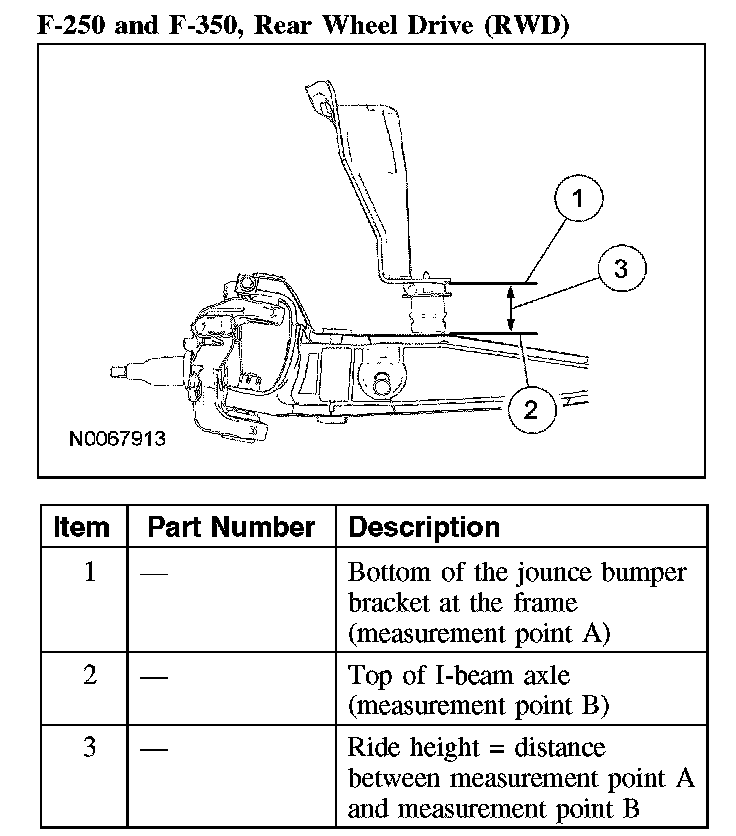

F-250 and F-350, Rear Wheel Drive (RWD):

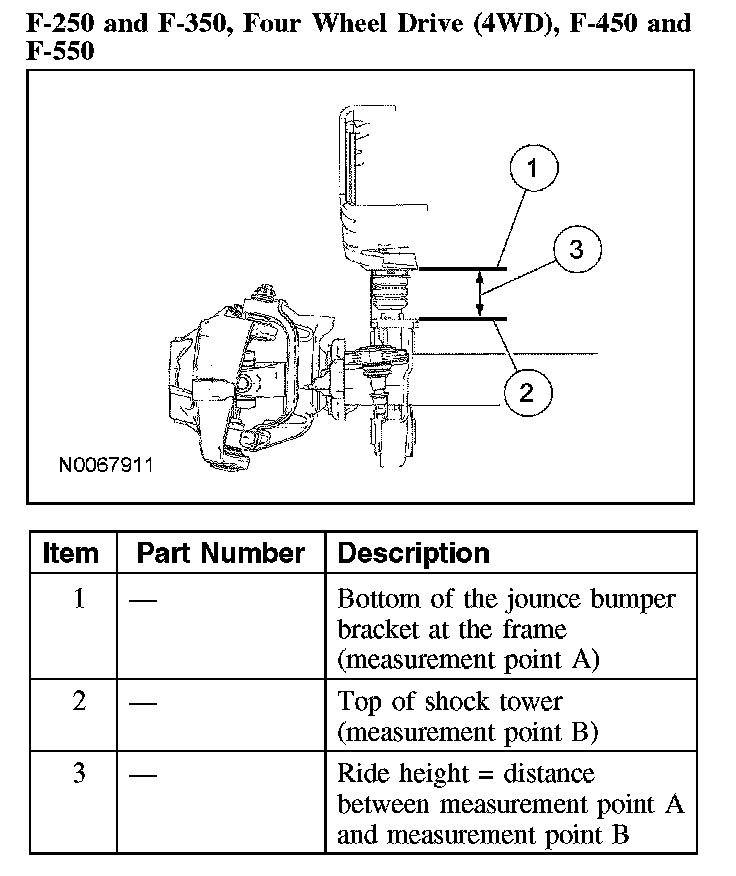

F-250 and F-350, Four Wheel Drive (4WD), F-450 and F-550:

1. NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure.

To obtain vehicle ride height, measure the distance between points A and B.

Rear Ride Height Measurement

F-250 and F-350, Rear Wheel Drive (RWD) and F-450 and F-550 without Low Deflection Package:

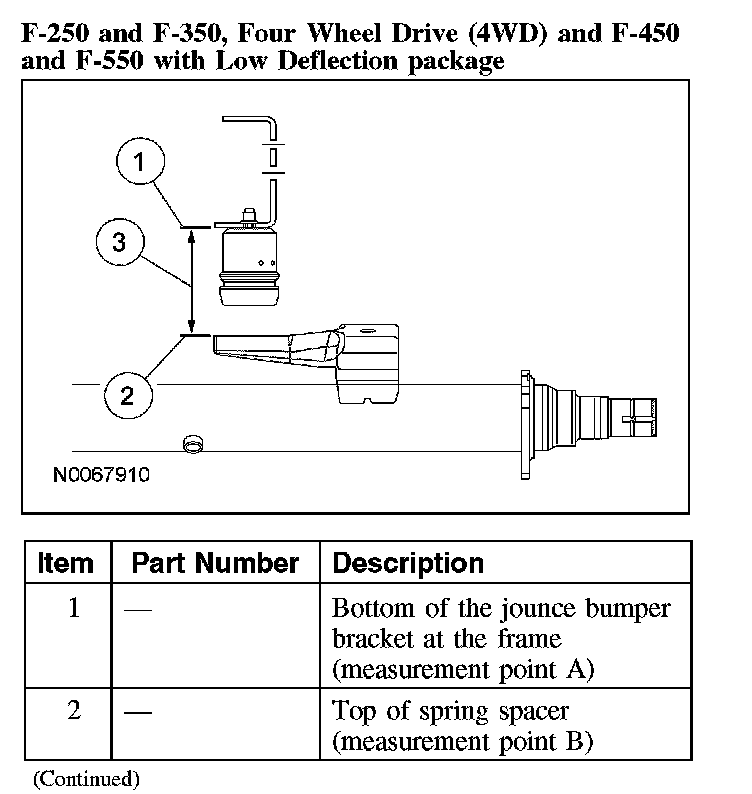

F-250 and F-350, Four Wheel Drive (4WD) and F-450 and F-550 with Low Deflection package (Part 1):

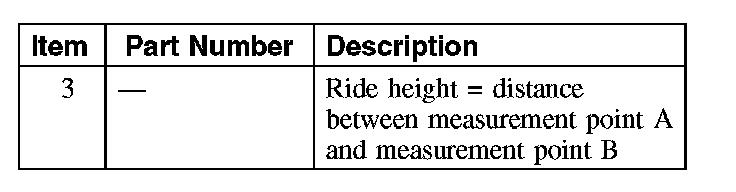

F-250 and F-350, Four Wheel Drive (4WD) and F-450 and F-550 with Low Deflection package (Part 2):

1. NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure.

To obtain vehicle ride height, measure the distance between points A and B.
