Evaporative Emission Control Canister: Service and Repair

EVAPORATIVE EMISSION CANISTER

Midship Fuel Tank Equipped Vehicles (Part 1):

Midship Fuel Tank Equipped Vehicles (Part 2):

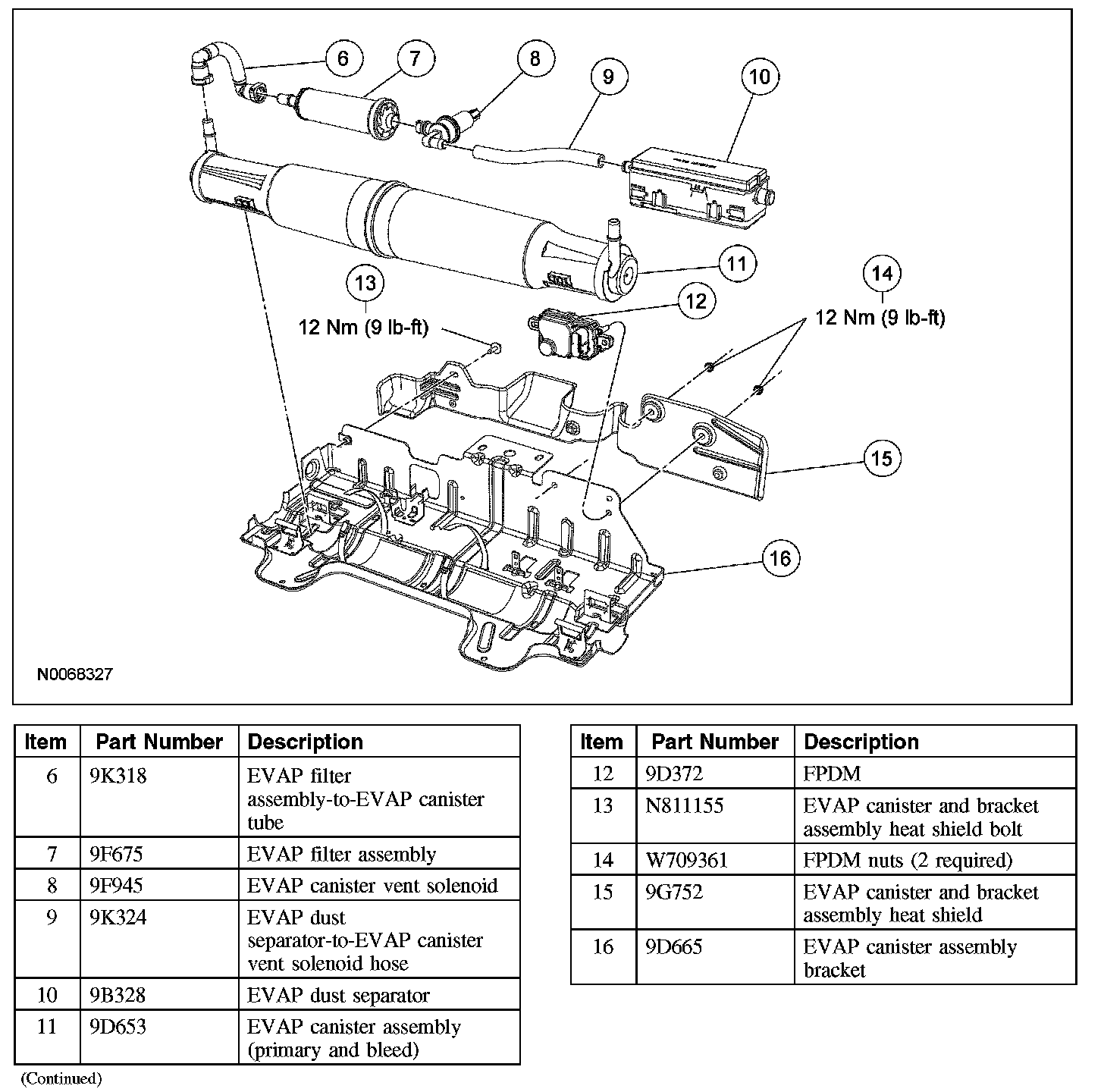

Aft-of-Axle Fuel Tank Equipped Vehicles:

Auxiliary Fuel Tank Equipped Vehicles (Part 1):

Auxiliary Fuel Tank Equipped Vehicles (Part 2):

Exploded View

Removal

WARNING:
- When working on or near the evaporative emission (EVAP) system, disconnect the battery ground cable from the battery. The EVAP system contains fuel vapor and condensed fuel vapor, so an electrical spark may cause a fire or explosion. Failure to follow this instruction may result in serious personal injury.
- Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE: Some vehicles come equipped with a steel fuel tank that is mounted midship. This fuel tank is referred to as an auxiliary fuel tank.

All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.

Midship fuel tank equipped vehicles

3. NOTE: The midship fuel tank evaporative emissions (EVAP) canister and bracket assembly is located above the spare tire. Removal of the spare tire is required to remove the midship fuel tank EVAP canister and bracket assembly.

Disconnect the EVAP canister purge valve vapor tube-to-EVAP canister assembly quick connect coupling and fuel tank vapor tube-to-EVAP canister assembly quick connect coupling.

All vehicles
4. Disconnect the EVAP canister vent solenoid electrical connector.

Aft-of-axle and auxiliary fuel tank equipped vehicles
5. Disconnect the fuel tank vapor tube-to-EVAP canister assembly quick connect coupling.
6. Disconnect the fuel vapor vent hose from the dust separator.
7. If necessary, disconnect the fuel pump driver module (FPDM) electrical connector from the fuel pump driver module.

All vehicles
8. Remove the 4 bolts and the EVAP canister and bracket assembly.
9. Place the EVAP canister and bracket assembly on a clean work surface.

Midship fuel tank equipped vehicles
10. Remove the canister vent solenoid and dust separator assembly from the EVAP canister assembly.
11. Remove the 2 EVAP canister assembly-to-EVAP canister assembly bracket bolts.
12. Remove the 2 EVAP canister assembly-to-EVAP canister assembly bracket screws.

Aft-of-axle and auxiliary fuel tank equipped vehicles
13. If necessary, remove the clamps from the EVAP canister assembly.
14. Disconnect the EVAP filter assembly-to-EVAP canister assembly tube quick connect coupling.
15. Remove the EVAP canister assembly from the EVAP canister assembly bracket.

Installation

Aft-of-axle and auxiliary fuel tank equipped vehicles
1. Position the EVAP canister into the EVAP canister bracket.
2. Connect the EVAP filter assembly-to-EVAP canister assembly tube quick connect coupling.
3. If necessary, install the clamp around the EVAP canister.

Midship fuel tank equipped vehicles

CAUTION: Install the evaporative emission (EVAP) canister-to-EVAP canister assembly bracket screws before installing the EVAP canister-to-EVAP canister assembly bracket bolts or damage to the EVAP canister will occur.

4. Install the 2 EVAP canister assembly-to-EVAP canister assembly bracket screws.
- Tighten to 6 Nm (53 lb-in).

5. Install the 2 EVAP canister assembly-to-EVAP canister assembly bracket bolts.
- Tighten to 6 Nm (53 lb-in).

6. Install the EVAP canister vent solenoid and dust separator assembly to the EVAP canister assembly.

All vehicles
7. Install the EVAP canister and bracket assembly into the vehicle and install the 4 bolts.
- Tighten to 17 Nm (13 lb-ft).

Aft-of-axle and auxiliary fuel tank equipped vehicles
8. If disconnected, connect the FPDM electrical connector to the FPDM.
9. Connect the fuel vapor vent hose to the dust separator.
10. Connect the fuel tank vapor tube-to-EVAP canister assembly quick connect coupling.

All vehicles
11. Connect the EVAP canister vent solenoid electrical connector.

Midship fuel tank equipped vehicles
12. Connect the EVAP canister purge valve vapor tube-to-EVAP canister assembly quick connect coupling and fuel tank vapor tube-to-EVAP canister assembly quick connect coupling.
13. Connect the battery ground.

All vehicles
14. Carry out the EVAP system leak test. Testing and Inspection
15. Carry out the EVAP repair verification drive cycle.
