Engine Control Module

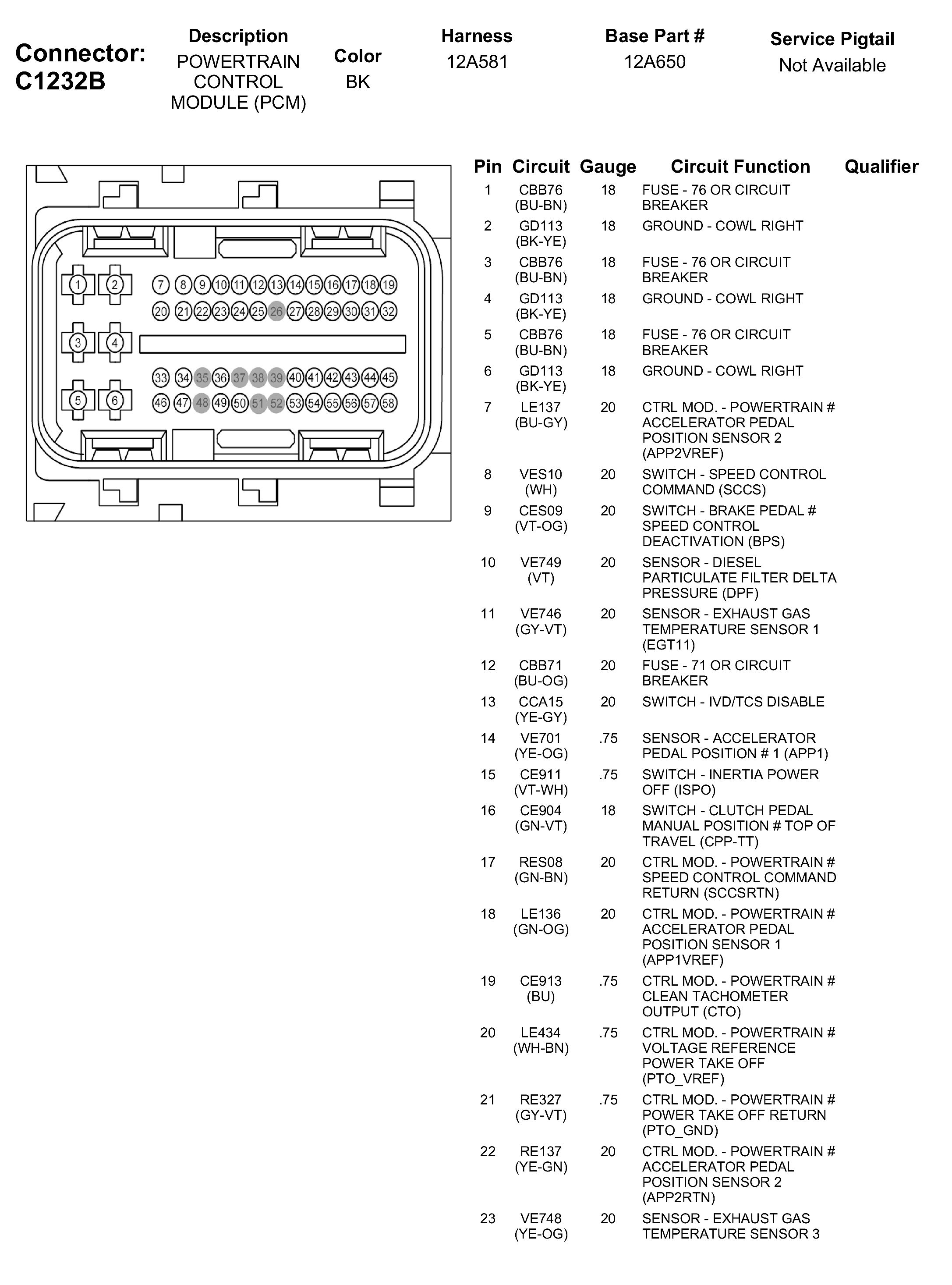

C1232B (Part 1):

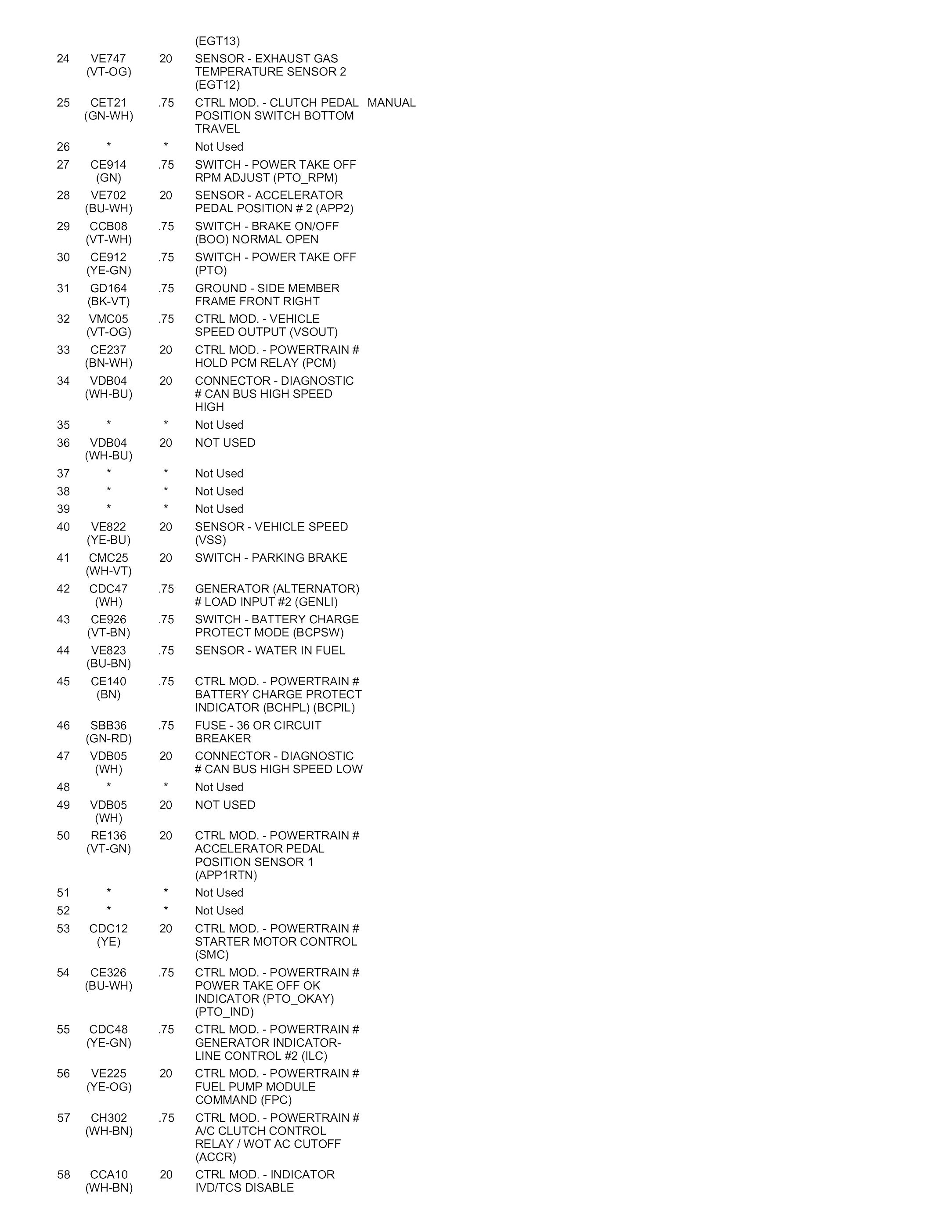

C1232B (Part 2):

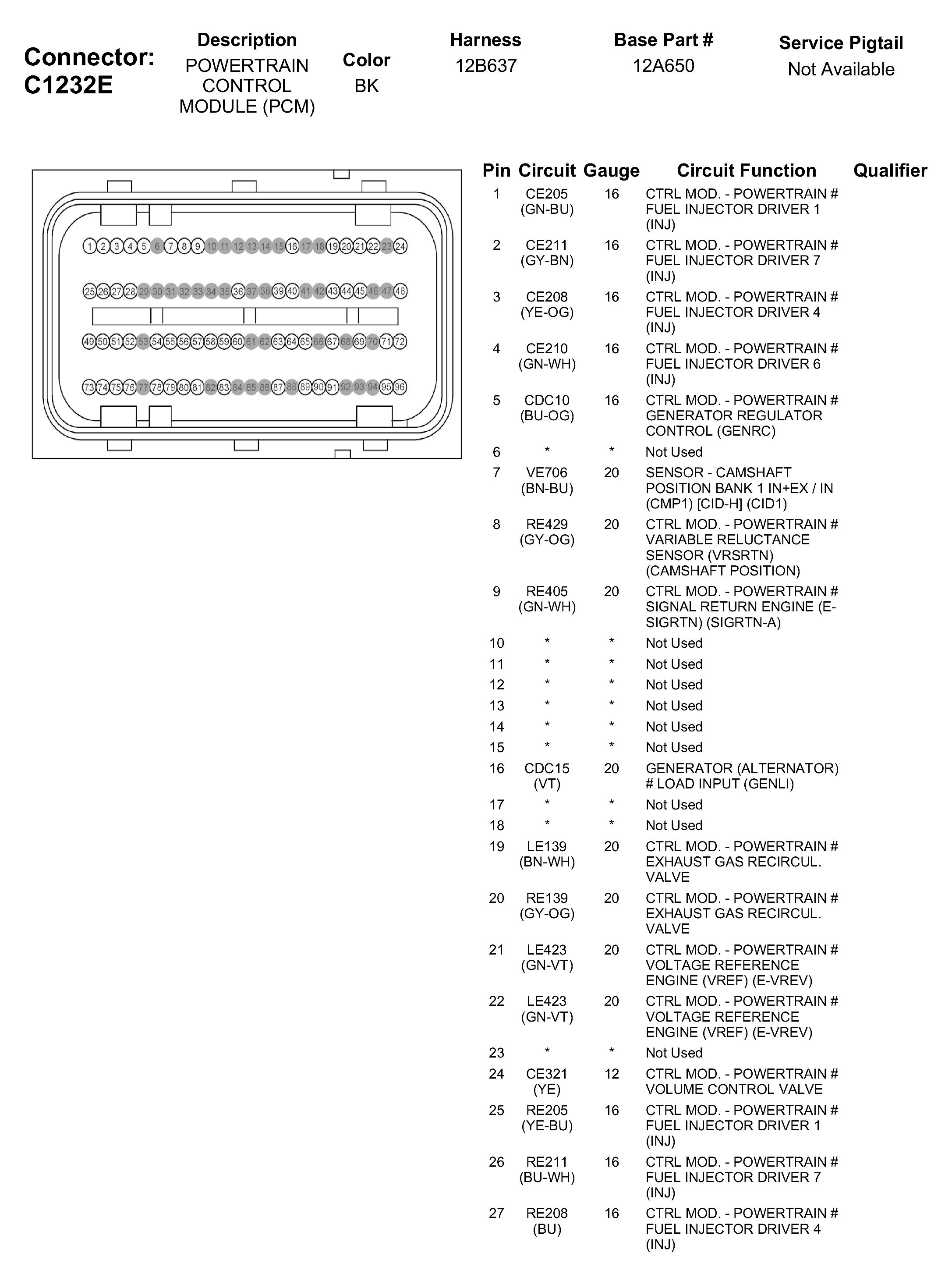

C1232E (Part 1):

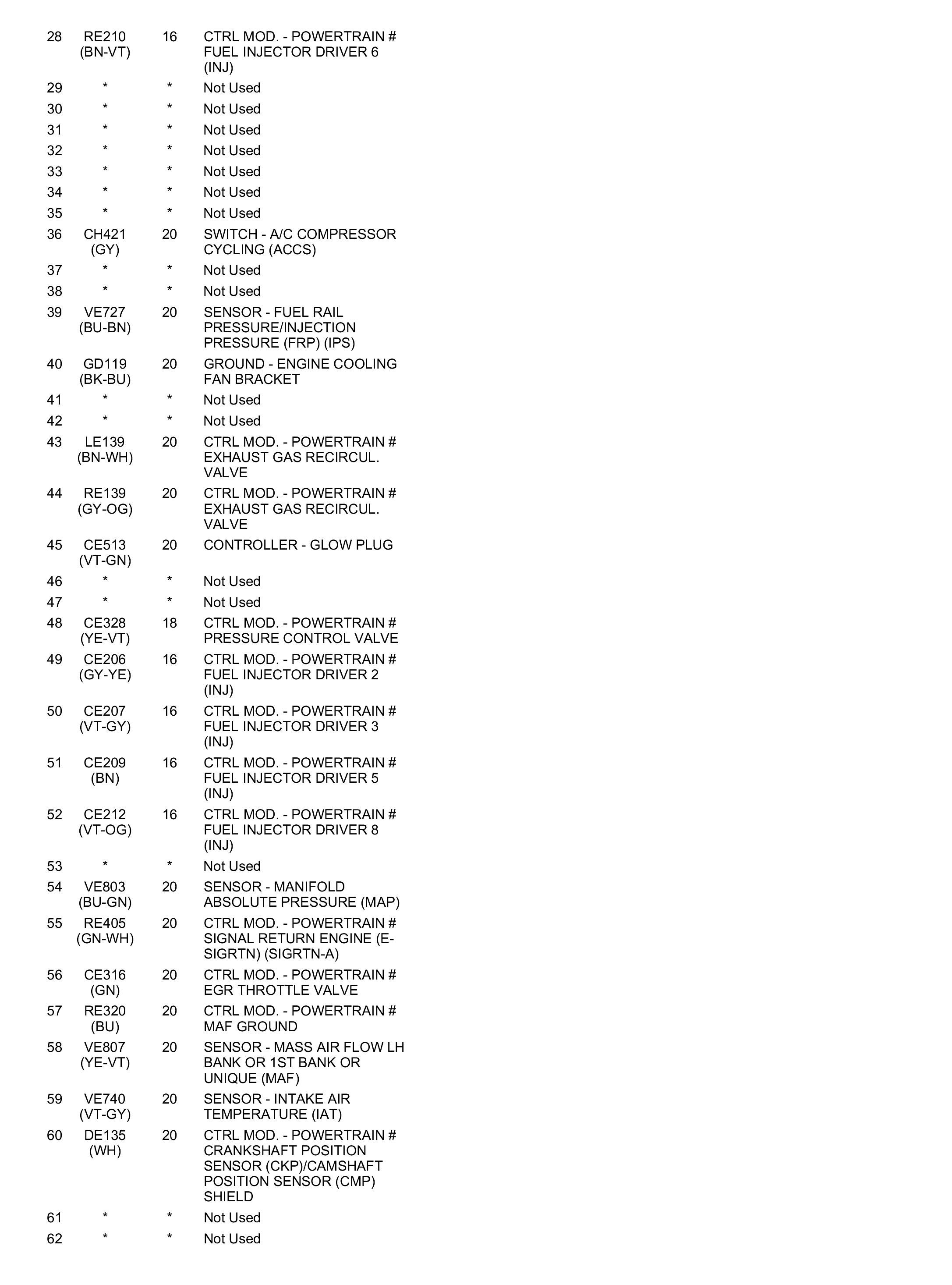

C1232E (Part 2):

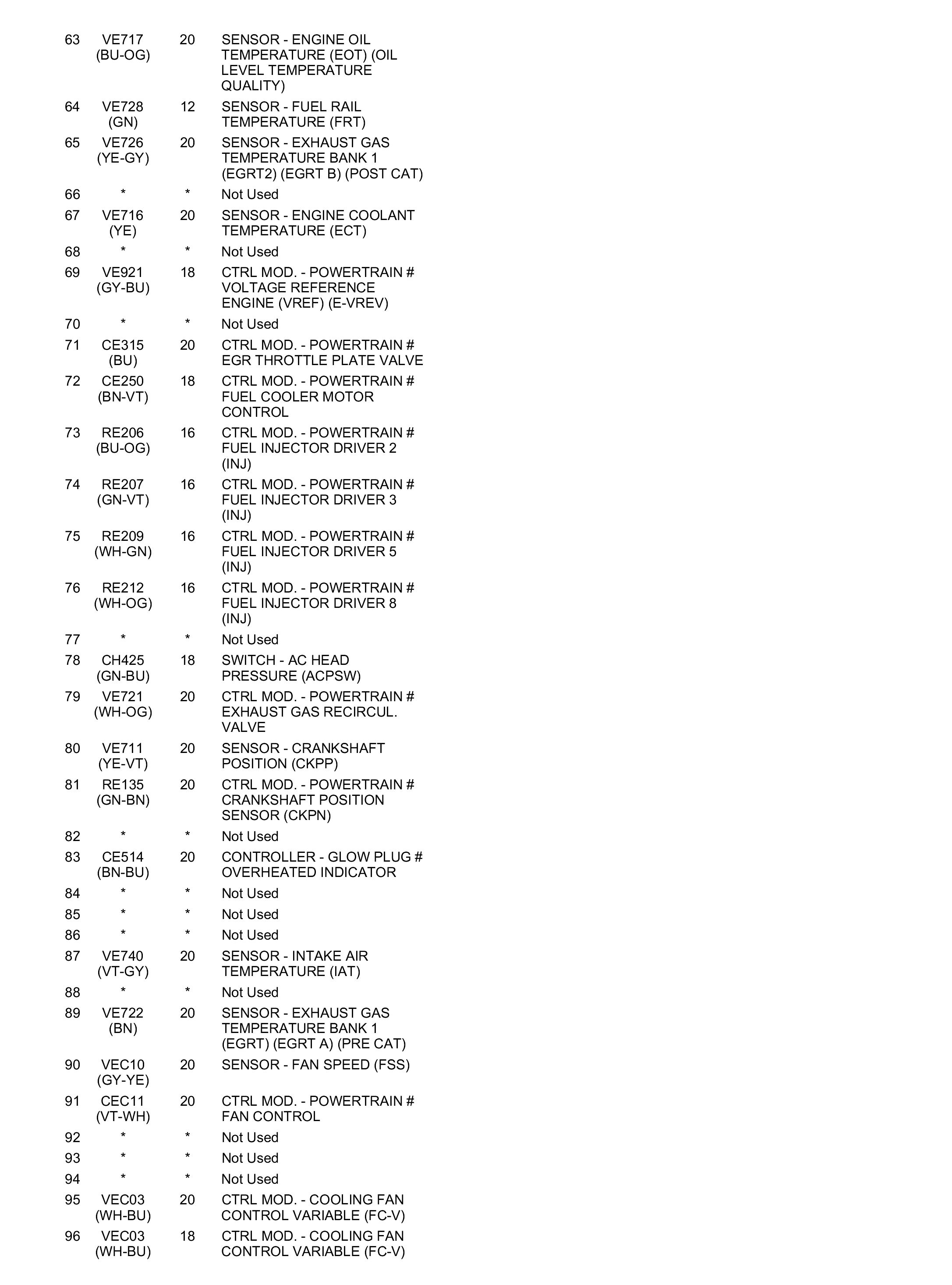

C1232E (Part 3):
