Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR







Removal and Installation

1. CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls or the vehicle may be damaged.

Turn the ignition switch to the OFF position.

2. Remove the air cleaner outlet tube.

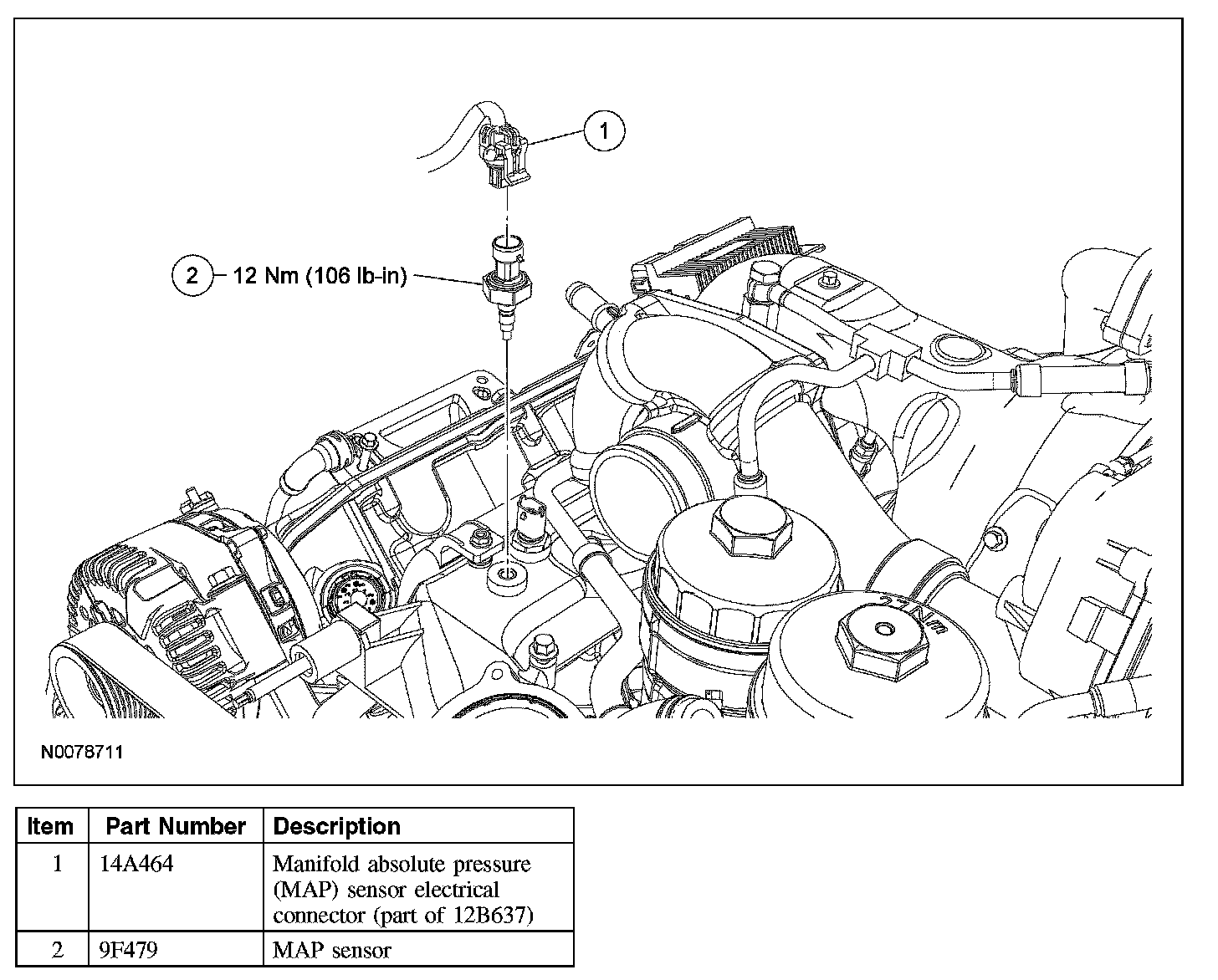

3. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.
4. Remove the MAP sensor.
- To install, tighten to 12 Nm (106 lb-in).

5. To install, reverse the removal procedure.
