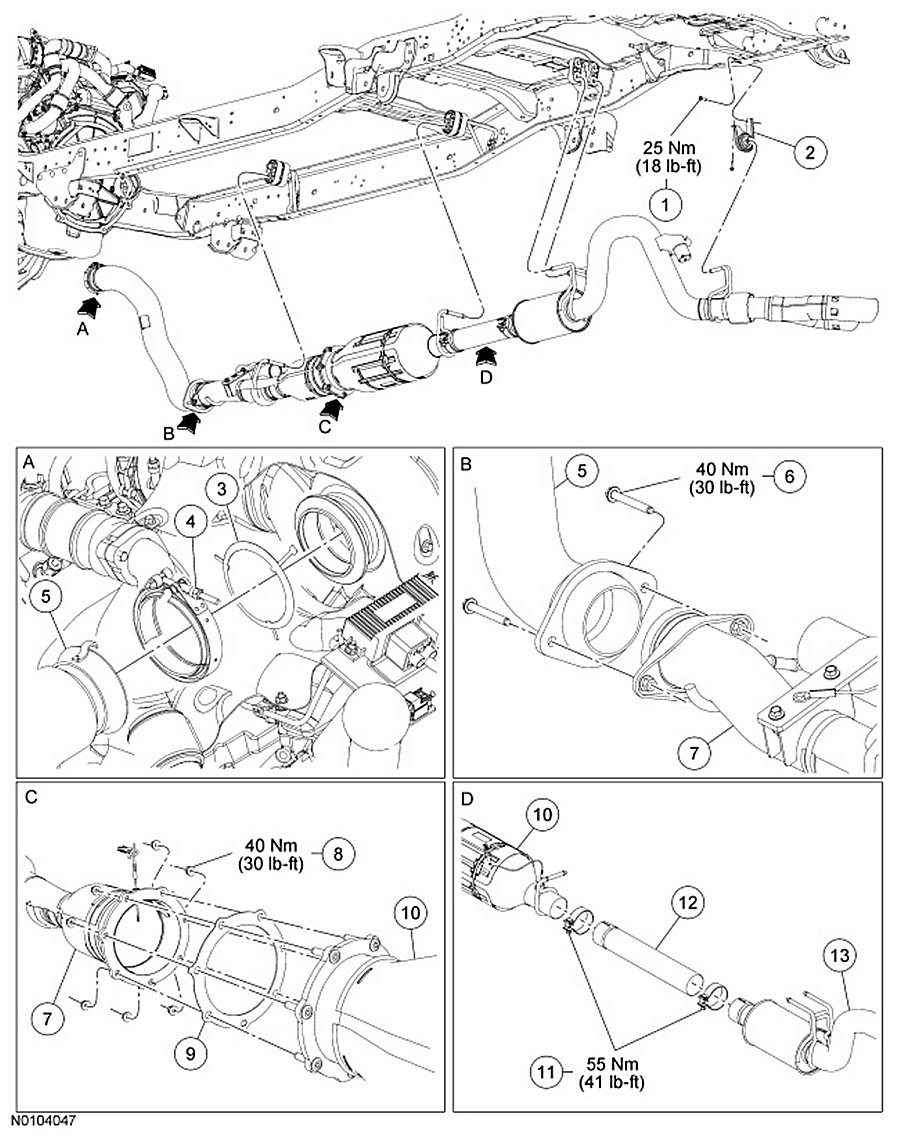

Exhaust System - Exploded View

Exhaust System - Exploded View

6.4L Diesel Engine

NOTE: Exhaust systems will vary by wheelbase, frames will vary by width and length.
NOTE: Vehicle body removed from art for clarity.

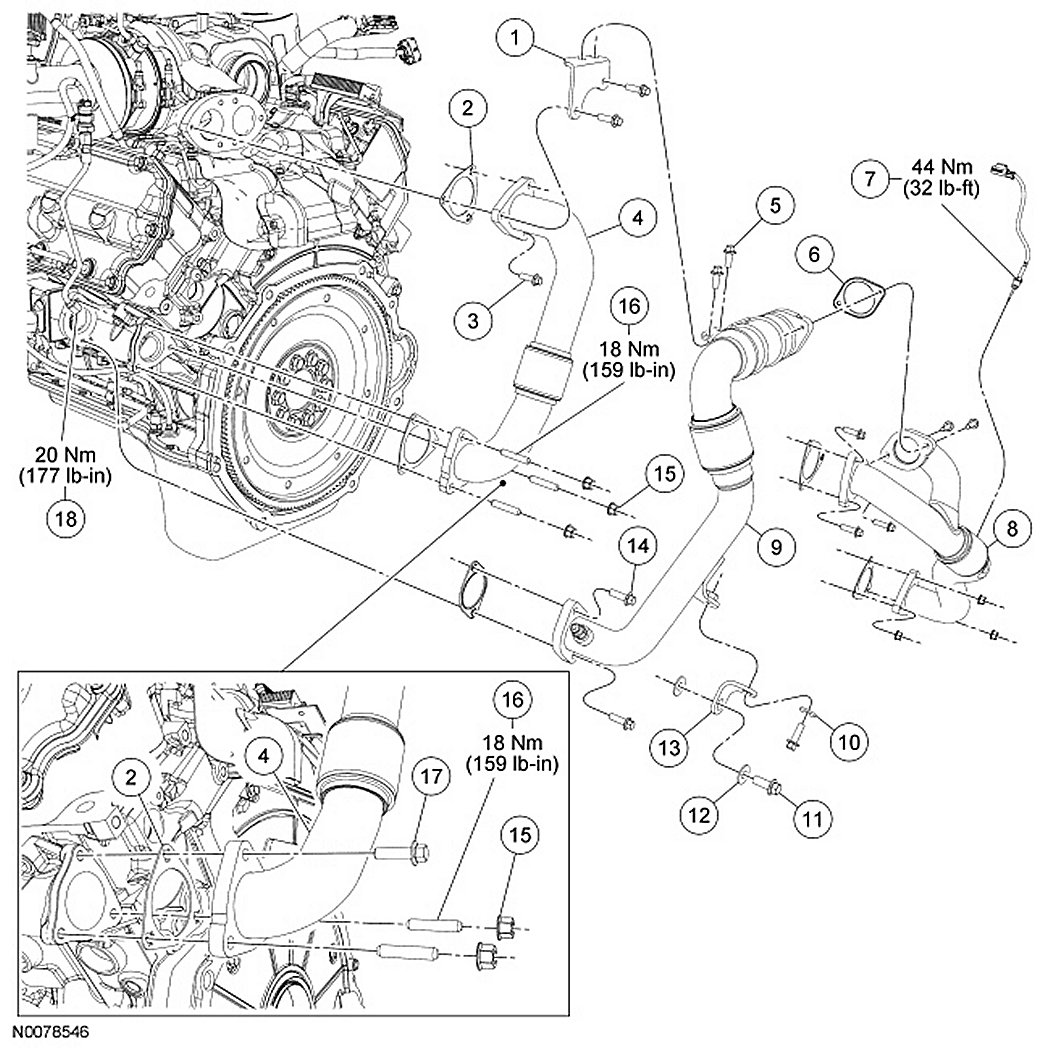

Turbocharger Inlet Pipes and EGR-Oxidation Catalytic Converter (OC) Pipe - 6.4L Diesel

NOTE: Vehicle body removed from art for clarity.

1. For additional information, refer to the procedures in this section.
