Remote Control: Service and Repair

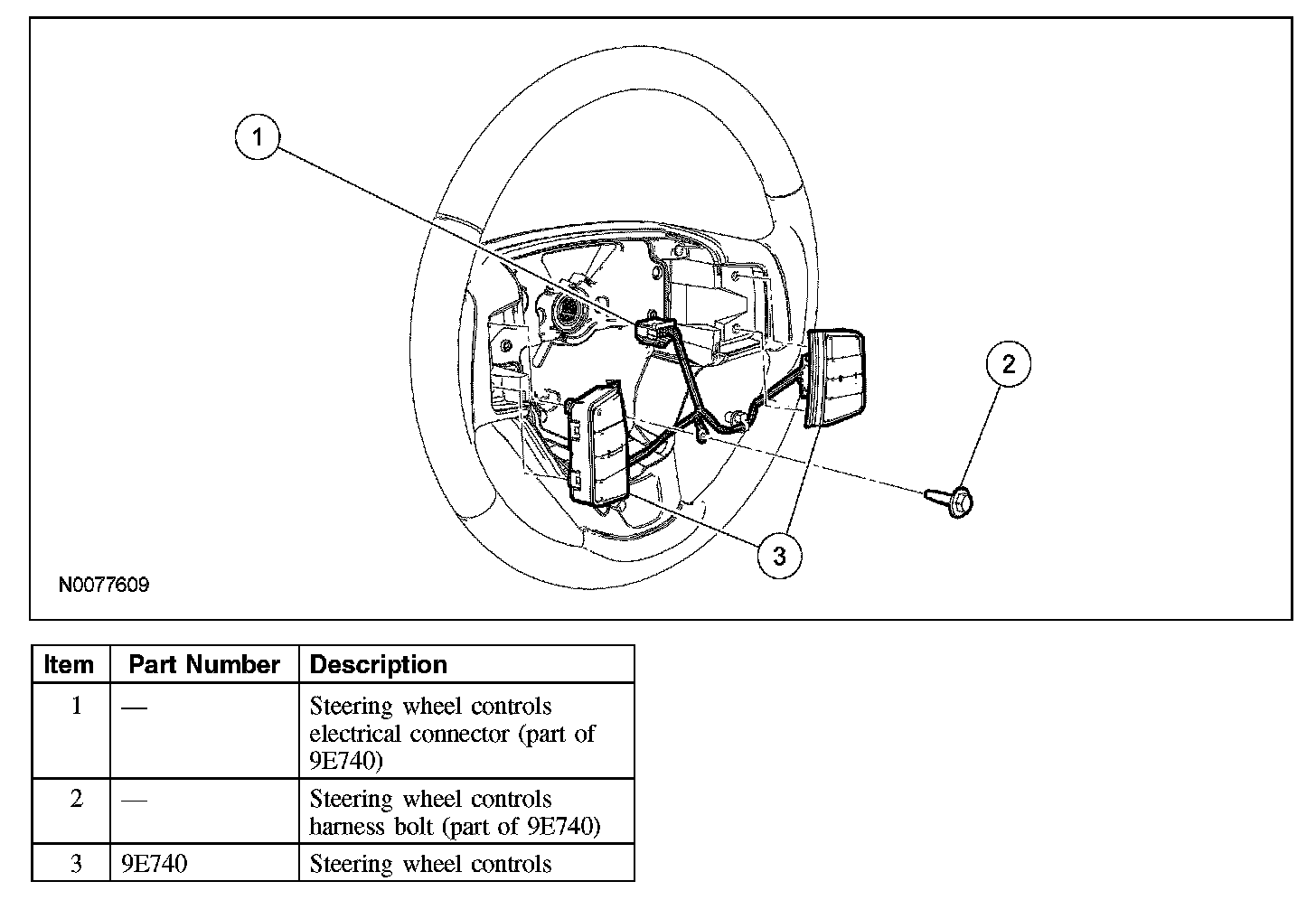

STEERING WHEEL CONTROLS







Removal and Installation
1. Remove the driver air bag module.
2. Remove the steering wheel controls harness bolt.
3. Disconnect the electrical connector and remove the steering wheel controls.
- Pull straight back to disengage the retainers.

4. To install, reverse the removal procedure.
